Honeywell 70119173

B00DWIADZ4

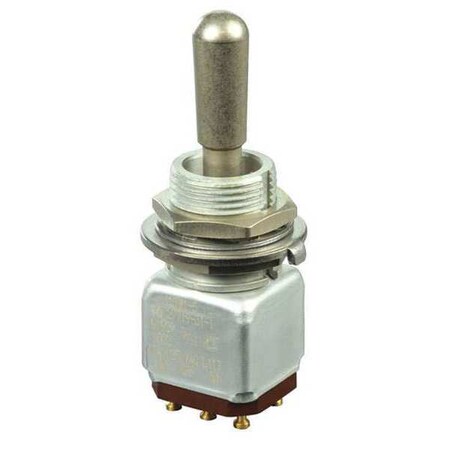

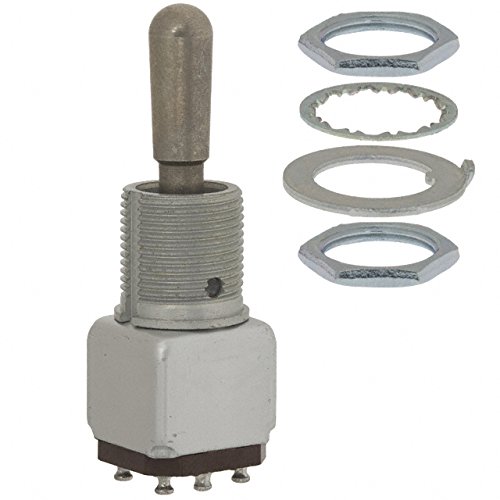

"Honeywell 12TW1-5 Switch, Toggle, 2 Pole, 3 Position, Solder Terminals, On(mom)-Off-On"

"Honeywell 12TW1-5 Switch, Toggle, 2 Pole, 3 Position, Solder Terminals, On(mom)-Off-On"zoom

Attributes

Key Value
AC Contact Rating5A @ 120V AC
AC contacts rating @R5A / 115V AC
Actuator ColorSilver
Actuator Length0.68 in, 17.27mm
Actuator Material-
Actuator StyleStandard Lever
Actuator TypeStandard Round, Bat
Amps5A @ 125VAC, 5A @ 30VAC
ASINB005TA0ZEM
Base Product Number12TW1
Batteries Included?No
Batteries Required?No
Body dimensions14.6x13.6x18.8mm
Body StyleMiniature
Bushing Thread15/32-32
CategorySwitches
CertificationUl
CircuitDPDT
Contact FormDPDT
Contacts configurationDP3T
Country of Origin (subj.United States
Current Rating5 A
Current Rating (Amps)5A (AC)
DC Contact Rating5A @ 28V DC
DC contacts rating @R5A / 30V DC
DescriptionSWITCH TOGGLE DPDT 5A 1.
Detailed DescriptionToggle Switch DPDT Pane.
Digi-Key Part Number480-2275-ND
Electrical Life-
Electrical life20000 cycles
Features-
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
IncludesThermoset Phenolic Case
Ingress ProtectionEnvironment Sealed
ItemToggle Switch
Item model number12TW1-5
Item Package Quantity1
Kind of toggleround
Knob height17.27mm
Leadsfor soldering
ManufacturerHONEYWELL, Honeywell Se.
Manufacturer Product Nu.12TW1-5
Manufacturer seriesTW
Manufacturer Standard L.14 Weeks
Maximum Operating Tempe.+71 ?C
MfrHoneywell Sensing and P.
Minimum Operating Tempe.-65 ?C
Mountingon panel
Mounting Hole0.50 in dia
Mounting TypePanel Mount
National Stock Number5930-00-406-9902
Number of Connections6
Number of Poles2
Number of Positions3
Number of positions3
Operating Temp. Range-85 Degrees to 160 Deg.
Operating Temperature-65?C ~ 71?C
Operating temperature-65...71?C
Operation(ON)-OFF-ON
PackageBulk
Panel Cutout DimensionsCircular - 12.40mm Dia
Part Number12TW1-5
Product StatusActive
Recommended UseApplications Requiring .
SeriesTW, TW Series
Special FeaturesFine Silver Contacts
Stable positions number2
StandardsUL and Military Qualifi.
Stem ColorSilver
Stem Dia. and Thread Si.0.240 in
Stem Length0.47 in
Switch FunctionMomentary On/Maintained.
Switching method(ON)-OFF-ON
TerminalsSolder
TerminationSolder Lugs
Termination StyleSolder Turret
TypeToggle
Type of switchToggle
Voltage Rating115 V
Voltage Rating - AC125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com12TW1-533.141370HONEYWELL33.14 @ 1
thumbzoomCarlton Bates Company7845496701342.171In StockHONEYWELL42.17 @ 1
thumbzoomsustainablesupply.comC117559847.761In StockHoneywell47.76 @ 1
AmazonTPB00DWIADZ448.771In Stock2HONEYWELL48.77 @ 1
AmazonUNKB00DWIADZ448.771In StockHONEYWELL48.77 @ 1
AmazonSCB005TA0ZEM53.781In StockHoneywell0.0453.78 @ 1
thumbzoomRadwell12TW1-560.020In StockHONEYWELL MICROSWITCH60.0 @ 20
thumbzoomNewark91B555660.050In StockHONEYWELL60.0 @ 50
thumbzoomZoroG473079260.4820In Stock25Honeywell0.0160.48 @ 20
thumbzoomDigi-Key124880565.041In StockHoneywell Sensing and Productivity Solutions65.04 @ 1
TME12TW1-575.1110In StockHONEYWELL75.11 @ 10
us.rs-online.com7011917396.591415Honeywell96.59 @ 1
thumbzoomkempstoncontrols.co.uk12TW1-54453.75711In StockHoneywell4453.7571 @ 1
