Hubbell Wiring Device-Kellems BR20GRYTR

B0078RYJV4

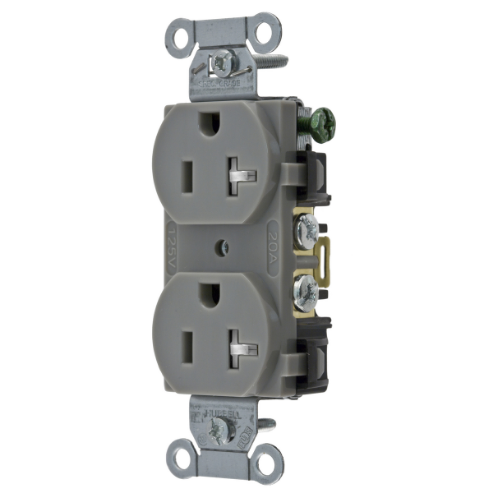

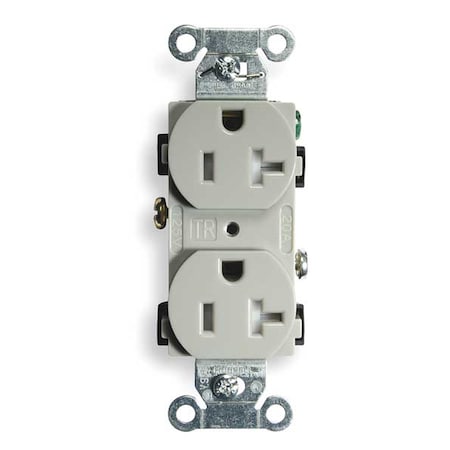

Receptacle, Duplex, 20A, 5-20R, 125V, Gray

Receptacle, Duplex, 20A, 5-20R, 125V, Grayzoom

Attributes

Key Value
Accessory Group-
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage20 A
Amperage Rating20A
Amps20
Amps - Plugs and Recep.20
Amps - Plugs and Recept.20 A
ApplicationCommercial Specificatio.
Application EnvironmentCommercial
ApprovalsCSA, UL
AWG Range#12 AWG to #10 AWG
Boot Code-
ColorGray
Color - Plugs and Recep.Gray
Color FamilyGray
CommentsCommercial Specificatio.
Connection OrientationStraight
ConnectivityBack and Side Wired
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginCN - China
Country of Origin (subj.China
Cover TypeNo Cover
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
DescriptionGrounding, Smooth
Dielectric strengthWithstands 2,000V minim.
Dimensions1.32 in x 1.47 in x 3.2.
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Face Plate Height2.73 in
Face Plate Width1.32 in
Family SeriesHubbell Plugs & Recepta.
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeFederal Specification
Gross Weight0.15 lbs
GroundGrounding
GroundingGrounded
Height3.28 in., 3.28 in
Horsepower Rating1 hp
Housing ColorGray
Housing ColourGray
Housing MaterialNylon
HP1, 1 hp
IncludesGrounding Staple, Mount.
Includes Mounting Hardw.Yes
Isolated GroundNo
ItemReceptacle
Item - Plugs and Recept.Receptacle
Item NumberBR20GRYTR
Key Resistance Properti.Tamper Resistant
Length1.32 in, 1.32 in.
ManufacturerHubbell
Manufacturer Part NumberBR20GRYTR
MarketCommercial, Industrial
MaterialNylon
Material - mounting har.Screw Mounting
Max HP1
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size12 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
Mounting TypeFlush
Mounting Type - Plugs a.Flush
Multimedia OutletNo
NEMA Configuration5-20, 5-15R
NEMA Enclosure Rating1
Nema Rating5-20R
NEMA Receptacle Configu.5-20R
NEMA Receptacle Configu.5-20R
Net Weight0 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number of poles2-Pole
Number of Poles2
Number of Poles & Wires2 Pole / 3 Wire
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Outlet TypeDuplex
Outlet Type - Plugs and.Standard Duplex
Overall Depth3.28 in
Phase1, Single, Single phase
PolarizedYes
Power IndicatorNo
Primary Resistance Prop.Tamper Resistant - Tamp.
Product TypeReceptacle
Rated Voltage125V
Receptacle TypeDuplex
Resistance PropertiesTamper Resistant
ShroudedNo
StandardCertified to CSA C22.2,.
StandardsCSA Certified C22.2, NE.
StyleSmooth Face
Sub-CategoryDuplex Receptacles
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantYes
TypeDuplex, Tamper-Resistant
UL 94 Flammability Rati.V-2
UNSPSC39121406
USBNo
Voltage125VAC, 125 V, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC
Voltage rating descript.125 V
Wattage2500 W
Weather ResistantNo
Weather Resistant - Plu.No
Width1.47 in.
Width (in)1.47
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire size#12 AWG to #10 AWG
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Graybar251721487.35841152Hubbell Wiring Device - Kellems7.3584 @ 1
thumbzoomRadwellBR20GRYTR7.971In StockHUBBELL7.97 @ 1
thumbzoomZoroG12903268.131In StockHubbell1.98.13 @ 1
Onlinecomponents.comBR20GRYTR8.591In StockHubbell8.59 @ 1
thumbzoomMRO Supply10153259.434In StockHubbell Wiring9.43 @ 4
thumbzoomGalcoBR20GRYTR-HBBL9.711In StockHubbell0.159.71 @ 1
kirbyrisk.com224827810.131In StockHubbell10.13 @ 1
steinerelectric.com45001410.351In StockHubbell Wiring Device-Kellems10.35 @ 1
Grainger2HDZ811.921700HUBBELL WIRING DEVICE-KELLEMS11.92 @ 1
thumbzoomsustainablesupply.comC118025912.231In StockHubbell0.1712.23 @ 1
grainger.caWWG2HDZ812.7016051In StockHUBBELL WIRING DEVICE-KELLEMS0.1712.701605 @ 1
Newark84M897915.651In StockHUBBELL WIRING DEVICES15.65 @ 1
thumbzoomRaptor SuppliesAC2AKB19.87765651In StockHUBBELL WIRING DEVICE-KELLEMS19.8776565 @ 1
thumbzoomNational Supply Network8602002122.281In StockHubbell Wiring Device-Kellems22.28 @ 1
thumbzoombscsource.comBR20GRYTR22.891In StockHubbell Wiring Device-Kellems22.89 @ 1
