- mpnLEH153M2-2
- brandname: LIBERTY PUMPS
- manufacturername: LIBERTY PUMPS

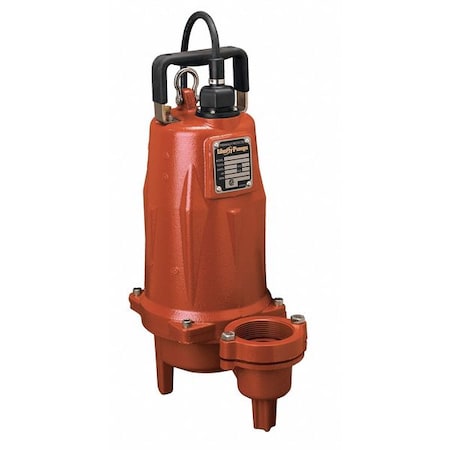

1.5 HP, Sewage pump, 3 PH, 208-230V, 25' Cord, 2" Discharge, Manual
- PartNumber: LEH153M2-2
- PackageQuantity: 1
- Manufacturer: Liberty
Attributes
| Key | Value |
|---|
| ADA Compliant | No |
| Adjustable | No |
| Agency Compliance | UL Listed, CSA Certified |
| AMP | 15 |
| Amperage Rating | 11.4 A Full Load/61 A L. |
| Amps | 10.6 |
| Application | Commercial, Residential |
| Automatic Shut-Off | No |
| Base Diameter | 12-9/10 in |
| Base Material | Cast Iron |
| Bearing Type | Ball |
| Brand Model Compatibi. | LEH-Series Sewage Pumps |
| Built-In Grinder | No |
| Clean Bagged | No |
| Coating | Epoxy, Powder Coated |
| Collection | LEH150 Series |
| Color Finish | Black, Grey, Red |
| Color Finish Category | Reds |
| Cord Length | 25 ft., 25 ft |
| Cord Type | SEOOW 25 ft |
| Corded Cordless | Corded |
| Country of Origin (subj. | United States |
| Cover Included | No |
| CSA Certified | CSA 22.2 No. 108 |
| Description: | 1.5 HP, Sewage Pump, 3 . |
| Diameter | 12-9/10", 12-9/10 in |
| Dimensions | 13 in W x 21 in H |
| Discharge | 2 in |
| Discharge Configuration | Horizontal |
| Discharge NPT | 2" |
| Enclosure Type | NEMA 4X |
| End Connection 1 | FNPT |
| End Connections | FNPT |
| Energy Star Compliant | No |
| Fits Pipe Size | 2 in |
| Flow Rate | 200 gpm |
| Frequency Rating | 60 Hz |
| GPM of Water @ 20 Ft. o. | 200 |
| GPM of Water @ 25 Ft. o. | 185 |
| GPM of Water @ 30 Ft. o. | 170 |
| GPM of Water @ 40 Ft. o. | 132 |
| GPM of Water @ 50 Ft. o. | 78 |
| GPM of Water @ 60 Ft. o. | 28 |
| Height | 24 in, 21" |
| Horsepower | 1-1/2 hp |
| Housing Material | Cast Iron |
| HP | 1-1/2 |
| Impeller | Two Vane Semi-Open |
| Impeller Material | Cast Iron |
| Impeller Type | Cast Iron 2-Vane Semi-O. |
| Installation Type | Freestanding |
| ISO Specifications | ISO 9001 |
| Item | Submersible Sewage Pump |
| Length | 14-1/4 in |
| MA Approved | Yes |
| Manufacturer | Liberty Pumps Inc |
| Manufacturers Warranty . | 2 yr. Limited |
| Material | Cast Iron |
| Max. Dia. Solids | 2" |
| Max. Head | 70 ft. |
| Max. Liquid Temp. | 140 Degrees F |
| Maximum Feet of Head | 70 |
| Maximum Head | 70 ft |
| Maximum Temperature | 104 |
| MFG Part #: | LEH153M2-2 |
| Motor RPM | 3450 |
| Motor Speed | 3450 rpm |
| Motor Type | 3-Phase |
| NSF Certified | No |
| Origin | Domestic |
| Outlet Size | 2 in Flanged |
| Phase | 3, 3 ph, Three Phase |
| Power Source | Electric |
| Product Type | Pump |
| Pump Application | Sewage |
| Pump Body Material | Cast Iron |
| Pump Motor Type | Thermally Protected |
| Pump Mounting | Free Standing |
| Pump Phase | 3 |
| Pump Stage | 1 |
| Pump Type | Manual |
| RPM | 3450 |
| Series | LEH150 |
| Service Factor | 1 |
| Shaft Seal | Silicon Carbide/Double . |
| Supplier: | Liberty Pumps Inc |
| Switch Type | Float |
| Temperature Rating | 104 |
| Thermal Protection | Yes |
| Type | High-Head Manual |
| UL Listed | UL 778 |
| UPC: | 671812131765 |
| VAC at 60 Hz | 230 |
| Voltage | 208 to 230 |
| Volts | 208/230V |
| Weight | 64 |
| Width | 9-3/4 in |
