Marathon Electric K1418

B004X26AB4

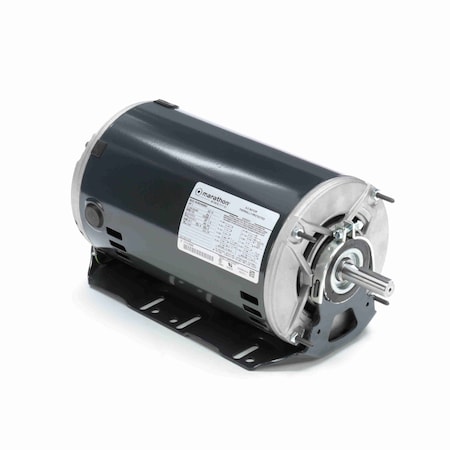

Marathon K1418 56H Frame 5K49UN4086X Open Drip Proof Belt Drive Motor, 3 Phase, Resilient Ring Mount, Ball Bearing, 2 hp, 1800 RPM, 1 Speed, 208-230/460 VAC

Marathon K1418 56H Frame 5K49UN4086X Open Drip Proof Belt Drive Motor, 3 Phase, Resilient Ring Mount, Ball Bearing, 2 hp, 1800 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.5K49UN4086X
Amps6.2-6.0,3.0, 6.2-6.0/3.0
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension13.96 (in.)
Catalog NumberK1418
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.818
Efficiency %81.8 %
Electrical TypeThree Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame56H
Frame MaterialRolled Steel
Frame Type56H
Frequency60, 60 Hz
Gross Weight40 lbs
Horsepower2 hp
HP2
Hz60
Insulation ClassB
IP Code-
Item NumberK1418
Kilowatts1.5 kW
KVA CodeK
ManufacturerMarathon Electric
Manufacturer Model #5K49UN4086X
Manufacturer Part Number5K49UN4086X
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor OrientationAny
Motor Shell Length9.63"
MountingBase
Mounting OrientationAny
Mounting TypeResilient Base
NEMA Frame56H
Net Weight40 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length13.96", 13.96 "
Phase3
Product CategoryHVAC/R Motors > Fan an.
Product TypeThree Phase
RotationCounterclockwise/Clockw.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.15
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension1.88 (in.)
Shaft Length1.88"
Shaft Type-
Ship Weight39 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.AUTO
ULRecognized
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460, 208-230/.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB004X26AB4331.081In Stock2Marathon Electric331.08 @ 1
thumbzoomktool.netK1418379.131In StockMarathon Motors379.13 @ 1
thumbzoomapexindustrialautomation.comK1418396.53126Marathon396.53 @ 1
thumbzoomGalcoK1418-MARA406.961In StockMarathon Electric40.0406.96 @ 1
thumbzoomemotorpro.comK1418440.11In StockMarathon39.0440.1 @ 1
us.rs-online.com73430838458.41In StockMarathon Motors458.4 @ 1
thumbzoommidwestapplianceparts.comK1418-MT-P467.014Marathon467.0 @ 1
thumbzoomMRO Supply2269723480.161In StockMarathon Electric480.16 @ 1
thumbzoomNational Supply NetworkB871851480.341In StockMARATHON MOTORS480.34 @ 1
thumbzoomDreisilkerMA-RBC-K1418499.621In StockMarathon499.62 @ 1
thumbzoomZoroG2530531500.991In Stock10Marathon500.99 @ 1
thumbzoomindustrialstores.comK1418504.4913Marathon Motors504.49 @ 1
thumbzoomGuardianMARSK1418615.731In StockMarathon615.73 @ 1
