Marathon Electric X211

B0042GEXD8

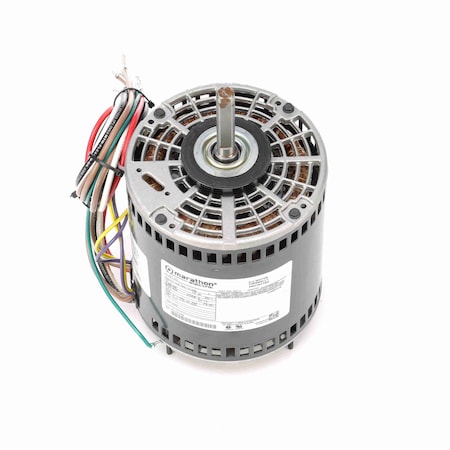

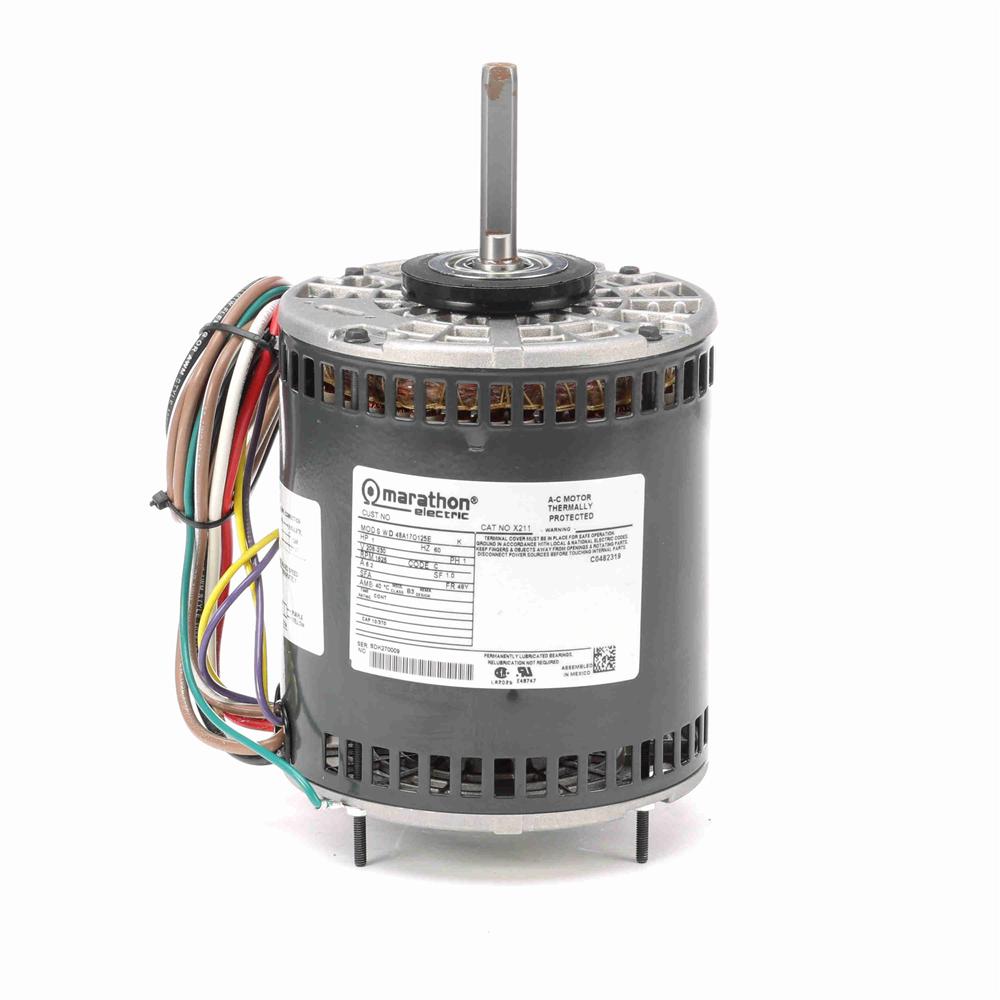

Marathon X211 48Y Frame Open Air Over 48A17O125 Direct Drive Motor 1 hp, 1625 RPM, 208-230 VAC, 1 Phase, 2 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X211 48Y Frame Open Air Over 48A17O125 Direct Drive Motor 1 hp, 1625 RPM, 208-230 VAC, 1 Phase, 2 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A17O125
Amps6.2
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.75 (in.) (in.)
Capacitor10MFD/370VAC Required
Catalog NumberX211
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X211
DutyContinous
Duty CycleContinuous
Efficiency0.658
Efficiency %64 %
Electrical TypePermanent Split Capacit.
EnclosureOpen Enclosed, OPEN
Enclosure MaterialSteel
Enclosure TypeOpen Enclosed, OAO (Ope.
Family SeriesMarathon Electric Motors
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1 hp
HP1
Hz60
Insulation ClassB
IP Code01
Item NumberX211
Kilowatts0.75 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #048A17O125
Manufacturer Part Number048A17O125
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length5.75"
MountingBand
Mounting OrientationHorizontal
Mounting TypeRound Belly Band
Net Weight20 lbs
Number of Poles4
Number of Speeds2
ODE Bearing TypeBall
Overall Length9.75", 9.75 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1,625 RPM, 1625
RPM (Nameplate)1625
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension2.56 (in.) (in.)
Shaft Length2.56"
Shaft TypeSingle Special Extension
Ship Weight20 lbs.
Speeds2
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage208-230
Voltage (AC)208-230 VAC
Volts208-230, 230, 208

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX211202.01In StockMARATHON202.0 @ 1
thumbzoomapexindustrialautomation.comX211278.68128Marathon278.68 @ 1
thumbzoomGalcoX211-MARA286.011In StockMarathon Electric20.0286.01 @ 1
thumbzoomMRO Supply2269576289.41In StockMarathon Electric289.4 @ 1
cshincorporated.comMX211291.011In StockMarathon20.0291.01 @ 1
us.rs-online.com72650112322.161In StockMarathon Motors322.16 @ 1
thumbzoomZoroG2530428348.351In Stock10Marathon348.35 @ 1
thumbzoomDreisilkerMA-RBC-X211353.431In StockMarathon353.43 @ 1
thumbzoomemotorpro.comX211354.01In StockMarathon20.0354.0 @ 1
thumbzoommidwestapplianceparts.comX211-MT-P363.991In StockMarathon363.99 @ 1
thumbzoomGlobal IndustrialWBB868771365.951In StockMarathon Motors365.95 @ 1
thumbzoomNational Supply NetworkB868771370.451In StockMARATHON MOTORS370.45 @ 1
thumbzoomindustrialstores.comX211393.21In Stock10Marathon Motors393.2 @ 1
thumbzoomGuardianMARSX211444.461In StockMarathon444.46 @ 1
ptacsolutions.comX211449.4411Marathon Motors449.44 @ 1
