Marathon Electric Y982

B0042GHP7Y

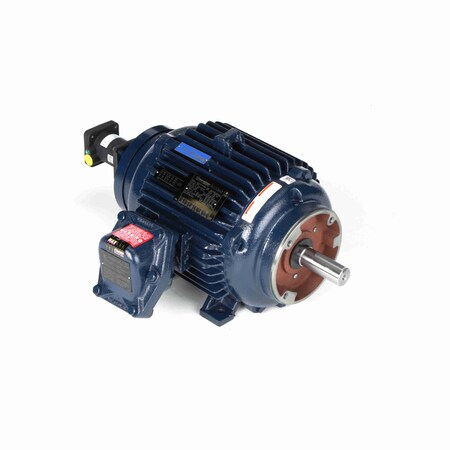

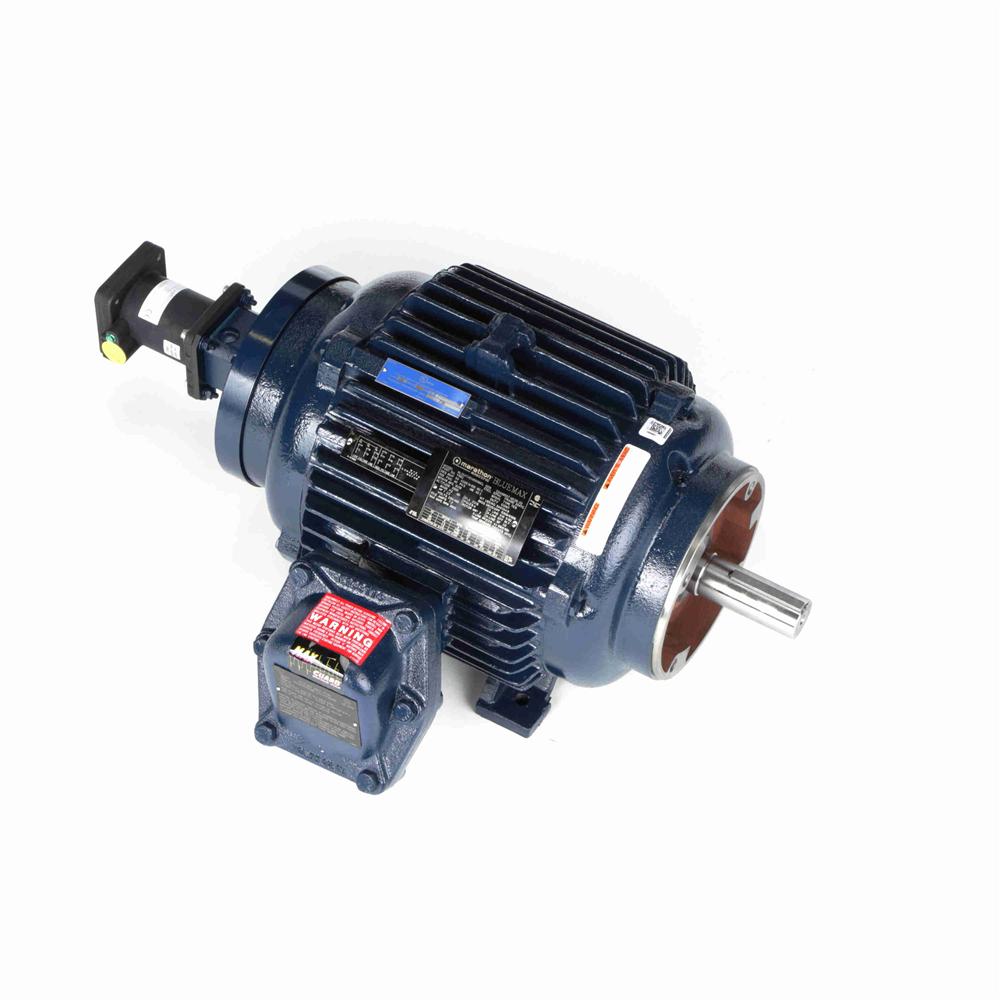

Marathon Y982 Inverter Duty Motor

Marathon Y982 Inverter Duty Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.254THEN8058
Amps22/11
ApprovalsCSA, UL
Bearing TypeBall
bearing type:Ball Bearing
BearingsBall
Class/GroupClass I and II Group C,.
CompositionCast Iron
Country of Origin (subj.United States
CT Speed Range2000:1
Duty CycleContinuous
Efficiency0.917
EnclosureExplosion Proof Non-Ven.
Enclosure MaterialIron
Enclosure TypeEPNV (Explosion Proof N.
enclosure type:XPNV (Explosion Proof N.
Family SeriesMarathon Electric Motor.
Frame254TC
frame material:Cast Iron
frame size:254TC
frequency rating:60 Hz
full load current:22.00 / 11.00 A
full load efficiency:91.70 %
Gross Weight0 lbs
Horsepower7-1/2 hp
HP7 1/2, 7-1/2
Hz60
Insulation ClassF
insulation class:H
Inverter DutyYes
ip rating:54
Item NumberY982
ManufacturerMarathon Electric
Manufacturer Model #254THEN8058
Manufacturer Part Number254THEN8058
Maximum Ambient Tempera.40? C
Model Number254THEN8058
motor category:Vector Drive Motor - Ex.
motor horsepower:7.50 hp, 7-1/2 hp
motor phase:3 ph
Motor Shell Length10.5"
motor supply voltage:230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeC-Face Footed
mounting type:Rigid Base/C-Face Flange
nema design class:A
Net Weight260 lbs
Number of Speeds1
Overall Length30.2", 30.2 "
overall length (c-dimen.30.20 in
Overload ProtectionThermostat
Phase3
Product SeriesHIGH PERFORMANCE INVERT.
Product TypeThree Phase
RotationReversible
RPM1780, 1,800 RPM, 1800
Service Factor1
service factor:1.00
Shaft Diameter1-5/8"
shaft diameter:1.63 in
Shaft Length3.75"
Ship Weight344 lbs.
standards met:UL, CSA
synchronous rpm:1800 rpm
thermal protection:Thermostat
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460
warranty:3 Year Warranty
weight:344 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comY9824779.01In StockMARATHON4779.0 @ 1
thumbzoomMRO Supply22703046710.561In StockMarathon Electric6710.56 @ 1
thumbzoomapexindustrialautomation.comY9827605.31114Marathon7605.31 @ 1
thumbzoomGalcoY982-MARA7605.311In StockMarathon Electric260.07605.31 @ 1
thumbzoommotionindustries.com047382967782.521In StockMarathon Electric7782.52 @ 1
thumbzoomemotorpro.comY9828199.481In StockMarathon344.08199.48 @ 1
thumbzoomZoroG25304528739.221In StockMarathon8739.22 @ 1
us.rs-online.com734323988775.351In StockMarathon Motors8775.35 @ 1
thumbzoomGlobal IndustrialWBB8684418786.01In Stock17Marathon Motors8786.0 @ 1
thumbzoomNational Supply NetworkB8684419390.191In StockMARATHON MOTORS9390.19 @ 1
thumbzoomcbtcompany.comY98210027.01In StockMarathon Electric Motors10027.0 @ 1
