MEAN WELL RS-150-24

B005T6GZ9A

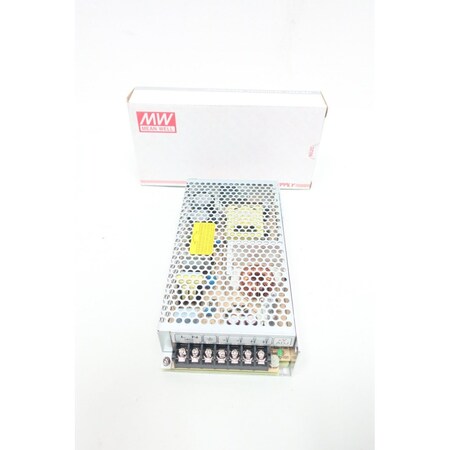

MEAN WELL RS-150-24 RS-150 Series 156 W Single Output 24 V AC/DC Switching Power Supply - 1 item(s)

MEAN WELL RS-150-24 RS-150 Series 156 W Single Output 24 V AC/DC Switching Power Supply - 1 item(s)zoom

Attributes

Key Value
AC Current (Typ.)3A /115VAC 2A/230VAC
AC inrush current (max.)40A at 230VAC
ApplicationsITE (Commercial)
Approval AgencyCB, CE, cURus, TUV
Base Product NumberRS-150
CategoryPower Supplies - Extern.
ConfigurationEnclosed, Cover Attached
Country of Origin (subj.Unknown
Current - Output (Max)6.5A
Current - Output 16.5 A
Dimension199 x 98 x 38mm (LxWxH)
Dimension (LxWxH)199x 98x 38
Dimensions7.83 L x 3.86 W x 1.50 .
Efficiency86%
Efficiency (Typ.)74%
EMC ImmunityCompliance to EN61000-4.
EMC standardsEN55022 class B, EN6100.
FeaturesAdjustable Output
Industry Aliasesnew
Input Output Terminal S.Screw
Input Voltage88~132VAC / 176~264VAC .
Input Voltage Range88-132/176-264 VAC
Inrush Current (Typ.)COLD START 40A/230VAC
Isolation ResistanceI/P - O/P, I/P-FG, O/P-.
Lead Free Status / RoHS.RoHS Compliant
Leakage Current (Typ.)<2mA / 240VAC
Manufacturer Part NumberRS-150-24
Manufacturer Standard L.10 Weeks
MfrMEAN WELL USA Inc.
Minimum Load RequiredNo
Mounting TypePanel Mount, Chassis Mo.
MTBF244Khrs min. MIL-HDBK-2.
Number of Outputs1
Operating Temperature-25, -25?C ~ 70?C (With.
OperationSwitching
Output Current6.5 A
Output Power156 W
Output Rated Current6.5A
Output Voltage24V, 24 VDC
Over Voltage3.8 ~ 4.45V
Overload protection110%~150% hiccup mode, .
PackageBox
Packing20pcs /15kg, 0.7Kg; 20p.
Power (Watts)156W
Primary TypeAC-DC
Product StatusActive
SeriesRS Series, RS-150, RS-1.
Setup, Rise Time800ms, 20ms/230VAC .
Size / Dimension7.83" L x 3.86" W x 1.5.
Special Features3 Year Warranty
Standard Package1
Storage Temp., Humidity-40 ~ +85?C, 10 ~ 95% RH
Temp. Coefficient?0.03%/?C (0 ~ 50?C)
TypeEnclosed, Embedded
Vibration10~500Hz, 5G 10min. /1 .
Voltage - Input88 ~ 132 VAC, 176 ~ 264.
Voltage - Isolation3 kV, 3kV
Voltage - Output 124V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 6-
Wattage150
Withstand voltageI/P - O/P: 3kVAC, I/P -.
Withstand VoltageI/P - O/P : 3KVAC .
Working Humidity20 ~ 90% RH non-condens.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comRS-150-2423.41368MEAN WELL23.4 @ 1
Sager ElectronicsRS-150-2424.71297Mean Well24.7 @ 1
thumbzoompowersupplymall.comRS-150-2426.6911985Mean Well26.69 @ 1
iodPartsRS-150-2426.9910380MEAN WELL26.99 @ 10
thumbzoompeaktopeakpower.comRS-150-2431.421In StockMean Well31.42 @ 1
thumbzoomTMERS-150-2432.1311060MEAN WELL32.13 @ 1
electricautomationnetwork.comRS-150-2434.321In StockMEANWELL34.32 @ 1
thumbzoomJameco32385534.441In StockMEAN WELL34.44 @ 1
us.rs-online.com7006957435.8811246MEAN WELL35.88 @ 1
Digi-Key770617137.5131In StockMEAN WELL USA Inc.37.513 @ 1
AmazonTPB005T6GZ9A40.771In Stock5MEAN WELL40.77 @ 1
RS Delivers621-068543.0921992Mean Well43.092 @ 1
thumbzoomNewark80AK521747.581In StockMEAN WELL47.58 @ 1
thumbzoomkempstoncontrols.co.ukRS-150-2453.0964721In StockMeanwell53.096472 @ 1
thumbzoomZoroG60565856654.171In StockMean Well54.17 @ 1
thumbzoomMisumi USARS-150-2475.31In StockMean Well75.3 @ 1
