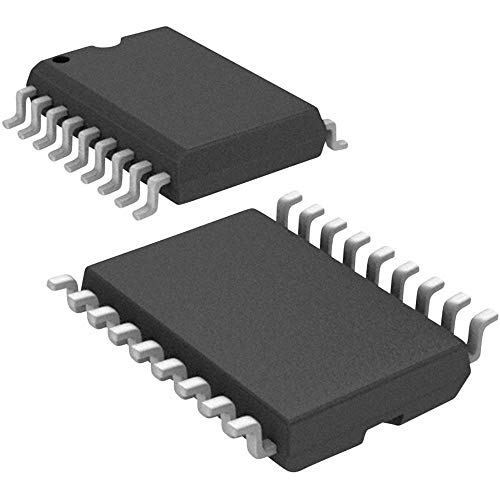

MICROCHIP TECHNOLOGY PIC16C54C-20/SO

B00AZV4JGK

8-bit Microcontrollers - MCU .75KB 25 RAM 12 I/O 20MHz SOIC18 (1 piece)

8-bit Microcontrollers - MCU .75KB 25 RAM 12 I/O 20MHz SOIC18 (1 piece)zoom

Attributes

Key Value
A/D Bit SizeNo ADC
Alternate Part No.579-PIC16C54C20SO
Base Product NumberPIC16C54
BrandMicrochip Technology
CategoryIntegrated Circuits (IC.
Connectivity-
CorePIC
Core ProcessorPIC
Core Size8-Bit
Data Bus Width8 bit
Data Converters-
Data RAM Size25 B
Data ROM Size512 B
Data ROM TypeEPROM
EEPROM Size-
ManufacturerMicrochip
Manufacturer Part No.PIC16C54C-20/SO
Maximum Clock Frequency40 MHz
Maximum Operating Tempe.+ 70 C
MfrMicrochip Technology
Minimum Operating Tempe.0 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of I/O12
Number of I/Os12 I/O
Number of Timers1 Timer
On-Chip ADCNo
Operating Supply Voltage2.5 V to 5.5 V
Operating Temperature0?C ~ 70?C (TA)
Oscillator TypeExternal
PackageTube
Package / Case18-SOIC (0.295", 7.50mm.
Package/CaseSOIC-18
PackagingTube
Part StatusActive
PeripheralsPOR, WDT
Processor SeriesPIC16
Product Category8-bit Microcontrollers .
Program Memory Size768B (512 x 12), 512 B
Program Memory TypeOTP, EPROM
RAM Size25 x 8
SeriesPIC16, PIC? 16C
Speed20MHz
Supplier Device Package18-SOIC
Supply Voltage - Max5.5 V
Supply Voltage - Min4.5 V
Voltage - Supply (Vcc/V.3V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark96K37882.2329410MICROCHIP2.23 @ 294
RadwellPIC16C54C20SO2.25110MICROCHIP TECHNOLOGY INC2.25 @ 10
Digi-Key2734682.44110Microchip Technology2.44 @ 10
thumbzoomswatee.comPIC16C54C-20/SO3.291In StockMicrochip3.29 @ 10
