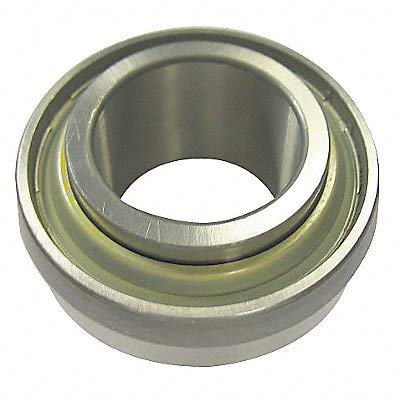

NTN DS214TTR5

B017UJQJ8K

NTN DS214TTR5 , DISC HARROW , 4547359470383 UPC

NTN DS214TTR5 , DISC HARROW , 4547359470383 UPCzoom

Attributes

Key Value
ABEC Tolerance1
application:Agriculture Bearing
Bearing MaterialSteel
bearing material:Through Hardened Steel
Bearing TypeRound Bore, Spherical O.
Bore Dia.2.7559 in
Bore Diameter2.755 in
Bore ShapeRound
Bore Size2.755 in
Bore Size Tolerance+/-0.02 in
Bore Tolerance+/-0.02 in
bore type:Round
CageSteel
Cage MaterialSteel
cage material:Steel
closure type:Double Seal
Dynamic Load Capacity14,000 lb
dynamic load capacity:13900 lbf
EnclosureDouble sealed
fillet radius:0.0787 in
finish/coating:Uncoated
Flange SizeNot Applicable
For Shaft Size2 3/4 in
inner ring width:2.4380 in
internal clearance:CN
ItemAgricultural Disc Beari.
LubricationShell Alvania #3
MaterialThrough Hardened Steel
Max. RPM340 RPM
operating temperature r.-40 to 250
outer ring width:1.5620 in
Outside Dia.4.9213 in
Outside Dia. Tolerance+0/-0.0007 in
Outside Diameter4.921 in
outside diameter design:Spherical
Overall Width2.438 in
precision rating:Class 0
row type & fill slot:Single Row Non-Fill Slot
Seal MaterialNitrile Rubber
series:DS200
Static Load Capacity9,900 lb
static load capacity:9900 lbf
Temp. Range-13 Degrees to 250 Deg.
Width2.438 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com03736227240.681In StockNTN240.68 @ 1
thumbzoomZoroG1898294248.991In StockNtn4.4248.99 @ 1
AmazonSCB017UJQJ8K275.051In StockNTN275.05 @ 1
thumbzoomsustainablesupply.comC2908664317.271In StockNTN4.4317.27 @ 1
thumbzoomRaptor SuppliesAE2YRZ505.29919051In StockNTN505.2991905 @ 1
thumbzoomMRO Supply2757201173.481In StockNTN Bearing1173.48 @ 1
