Omron D2JW-01K31-MD

B00SDTFTFG

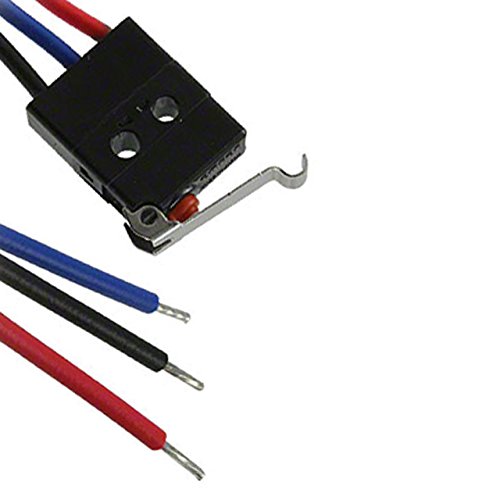

Omron D2JW-01K31-MD (1 pc) IMERSION-PROOF SWITCH

Omron D2JW-01K31-MD (1 pc) IMERSION-PROOF SWITCHzoom

Attributes

Key Value
ActuatorSimulated Roller Lever
Actuator rotational dir.-
Actuator TypeLever, Simulated Roller.
Alternate Part No.653-D2JW-01K31-MD
Body dimensions12.7x9.4x5.3mm
Body StyleUltra Subminiature
BrandOmron Electronics
Cable Length(m)-
CircuitSPDT
Contact FormSPDT
Contact TypeSingle Pole Double Throw
Contacts configurationSPDT
Current Rating100 mA, 0.1 A
Current Rating (Amps)100mA (DC)
DC contacts rating @R0.1A / 30V DC
Dielectric Strength1000 VAC
Differential Travel0.025" (0.6mm)
Electrical Life100,000 Cycles
Features-
Format standard-
Ingress ProtectionIP67 - Dust Tight, Wate.
IP RatingIP 67, IP67
IP ratingIP67
Leadsleads 300mm
Lever length15.1mm
Main Body External Dime.5.3
ManufacturerOmron, OMRON OCB
Manufacturer Part No.D2JW-01K31-MD
Manufacturer seriesD2JW
Max. contact resistance:140m?
Mechanical durability1000000 cycles
Mechanical Life1,000,000 Cycles
Mechanical Life(million.100
MfrOmron Electronics Inc-E.
Min. insulation resista.100M?
MountingPanel
Mounting formatScrew mounting
Mounting Hole SizeM2.3
Mounting TypeChassis Mount, Surface .
Number of Poles1
Number of positions2
Operating Force950mN, 97gf, 0.5 N
Operating Position0.406" (10.3mm)
Operating Temperature-40?C ~ 85?C
Operating temperature-40...85?C
OperationSnap Action
Overtravel0.045" (1.1mm)
Package Quantity1
Part # Aliases365938 9579737
Part StatusActive
Pretravel0.218" (5.5mm)
Product CategoryBasic / Snap Action Swi.
Release Force20gf
SeriesD2JW Series, D2JW
Stable positions number1
Switch FunctionON - (OFF), OFF - (ON),.
Switches featureswith lever with roller .
Switching methodON-(ON)
TerminationWire Leads
Termination StyleWire Leads
TypeBasic, Standard
Type of switchmicroswitch SNAP ACTION
Voltage Rating30 V
Voltage Rating (DC)(V)30
Voltage Rating - DC30 V
Voltage Rating DC30 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomOMRON ELECTRONIC COMPONENTS D2JW-01K31-MD9.4110130OMRON ELECTRONIC COMPONENTS9.41 @ 10
ArrowD2JW-01K31-MD9.909113Omron9.909 @ 1
Onlinecomponents.comD2JW-01K31-MD12.081417OMRON ELECTRONICS12.08 @ 1
thumbzoomkempstoncontrols.co.ukD2JW-01K31-MD12.27967651In StockOmron12.2796765 @ 1
thumbzoomMisumi USAD2JW-01K31-MD12.911In Stock15OMRON12.91 @ 1
TMED2JW-01K31-MD13.2420In StockOMRON OCB13.24 @ 20
thumbzoomNewark89C461214.1620In StockOMRON ELECTRONIC COMPONENTS14.16 @ 10
Mouser653-D2JW-01K31-MD15.73157Omron15.73 @ 1
thumbzoomRadwellD2JW01K31MD16.541In StockOMRON16.54 @ 1
thumbzoomDigi-KeySW1083-ND18.281In StockOmron Electronics Inc-EMC Div18.28 @ 1
thumbzoomswatee.comD2JW-01K31-MD19.34144Omron19.34 @ 1
us.rs-online.com7017551220.7611Omron Electronic Components20.76 @ 1
AmazonTPB005T940IK51.381In Stock2Omron Electronics51.38 @ 1
AmazonSCB005T940IK121.841In StockOmron121.84 @ 1
thumbzoomZoroG105803695152.910In StockOmron Electronic Components152.9 @ 10
