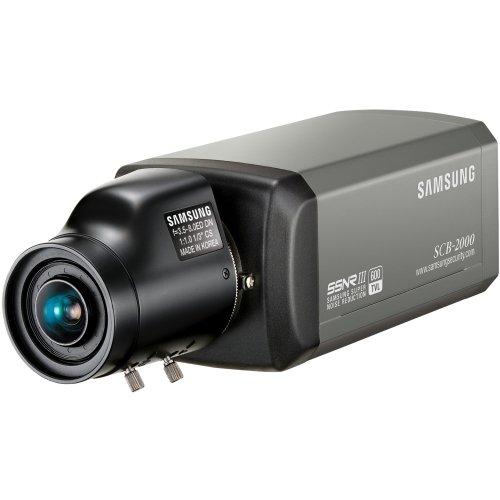

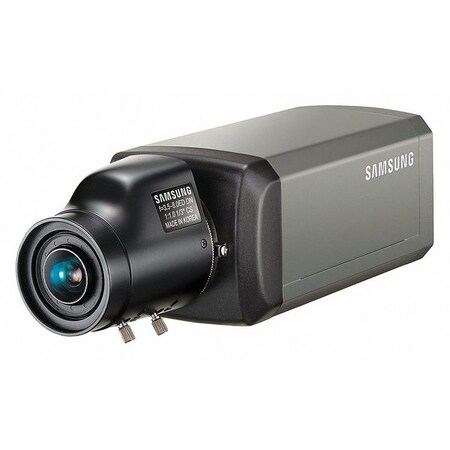

- mpnSCB-2000
- brandname: SAMSUNG
- manufacturername: SAMSUNG
1/3" W-5 600TVL CM Dual/High
- Brand: Samsung
- PartNumber: SCB-2000
- Model: SCB-2000
- PackageQuantity: 1
- Binding: Personal Computers
- Manufacturer: Samsung Techwin
- Label: Samsung Techwin
Attributes
| Key | Value |
|---|
| Auto Gain Control | Yes, Off / Low / High |
| Automatic White Balance | Yes, ATW / Outdoor / In. |
| Back Light Compensation | Yes |
| Backlight Compensation | Off / BLC / HLC |
| Camera Signal | Analog |
| Coaxitron</th> . | Yes |
| Country of Origin (subj. | China |
| Day/Night | Yes |
| Day/Night Capable | Day/Night |
| Dia. (In.) | 4-49/64 |
| Digital Noise Reduction | Yes, On / Off |
| Digital Zoom</th> . | Yes |
| Dimensions (W x H) | 58 x 52 x 121mm (2.28" . |
| Durability | Indoor |
| Electronic Shutter | NTSC: 1/60 ~ 1/120,000s. |
| Exposure Conditions | 14 Degrees to 131 Degr. |
| Features | Auto Gain Control, Auto. |
| Height (In.) | 2-3/64 |
| Illumination | Yes |
| Image Device | 1/3" Super HAD CCD II |
| Image Pixels Total</th>. | NTSC: 811(H) x 508(V), . |
| Image Pixels-Effective<. | NTSC: 768(H) x 494(V), . |
| Infrared Distance | Non Infrared |
| Item | Camera |
| Lens | Manual/Auto Iris (Video. |
| Lens Type | Not Included |
| Line Resolution | 600 |
| Manufacturer | Samsung |
| Minimum Scene Illuminat. | 0.05Lux / 0.0001Lux (F1. |
| Mirror | Yes, On / Off |
| Motion Detection | On / Off (8 programmabl. |
| Motion Detection Tracki. | Yes |
| Mount | C/CS |
| Mount Type | Ceiling, Wall |
| Operating Humidity | 30% ~ 90% RH |
| Operating Temperature | -10?C ~ +55?C (+14?F ~ . |
| OSD Menu | English, Japanese, Span. |
| Pixels | 811(H) x 508(V) 678(H) . |
| Power Consumption | 3.5W, Max. 3.5W |
| Privacy Masking | Yes |
| Privacy Zone | Off / On (12 programmab. |
| Promotion Restriction | Not eligible for promot. |
| Resolution | 600 TVL |
| S/N Ratio | 52dB (AGC off, Weight o. |
| S/N Ratio (dB) | 52 |
| Scanning | 2:1 Interlace |
| Scanning Horizontal | NTSC: 15.734KHz, PAL: 1. |
| Scanning System | 2 : 1 Interlace |
| Scanning Vertical</th> . | NTSC: 59.94H, PAL: 50Hz |
| Sensor Option | 1/3" CCD |
| Signal System | NTSC, PAL |
| SKU | SCB-2000 |
| Synchronization | Internal / Line lock |
| Type | Analog |
| Video Output | CVBS : 1.0 Vpp / 75? co. |
| Voltage | 12VDC/24VAC, 12vDC, 24v. |
| Width (In.) | 2-9/32 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | surveillance-video.com | SCB-2000 | 73.0 | 1 | In Stock | | Samsung | | 73.0 @ 1 |
 | Zoro | G8720241 | 106.63 | 1 | In Stock | 10 | Samsung | | 106.63 @ 1 |
