- mpnSCB-2001
- brandname: Samsung Security CCTV
- manufacturername: Samsung Security CCTV

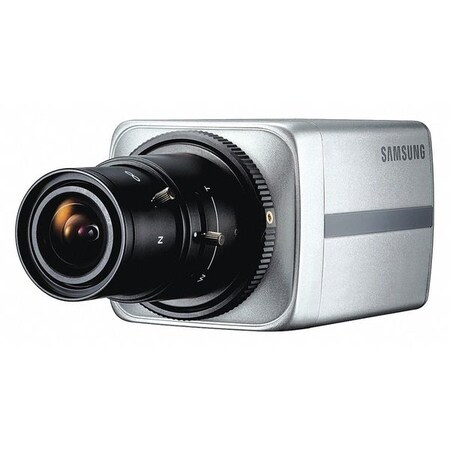

SCB-2001 600 TVL low lux box camera with SSDR and on screen display
- Brand: SAMSUNG
- PartNumber: SCB-2001
- PackageQuantity: 1
- Manufacturer: Samsung
- Label: Samsung
Attributes
| Key | Value |
|---|
| Auto Gain Control | Yes, Off / On |
| Automatic White Balance | ATW1 / ATW2 / AWC (Manu. |
| Back Light Compensation | Yes |
| Backlight Compensation | Off / On (Area setting) |
| Camera Signal | Analog |
| Coaxitron</th> . | Yes |
| Country of Origin (subj. | China |
| Day/Night | Yes |
| Day/Night Capable | Day/Night |
| Dia. (In.) | 3-15/16 |
| Digital Noise Reduction | Yes, Adaptive 3D+2D (Of. |
| Digital Zoom</th> . | Yes |
| Dimensions (W x H) | 64.0 x 58.0 x 100.0mm(2. |
| Durability | Indoor |
| Electronic Shutter | NTSC: 1/60 ~ 1/200,000s. |
| Exposure Conditions | 14 Degrees to 131 Degr. |
| Features | Auto Gain Control, Back. |
| Height (In.) | 2-9/32 |
| Illumination | Yes |
| Image Device | 1/3" Super HAD CCD |
| Image Pixels Total</th>. | NTSC: 811(H) x 508(V), . |
| Image Pixels-Effective<. | NTSC: 768(H) x 494(V), . |
| Infrared Distance | Non Infrared |
| Item | Camera |
| Lens | Manual/Auto Iris (Video. |
| Lens Type | Not Included |
| Line Resolution | 600 Color, 700 B/W |
| Manufacturer | Samsung |
| Minimum Scene Illuminat. | Color : 0.05Lux@F1.2 (5. |
| Motion Detection | Off / Tracking / Detect. |
| Motion Detection Tracki. | Yes |
| Mount | C/CS |
| Mount Type | Bracket Required |
| On Screen Display Menu | Yes |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10?C ~ +55?C (+14?F ~ . |
| OSD Menu | English, Japanese, Span. |
| Pixels | 811(H) x 508(V) / 768(H. |
| Power Consumption | 4.0W, Max. 2.3W |
| Privacy Masking | Yes |
| Privacy Zone | Off / On (12 programmab. |
| Promotion Restriction | Not eligible for promot. |
| Protocols | Coax : CCVC RS-485 : Sa. |
| Resolution | 600 TVL |
| S/N Ratio | 52dB (AGC off, Weight o. |
| S/N Ratio (dB) | 52 |
| Scanning | 2:1 Interlace |
| Scanning Horizontal | NTSC: 15.734KHz, PAL: 1. |
| Scanning System | 2 : 1 Interlace |
| Scanning Vertical</th> . | NTSC: 59.94H, PAL: 50Hz |
| Sensor Option | 1/3" CCD |
| Signal System | NTSC, PAL |
| SKU | SCB-2001 |
| Synchronization | Internal / Line lock |
| Type | Analog |
| Video Output | CVBS : 1.0 Vpp / 75? co. |
| Voltage | 12VDC/24VAC, 12vDC, 24v. |
| Width (In.) | 2-33/64 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G8720047 | 141.32 | 1 | In Stock | 10 | Samsung | | 141.32 @ 1 |
 | alldataresource.com | SAM-SCB2001 | 158.12 | 1 | In Stock | | Samsung Techwin America | | 158.12 @ 1 |
 | surveillance-video.com | SCB-2001 | 262.9 | 1 | In Stock | | Samsung | | 262.9 @ 1 |
