Schneider Electric 2510FW1P

B00859PZM6

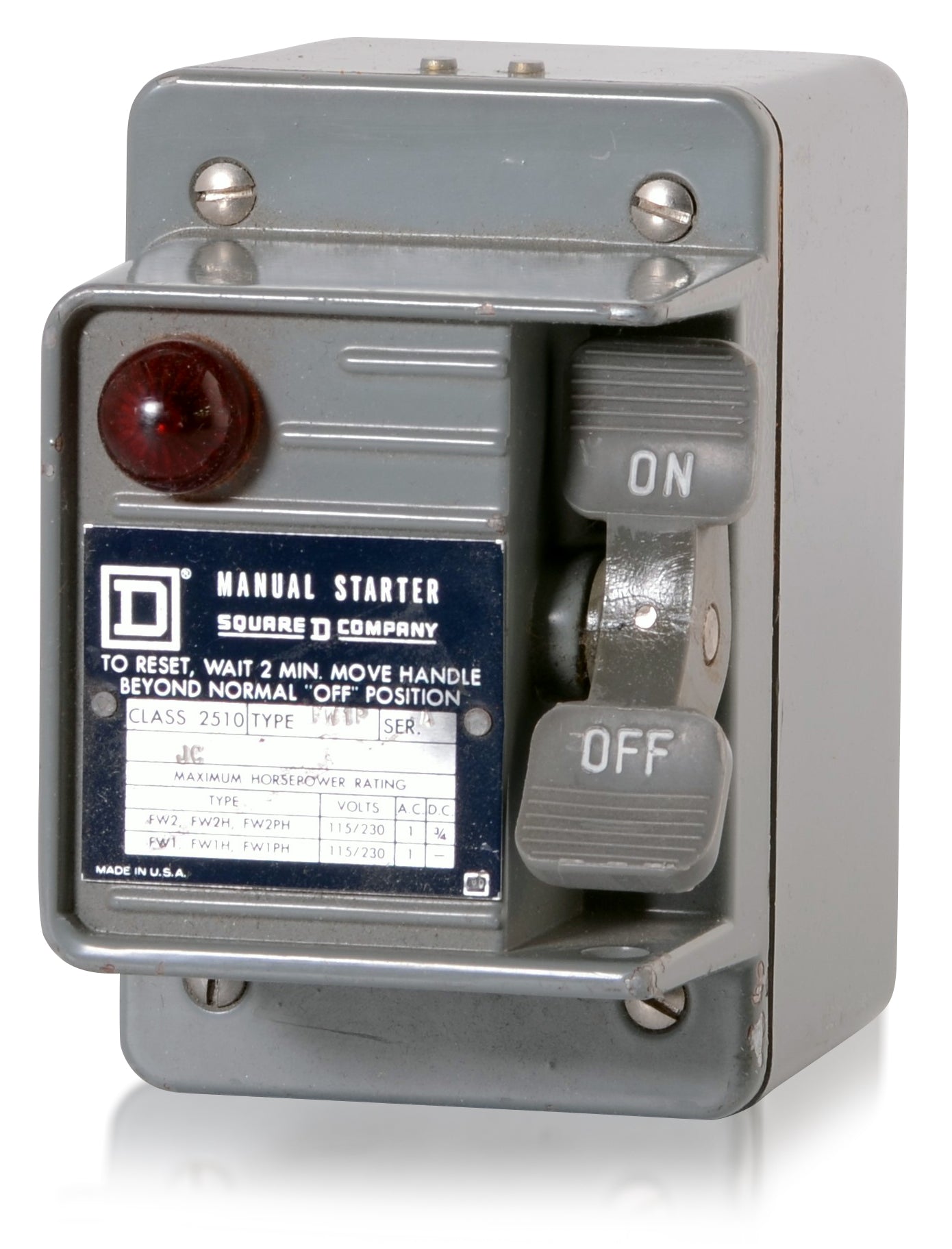

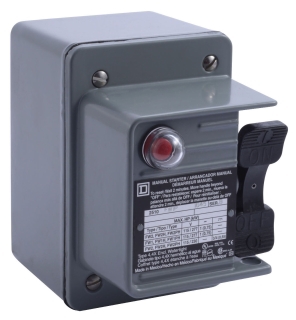

SCHNEIDER ELECTRIC 2510FW1P 277-Vac Manual Starter Fplus Options

SCHNEIDER ELECTRIC 2510FW1P 277-Vac Manual Starter Fplus Optionszoom

Attributes

Key Value
Actuator TypeToggle Switch
Amperage16
Amperage Rating16A
Amps AC16 A
ApplicationPROVIDES OVERLOAD PROTE.
ApprovalUl, Csa, Ce
ApprovalsCSA, UL
Awg GaugeAWG 14...AWG 12 copper
BrandSquare D, Square D by S.
Cable Entry0.75 NPT (bottom)
Catalog Number2510FW1P
CommentsScrew clamp terminals c.
ConditionNew
Connectionscrew clamp terminals
Connection TypeScrew Clamp
Control Typetoggle switch (with loc.
Country of OriginMexico, 00 - Unknown
Current Rating16 AMPS
Depth4.56
Description/Special Fea.Screw Clamp Terminals, .
ECCNEAR99
Electrical Connectionscrew clamp terminals
Enclosure MaterialDie Cast Zinc Alloy
Enclosure NEMA Rating4
Estimated Lead Time (in.6
Family SeriesSquare D Starters, 2510.
Frame Type2510
Gross Weight2.945 lbs
GTIN785901554370
Gtin785901554370
Height4.38 in
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 230V1 hp
HP @ 208-240 VAC 1PH1 hp
ItemManual Motor Starter
Item Number2510FW1P
Item TypeSingle Unit Manual Star.
Local Signallingred indicator
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155048
Max. Voltage600V AC/230V DC
Mounting TypeSurface
Mpn2510FW1P
Nema Rating4
Net Weight2.94 lbs
Number of Poles1
Number of Required Ther.1
OperatorToggle
Phase1, 1 phase
Pilot LightYes
Poles1
Product Or Component Ty.Single Unit Manual Star.
Product Series2510
Resetmanual
Reset TypeTHERMAL - MELTING ALLOY
RoHSYes
Series2510 Series, 2510
Size4.56
Special Featuresred indicator
StandardUL LISTED - CSA CERTIFI.
StandardsCE, CSA, UL, RoHS
Sub BrandF
Thermal Unit CodeScrew Clamp
UNSPSC39121521
UPC785901554370
UPC Code785901554370
Voltage277VAC, 230VDC
Voltage Rating277 V AC
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width3.0 in
Wire GaugeAWG 14 to AWG 12 Copper

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.com2510FW1P175.991In StockSchneider Electric175.99 @ 1
thumbzoomblackhawksupply.com2510FW1P281.141In StockSquare D281.14 @ 1
thumbzoomindustrialrefrigerationparts.com2510FW1P299.131In StockSquare D2.0299.13 @ 1
thumbzoommostelectric.com2510FW1P311.341In StockSQUARE D/TELEMECANIQUE311.34 @ 1
thumbzoomZoroG6125375315.01In StockSquare D2.95315.0 @ 1
thumbzoommidwestapplianceparts.com2510FW1P-SQ-P343.041In StockSquared343.04 @ 1
thumbzoomGalco2510FW1P-SQD347.641In StockSquare D2.945347.64 @ 1
Radwell2510-FW1P359.01In StockSCHNEIDER%20ELECTRIC359.0 @ 1
thumbzoomAllfuses2510FW1P398.74119Square D398.74 @ 1
standardelectricsupply.com2336946399.871In StockSquare D399.87 @ 1
thumbzoomgordonelectricsupply.com2510FW1P411.01In Stock10SQUARE D411.0 @ 1
thumbzoomsuperbreakers.com2510FW1P441.81120Square D441.81 @ 1
Graybar88243778456.54561In StockSquare D (Schneider Electric)456.5456 @ 1
Newark16B5725530.741In StockSQUARE D BY SCHNEIDER ELECTRIC530.74 @ 1
thumbzoomsustainablesupply.comC1177155533.281In StockSquare D2.95533.28 @ 1
steinerelectric.com98841544.681In StockSquare D?544.68 @ 1
thumbzoomRaptor SuppliesAH2NJN583.69246651In StockSQUARE D583.6924665 @ 1
us.rs-online.com70060864584.421In StockSquare D584.42 @ 1
thumbzoomcrescentelectric.com48796757.561In StockSquare D by Schneider Electric757.56 @ 1
