Schneider LC1D098U7

B01JG5XWUO

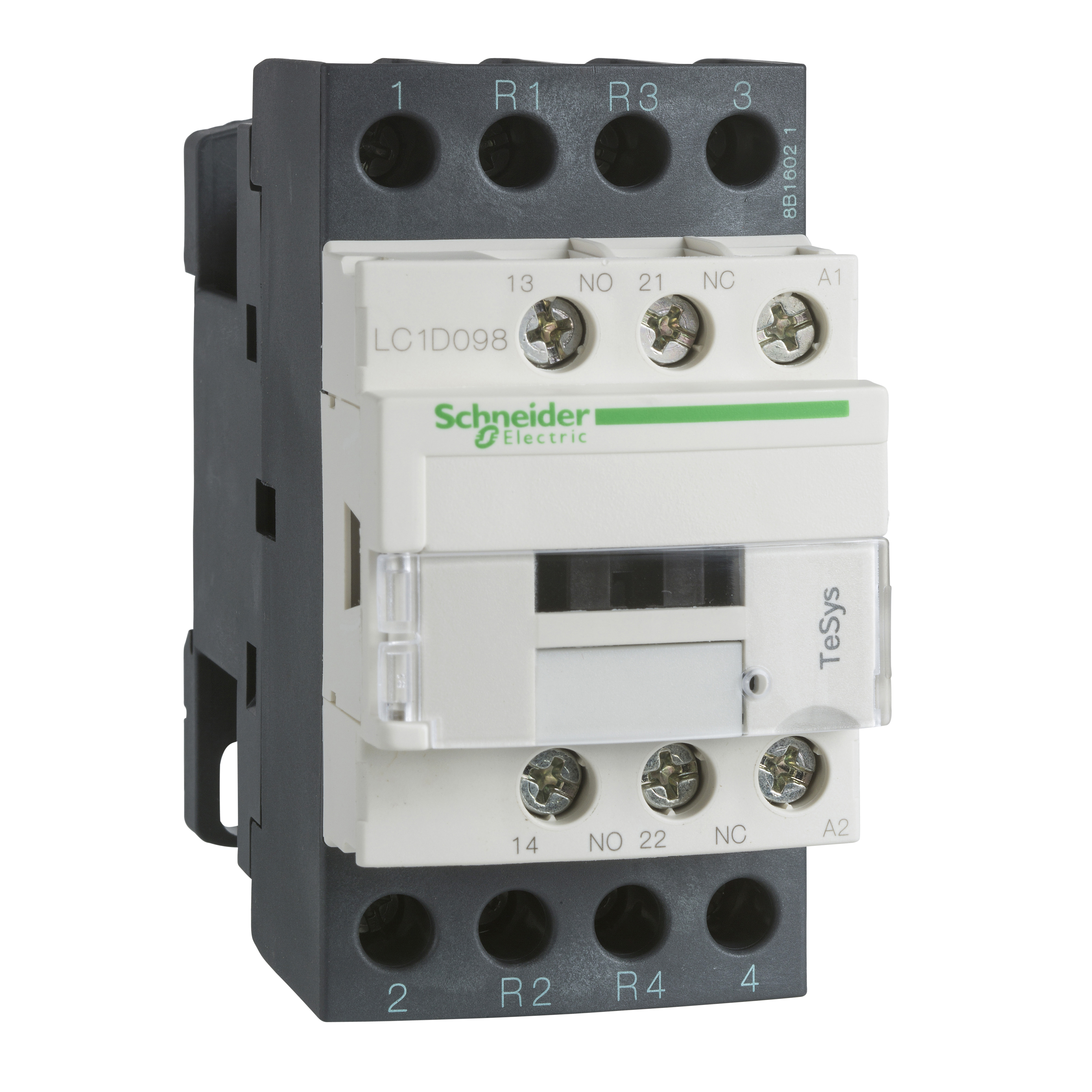

LC1D098U7 NEW SCHNEIDER AC Contactor LC1-D098U7 4P 20A 240V AC Coil

LC1D098U7 NEW SCHNEIDER AC Contactor LC1-D098U7 4P 20A 240V AC Coilzoom

Attributes

Key Value
[Ith] Conventional Free.20 A 60 ?C power circui.
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-60-80 ?C
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
California Proposition .Antimony oxide & Antimo.
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Technologywithout built-in suppre.
Coil Voltage240
Compatibility CodeLC1D
Contact CompatibilityM6
Contact Configuration2NO-2NC
Contactor Applicationresistive load
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-60 ?C .
Depth92 mm
Device Short NameLC1D
Dimensions85 mm H x 45 mm W x 92 .
Enclosure TypeOpen
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Frequency Rating50/60
Height85 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz 0.3 20.
Inrush Power In Va70-70 VA 60 Hz 0.75 20 .
Insulation Resistance> 10 MOhm signalling ci.
Irms Rated Making Capac.250 A 440 V power circu.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Mounting Supportplate || rail
Mounting typePlate/Rail
Net Weight0.365 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles4
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles3600
Operating Temperature-5 to 60
Overvoltage CategoryIII
Pole Contact Composition2 NO + 2 NC
Poles Description4P
Power Dissipation Per P.1.56 W AC-1
Product CertificationsUL || CCC || CSA || UKC.
Product Or Component Ty.contactor
Protective Coverwith
Pvc FreeYes
RangeTeSys || TeSys Deca
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys? D LC1D
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew/Clamp
Tightening Torquepower circuit 1.7 N.m s.
Toxic Heavy Metal FreeYes
TypeNon-Reversing
Utilisation CategoryAC-1
Warranty18 months
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers744-703377.19614Schneider Electric77.196 @ 1
thumbzoomRadwellLC1D098U7125.01In StockSCHNEIDER ELECTRIC SQUARE D125.0 @ 1
thumbzoomstandardelectricsupply.com2295641130.991In StockSquare D (Schneider Electric)130.99 @ 1
Newark11R1488139.681In StockSCHNEIDER ELECTRIC139.68 @ 1
thumbzoommayerelectric.comSQDLC1D098U7143.081In StockSCHNEIDER ELECTRIC0.803143.08 @ 1
thumbzoommostelectric.comLC1D098U7155.341In StockSQUARE D/TELEMECANIQUE155.34 @ 1
