ZB4BA18

B000WL9Q6Q

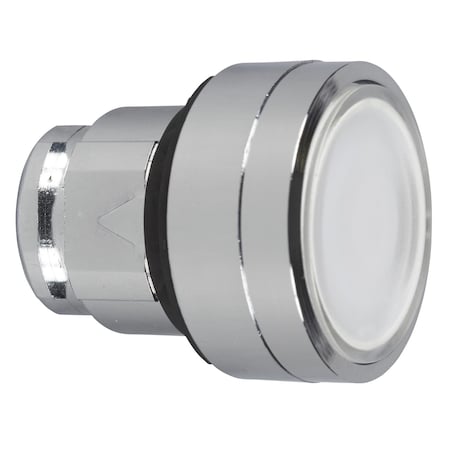

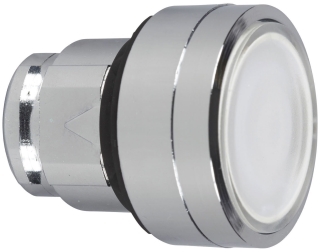

SCHNEIDER ELECTRIC ZB4BA18 FLUSH WITH TRANSPARENT CAP, WHITE

SCHNEIDER ELECTRIC ZB4BA18 FLUSH WITH TRANSPARENT CAP, WHITEzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
Accessory TypePushbutton Head
ActionMomentary
ActuationSpring Return
Actuatorspring return;White flu.
Actuator TypePushbutton ; Push-Pull,.
Ambient Air Temperature.-40-70?C
Ambient Air Temperature.-40-70?C
ApplicationUniversal LED
Bezel MaterialChromium plated metal
BrandSchneider Electric
Cad Overall Depth30 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BA18
CategorySwitches
ColorWhite
Country of OriginFR - France, France
DescriptionHARMONY XB4, ILLUMINATE.
Detailed DescriptionConfigurable Switch Bod.
Device Presentationbasic element
Digi-Key Part Number4008-ZB4BA18-ND
ECCNEAR99
Electrical Composition .M1 6 single front mount.
EnclosureNEMA 1/2/3/4/4X/13
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
Family SeriesSquare D Miscellaneous
For Use WithHarmony XB4 Family
Gross Weight0 lbs
Head Typestandard
IlluminationIlluminated
IndicatorWhite
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 .
IP RatingIP69
ItemWhite flush illuminated.
Item NumberZB4BA18
Item TypeHead for illuminated pu.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberZB4BA18
Manufacturer Product Nu.ZB4BA18
Manufacturer Standard L.3 Weeks
MaterialChromium plated metal
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
NEMA RatingNEMA 13, 4X
Net Weight0 lbs
Operating Temperature-40-70 A Degrees C
Operator Additional Inf.for insertion of legend
Operator Profilewhite flush, unmarked
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Product CertificationsDNV || GL || LROS (Lloy.
Product Or Component Ty.Head for illuminated pu.
Product StatusActive
RequiresContact Block(s), Illum.
Resistance To High Pres.7000000 Pa 55?C 0.1 m
SeriesHarmony XB4, ZB4 Series.
Shape Of Signaling Unit.round
Shock Resistance30 gn 18 ms) half sine .
Size22MM ROUND
Special FeaturesChromium plated metal
StandardUL LISTED FILE NUMBER E.
StandardsEN/IEC 60947-1 || UL 50.
Sub BrandZB4
TerminationScrew
TypeMomentary
Type Of OperatorSpring Return
UNSPSC39122216
UPC785901380221
UPC Code785901380221
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BA1810.2912SCHNEIDER ELECTRIC10.29 @ 1
mostelectric.comZB4BA1810.6215SQUARE D/TELEMECANIQUE10.62 @ 1
us.rs-online.com7038077411.371In StockSchneider Electric11.37 @ 1
RS Delivers187-43111.8561In StockSchneider Electric11.856 @ 1
standardelectricsupply.com93633112.67127Schneider Electric12.67 @ 1
thumbzoomGalcoZB4BA18-SQD13.831In StockSquare D13.83 @ 1
thumbzoomgordonelectricsupply.comZB4BA1814.091In Stock10SQUARE D14.09 @ 1
Mouser996-ZB4BA1814.6114Schneider Electric14.61 @ 1
Graybar9949597317.921In StockSquare D (Schneider Electric)17.92 @ 1
thumbzoomNewark80C812418.45In StockSCHNEIDER ELECTRIC18.4 @ 5
thumbzoomcrescentelectric.com12021218.651In StockSchneider Electric18.65 @ 1
thumbzoomDigi-Key1661371120.4265In StockSchneider Electric20.426 @ 5
thumbzoomblackhawksupply.comZB4BA1822.151In StockSquare D22.15 @ 1
thumbzoomNational Supply Network6953615932.851In StockSchneider Electric32.85 @ 1
thumbzoomZoroG50090632850.05In StockSchneider Electric2.450.0 @ 5
