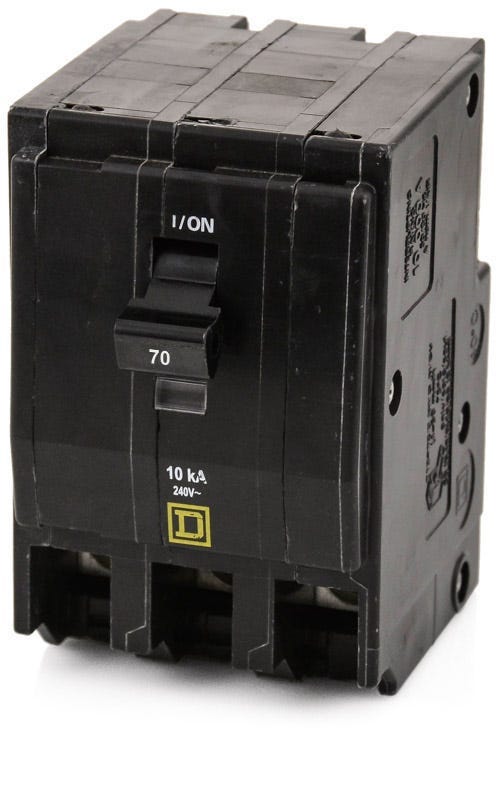

SCHNEIDER ELECTRIC QO370VH

B000LET6QE

SCHNEIDER ELECTRIC Miniature 240-Volt 70-Amp QO370VH Molded Case Circuit Breaker 600V 175A

SCHNEIDER ELECTRIC Miniature 240-Volt 70-Amp QO370VH Molded Case Circuit Breaker 600V 175Azoom

Attributes

Key Value
[Ue] Rated Operational .120/240 V AC || 240 V |.
AC Voltage Rating120/240V AC
Ambient Air Temperature.40 ?C
Amperage70
Amps70 A
ApplicationHACR rated Applications
ApprovalUL, CSA
AvailabilityExpected to ship in 1-2.
Awg GaugeAWG 8...AWG 2 copper or.
AWG RangeAWG 8...AWG 2 copper or.
BrandSquare D
Breaking Capacity22 kA 120/240 V AC 50/6.
California Proposition .Cadmium and cadmium com.
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorPaddle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.Plug In, Plug-In
Circuit Breaker Typestandard, High Interrup.
Circularity ProfileN/A
ColorBlack
Compatible Panelboard/L.QO
Connection TypePlug-In
Country of OriginMX - Mexico
Current Rating70A
Current Stock3
DC Voltage RatingNot Rated
Depth2.91 in, 74 mm
ECCNEAR99
Electrical Connectionbox lugs
Eu Rohs DirectiveCompliant with Exemptio.
For Use WithQO Load Centers and NQ .
Frame Size100A/QO
Frame TypeQO
FunctionsLI - Long-Time and Inst.
Gtin785901060239
Halogen Content Perform.Halogen free product
Height79 mm
Height (in)3.12
International ShippingNo
Interrupt Rating22 kA at 120/240V AC, 2.
Interrupting Rating22 kA 120/240 V AC 50/6.
ItemMiniature Circuit Break.
Length3.12 in
Length (in)2.91
Length (Straight Wirewa.3.12 in
Line Rated Current70 A
Max. AIR Rating22 kA at 120/240V AC, 2.
Max. Wire Size2 AWG
Mercury FreeYes
Min. Wire Size8 AWG
Mounting ModePlug-In
Mounting TypePlug-In
MpnQO370VH
Net Weight0.472 kg
No. of Poles3
Number of Poles3
Number Of Spaces Requir.3
Phase3, Three
Poles3
Poles Description3P
Product CertificationsUL Listed || CSA
Product Or Component Ty.miniature circuit-break.
ProtectionThermal Magnetic
Range Of ProductQO
Rated Voltage120/240V AC || 240V || .
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesQO
SKUZO-G6580147
StandardsCSA, UL Listed, UL, CSA
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLug
Tightening Torque5.6-5.6 N.m
Torque4.6-4.6 N.m
UNSPSC39121603
Upc785901060239
UPC785901060239
Voltage240
Warranty18 months
Width57 mm, 2.25 in
Width (in)2.25
Wire GaugeAWG 8, AWG 2 Copper or .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comQO370VH181.591In Stock10SQUARE D181.59 @ 1
thumbzoomZoroG6580147193.99112Square D1.1193.99 @ 1
standardelectricsupply.com2187399198.91In StockSquare D198.9 @ 1
Graybar88292872204.43361In StockSquare D (Schneider Electric)204.4336 @ 1
thumbzoomsimsupply.comZO-G6580147229.6713Square D229.67 @ 1
thumbzoomRadwellQO370VH230.01In StockSCHNEIDER ELECTRIC SQUARE D230.0 @ 1
thumbzoomsustainablesupply.comC1177983236.751In StockSquare D1.08236.75 @ 1
thumbzoomebay.com_the-circuit-breaker-prosQO370VH298.991In StockSquare D298.99 @ 1
thumbzoomsuperbreakers.comQO370VH343.371In StockSquare D343.37 @ 1
Grainger2DG91370.751In StockSQUARE D370.75 @ 1
AmazonTPB000LET6QE385.851In Stock3SCHNEIDER ELECTRIC385.85 @ 1
thumbzoomRaptor SuppliesAF9FPD423.46447651In StockSQUARE D423.4644765 @ 1
thumbzoommayerelectric.comSQDQO370VH427.01In StockSQUARE D1.0384427.0 @ 1
grainger.caSQDQO370VH445.252948761In StockSQUARE D1.1445.25294876 @ 1
thumbzoommostelectric.comQO370VH445.3311SQUARE D/TELEMECANIQUE445.33 @ 1
thumbzoomebay.com_mroglobalsolutionsQO370VH521.991In StockSquare D521.99 @ 1
Newark80C4419542.091In StockSQUARE D BY SCHNEIDER ELECTRIC542.09 @ 1
