- mpnAK1241
- brandname: TB Woods
- manufacturername: TB Woods

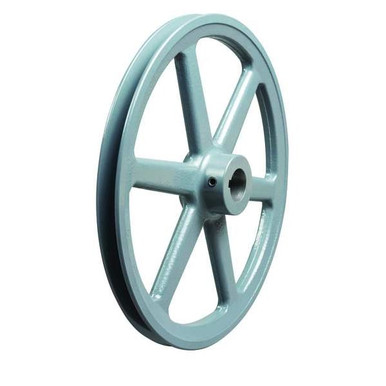

TB Woods AK1241 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1" Bore, Cast Iron, 12.25" OD, 2050 max rpm
- Brand: TB Woods
- PartNumber: AK1241
- Model: 698672094061
- Size: 2050 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Belt Pitch Dia. | 11.66 in |
| 3L Pitch Diameter | 11.91 in |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 12.25 in |
| 4L, A, or AX Belt Pitch. | 12 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 12.25 in |
| AX Pitch Diameter | 12.25 in |
| B Pitch Diameter | Not Applicable |
| Belt section | A-4L-3L |
| Bore Diameter | 1 in |
| Bore Type | Fixed |
| Bore type | Finished with keyway |
| Bore-to-size bore diame. | 1 |
| Bore-to-size keyseat | 1/4 in x 1/8 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | Not Applicable |
| C Pitch Diameter | Not Applicable |
| Component WR2 (lbs ft2) | 0.87 |
| Construction | Arm |
| Current Stock | 42 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 12 |
| Dimension | 0.72 |
| Face Width | 0.75 in |
| Face width | 0.75 |
| Face width (in) | 0.75 |
| Fits Shaft Dia. | 1 in |
| For Belt Section (broad. | 3L, 4L, A, or AX |
| For Belt Trade Size | 3L, 4L, A, AX |
| For V-Belt Section | 3L, 4L, A, AX |
| For V-Belt Type | Classical, Cogged |
| Groove cross section se. | A |
| Hub location | -0.72 |
| Hub location (in) | -0.72 |
| Hub Projection | 0.72 in |
| Hub Type | One Side |
| I.D. | 11.88 |
| Includes | Set Screw |
| Industry Number | AK1241 |
| Inertia WR? | 88 |
| Inside diameter (in) | 11.88 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway | Yes |
| Keyway Depth | 1/8 in |
| Keyway Size | 0.250" x 0.125" |
| Keyway Size Type | 0.250 in x 0.125 in |
| Keyway Width | 1/4 in |
| Length through Bore | 1 15/32 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 2050 |
| Maximum Bore Diameter | 1 11/16 in |
| Mpn | AK1241 |
| Number of Grooves | 1 |
| Number of grooves | 1 |
| Number of Steps | 1 |
| O.D. | 12.25 |
| Outside Diameter | 12.25 in |
| Outside diameter (in) | 12.25 |
| Overall Width | 1 1/2 in |
| Pitch diameter | 12.25 |
| Pitch Diameter | 12.25 in |
| Pitch Diameter for V-Be. | 3L: 11.91 in / 4L: 12.2. |
| Pulley Bore Dia. | 1 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 12.25 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 2050 |
| Set Screw Included | Yes |
| SKU | ZO-G1896535 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672094061 |
| Weight | 7.1 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1896535 | 53.69 | 1 | 54 | | Tb Woods | 8.78 | 53.69 @ 1 |
 | simsupply.com | ZO-G1896535 | 62.38 | 1 | 42 | | Tb Woods | | 62.38 @ 1 |
 | bscsource.com | AK1241 | 65.89 | 1 | In Stock | | TB Wood's | | 65.89 @ 1 |
 | sustainablesupply.com | C2682825 | 71.03 | 1 | In Stock | | TB Wood's | 8.78 | 71.03 @ 1 |
 | Guardian | 82222092 | 74.94 | 1 | In Stock | | TB Wood's | | 74.94 @ 1 |
| grainger.ca | WWG5RHX8 | 77.49430662 | 1 | In Stock | | TB WOOD'S | 8.78 | 77.49430662 @ 1 |
 | National Supply Network | 82222092 | 79.4 | 1 | In Stock | | TB Wood's | | 79.4 @ 1 |
 | MRO Supply | 345429 | 124.24 | 1 | In Stock | | TB Woods | | 124.24 @ 1 |
| us.rs-online.com | 73931945 | 137.85 | 1 | In Stock | | TB Wood's (Altra) | | 137.85 @ 1 |
 | Raptor Supplies | AE6FJT | 147.4902 | 1 | In Stock | | TB WOOD'S | | 147.4902 @ 1 |
