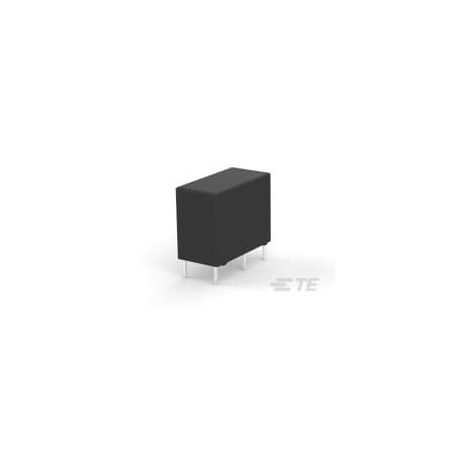

TE Connectivity / AMP 1461353-6

B0846BB4HM

1461353-6, PCH-L2MH Customer Drawing (25 Items)

1461353-6, PCH-L2MH Customer Drawing (25 Items)zoom

Attributes

Key Value
AC contacts rating @R5A / 277V AC
Body Depth - Relay0.787 in
Body dimensions20x15.2x10mm
Body Height - Relay0.598 in
Body Width - Relay0.394 in
Coil power consumption200mW
Coil resistance2.88k?
Coil TypeMonostable, DC
Coil voltage min.18V DC
Coil Volts24V DC
Contact current max.10A
Contact Form - Relay1 Form A (NO)
Contact Limiting Contin.5A
Contact Limiting Making.5A
Contact Limiting Short-.5A
Contact materialAgSnO
Contact MaterialAgSnO
Contact Rating0.208333333333333A
Contact Voltage Rating277 VAC, 30 VDC
Contacts configurationSPST-NO
DC contacts rating @R5A / 30V DC
Dielectric Voltage4000 Vrms Coil and Cont.
FeaturesSensitive Version, UL C.
Insulation Clearance0 to 2.5 mm
Insulation Creepage3 to 5.5 mm
Item - RelayStandard Power Relay
ManufacturerTE Connectivity
MountingTHT
Mounting TypePrinted Circuit Board
Number of Poles1
Operate time10ms
Operating temperature-40...85?C
Power Consumption - Rel.200 mW
Protection CategoryRTIII
Rated coil voltage24V DC
Relay seriesPCH
Relay variantminiature
Release time5ms
Switched voltagemax. 30V DC,
Switching Current100mA @ 5V
Switching Voltage30 VDC, 277 VAC
Terminal TypePCB-THT
Type of relayelectromagnetic

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet1461353-60.965100715TE Connectivity0.965 @ 100
Onlinecomponents.com1461353-61.3711283TE Connectivity / AMP Brand1.37 @ 25
Future Electronics46026451.62200025TE Connectivity1.62 @ 2000
thumbzoomZoroG00586619697.65125Te Connectivity97.65 @ 25
