TE CONNECTIVITY / ALCOSWITCH GDH08SA04

B011DI09G2

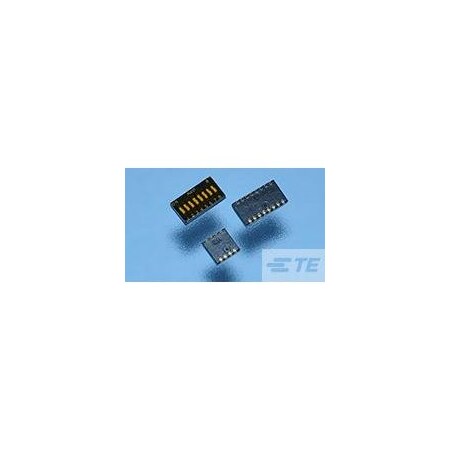

DIP Switches / SIP Switches SPST 8POS DIP Rocker (1 piece)

DIP Switches / SIP Switches SPST 8POS DIP Rocker (1 piece)zoom

Attributes

Key Value
ActuatorRocker
Actuator ColorWhite
Actuator LevelFlush, Recessed
Actuator StyleRecessed Rocker
Actuator TypeSlide (Standard)
Alternate Mfr Part Numb.1977830-4
Alternate Part No.506-GDH08SA04
Auto-InsertableNo
Base Product NumberGDH08
Body MaterialPolyphenylene Sulfide (.
CategorySwitches
Centerline1.27 mm [ .05 in ]
CircuitSPST
Configuration (Pole-Thr.Single Pole - Single Th.
Contact Base MaterialCopper Alloy
Contact Current Rating .0.1
Contact FinishGold
Contact FormSPST
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold
Contact PlatingGold over Nickel
Contact Rating25 mA at 24 V, 100 mA a.
Current Rating (Amps)25mA
DescriptionSWITCH SLIDE DIP SPST 2.
Detailed DescriptionDip Switch SPST 8 Posit.
Digi-Key Part NumberGDH08SA04-ND
Electrical Life1,000 Cycles
FeaturesTape Seal
Height2.2 mm [ .093 in ]
Height Above Board0.093" (2.35mm)
Housing ColorBlack
Housing MaterialPolyphenylene Sulfide (.
Length0.444" (11.28mm), 11.29.
Low ProfileYes
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.GDH08SA04
Manufacturer Product Nu.GDH08SA04
Manufacturer Standard L.35 Weeks
Mechanical Life1,000 Cycles
MfrTE Connectivity ALCOSWI.
Mounting TypeSurface Mount
Number of Positions8
Number of Switches8
Operating Temperature-30?C ~ 85?C
Operating Temperature R.- 35 C to + 85 C
Operating Temperature R.-30 to 85
PackageTube
PackagingTube
Part # Aliases1977830-4
Pitch0.050" (1.27mm), Half
Product CategoryDIP Switches/SIP Switch.
Product StatusActive
Product TypeSwitch
Seal TypeTape
SealedYes
SeriesGDH
Solder Tail Contact Pla.Gold over Nickel
Switch TypeDIP
Terminal Pitch1.27 mm
Termination StyleJ Lead, SMD/SMT
UL Flammability RatingUL 94V-0
Voltage Rating24VDC
Voltage Rating (VDC)50
Voltage Rating AC300 V
WashableYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY ALCOSWITCH GDH08SA042.03021805TE CONNECTIVITY / ALCOSWITCH2.0 @ 30
Onlinecomponents.comGDH08SA042.3318518TE Connectivity / Alcoswitch Brand2.33 @ 1
thumbzoomDigi-Key41684053.073021835TE Connectivity ALCOSWITCH Switches3.07 @ 30
us.rs-online.com720327773.1400032TE Connectivity3.1 @ 4000
thumbzoomNewark73W92093.14400031ALCOSWITCH - TE CONNECTIVITY3.14 @ 4000
thumbzoomswatee.comGDH08SA044.091107TE Connectivity4.09 @ 1
AmazonSCB011DI09G213.04132TE Connectivity13.04 @ 1
thumbzoomZoroG80094662891.5131Alcoswitch91.5 @ 1
