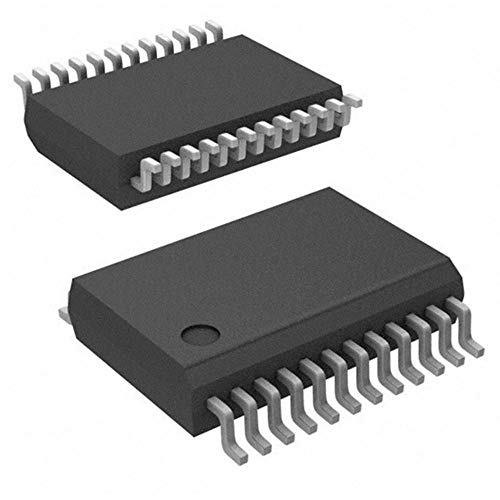

Texas Instruments PCA9555DB

B005S3TXIO

PCA9555DB

PCA9555DBzoom

Attributes

Key Value
Alternate Part No.595-PCA9555DB
Base Product NumberPCA9555
BrandTexas Instruments
CategoryIntegrated Circuits (IC.
Clock Frequency400 kHz
Current - Output Source.10mA, 25mA
DescriptionIC XPNDR 400KHZ I2C SMB.
Detailed DescriptionI/O Expander 16 I?C, SM.
Digi-Key Part Number296-33518-5-ND
DigiKey ProgrammableNot Verified
FeaturesPOR
InterfaceI?C, SMBus
Interrupt OutputYes
Logic FamilyPCA9555
ManufacturerTexas Instruments
Manufacturer Part No.PCA9555DB
Manufacturer Product Nu.PCA9555DB
Maximum Operating Frequ.400 kHz
MfrTexas Instruments
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of I/O16
Number of I/Os16
Operating Supply Voltage2.3 V to 5.5 V
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output TypePush-Pull
PackageTube
Package / Case24-SSOP (0.209", 5.30mm.
Package/CaseSSOP-24
PackagingTube
Product CategoryInterface - I/O Expande.
Product StatusObsolete
Series-, PCA9555
Supplier Device Package24-SSOP
Unit Weight172.400 mg
Voltage - Supply2.3V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH23876352.12110Texas Instruments2.12 @ 10

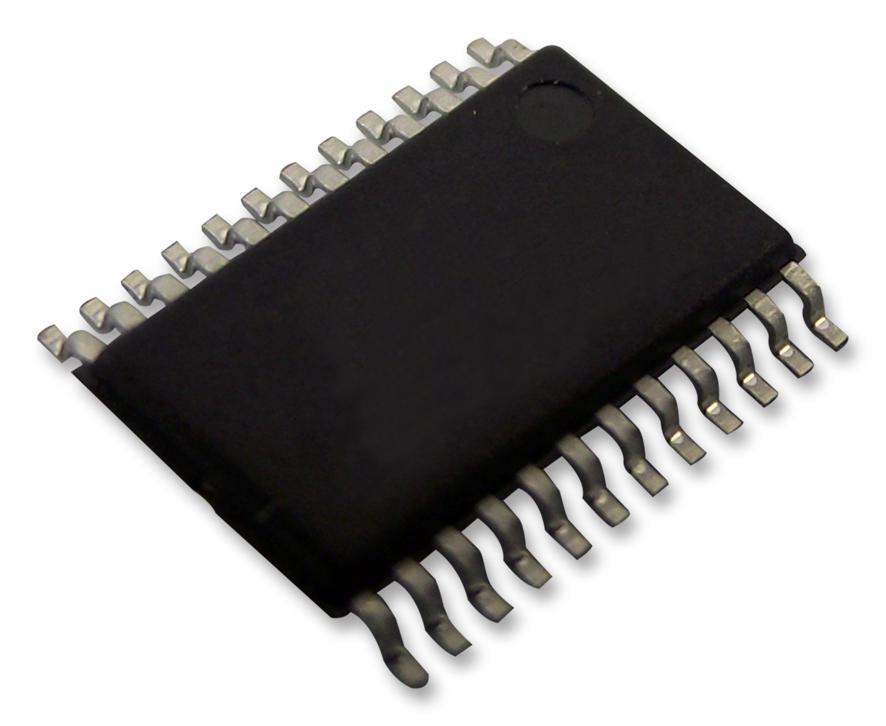

thumbzoomNewark28AH46593.69110TEXAS INSTRUMENTS3.69 @ 10
thumbzoomDigi-Key15767053.8151268Texas Instruments3.815 @ 10
thumbzoomswatee.comPCA9555DB4.911235Texas Instruments4.91 @ 10
