Triad Magnetics CST306-3A

mpnCST306-3A
brandname: Triad Magnetics
manufacturername: Triad Magnetics

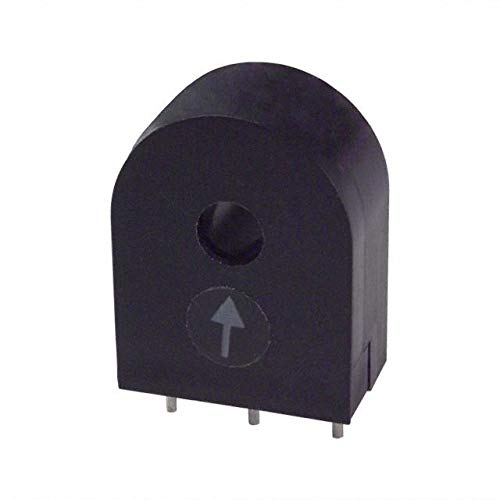

CST306-3A

CST306-3A

zoom

Brand: Triad Magnetics
PartNumber: CST306-3A
Model: CST306-3A
PackageQuantity: 1
Manufacturer: Triad Magnetics
Label: Triad Magnetics

Attributes

Key	Value
Alternate Part No.	553-CST306-3A
Brand	Triad Magnetics
Configuration	Encapsulated
Construction	Enclosed
Current Rating	25 A
DC Resistance	3.75 Ohms
Dimensions	0.69 L x 0.385 W x 0.91.
Factory Pack Quantity	126
Frequency	20 kHz to 200 kHz, 20 t.
Height	23.24 mm
In-stock	1000
Inductance	55 mH
Length	17.53 mm
Manufacturer	Triad Magnetics
Manufacturer Part No.	CST306-3A
Mounting Style	Through Hole
Mounting Type	PCB Mount
Number of Outlets	1
Number of Turns	200
Operating Temperature	+40 ?C
Package/Case	25A
Phase	1 Phase
Primary Current	25 A
Primary Type	Current Transformer
Product Categories	Audio & Signal Transfor.
Product Description	These transformers are .
Product Header	PCB Mount Current Sense.
RoHs Status	Rohs
Secondary Resistance	3.75 Ohms
Series	CST Series
Standards	UL
Temperature Rating	130 C
Termination	Through Hole
Termination Style	Radial
Turns Ratio	200:1
Unit Weight	13.154 g
Width	9.78 mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	CST306-3A	3.96	1	25		TRIAD Magnetics		3.96 @ 1
	us.rs-online.com	70218498	4.49	1	22		Triad Magnetics		4.49 @ 1
	Hotenda	H4246171	5.4	1	22		Triad Magnetics		5.4 @ 1
	Digi-Key	237-1108-ND	5.71	1	22		Triad Magnetics		5.71 @ 1
	Newark	89M4950	7.03	1	In Stock		TRIAD MAGNETICS		7.03 @ 1
	AmazonTP	B005T8MSH6	8.75	1	22	2	Triad Magnetics		8.75 @ 1
	swatee.com	CST306-3A	9.89	1	288		Triad Magnetics		9.89 @ 1
