TSUBAKI 40B16F-1

B000E2YLUY

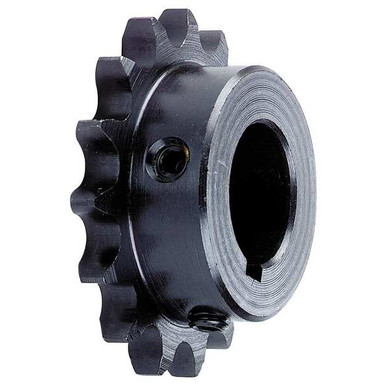

Sprocket, 2.810 OD, #40

Sprocket, 2.810 OD, #40zoom

Attributes

Key Value
Bore Dia. (In.)1
Bore Dia. - Sprockets1 in
Bore Diameter1 in
Bore TypeFixed
BrandTsubaki
Chain Number40
Current Stock97
FinishBlack Oxide
For Chain Pitch1/2 in
For Number of StrandsSingle
For Pitch TypeSingle Pitch
Hub Diameter2 in
Hub Projection1 in
Hub TypeOne Side
IncludesStandard Keyway and 2 S.
Industry Chain Size40
International ShippingNo
ItemSingle Strand Sprocket
Keyseat Size (In.)1/4 x 1/8
KeywayYes
Keyway Depth1/8 in
Keyway Size1/4 in x 1/8 in
Keyway Width1/4 in
Lead TimeExpected to ship in 1-2.
Length through Bore7/8 in
MaterialSteel
Material - SprocketsSteel
Material Grade1045
Maximum Bore Diameter1 in
Mpn40B16F-1
Number of Chain RowsSingle
Number of Set Screws2
Number of Teeth16
Number of Teeth - Sproc.16
Outside Dia.2.81 in
Outside Dia. (In.)2.810
Outside Diameter2.81 in, 3 in
Pitch Dia.2.563 in
Pitch Dia. (In.)2.563
Pitch Diameter2.563 in
Resistance PropertiesCorrosion Resistant
Set Screw Dia. (In.)5/16
Set Screw Hole Dia.0.313 in
Set Screw Location90 Degrees from Keyway,.
Set Screw Size5/16 in
SKUZO-G3207215
StandardsANSI
SubCategoryPower Transmission
Teeth Heat TreatmentHardened Teeth
Tooth Width0.284 in
Width Across Tooth SetsNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG320721519.151230Tsubaki0.719.15 @ 1
grainger.caWWG1L12923.218533941In StockTSUBAKI0.723.21853394 @ 1
AmazonSCB000E2YLUY25.311In StockTSUBAKI25.31 @ 1
thumbzoomsimsupply.comZO-G320721529.35197Tsubaki29.35 @ 1
motionindustries.com0016806036.31In StockTsubaki (UST)36.3 @ 1
thumbzoomRaptor SuppliesAB2BRK41.95649251In StockTSUBAKI41.9564925 @ 1
