- mpnT12S1D4
- brandname: U.S. Motors
- manufacturername: U.S. Motors

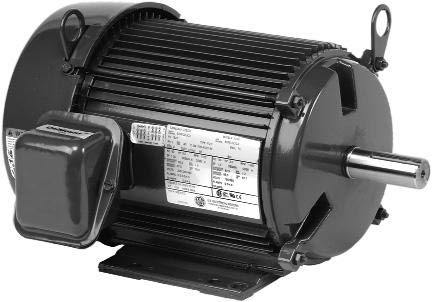

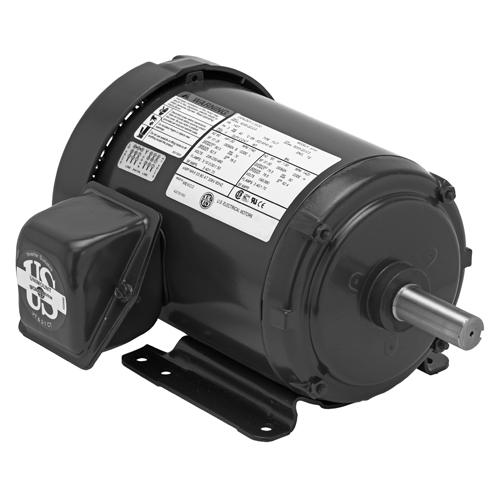

US Motors (Nidec) T12S1D4 General Purpose Motor - 3 ph, 1/2 hp, 3600 rpm, 208-230/460 V, 48 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Rigid Base Mount
- Brand: US Motors (Nidec)
- PartNumber: T12S1D4
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 1.8-1.8/0.90 |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 76% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 20.90 |
| Family Series | US Motors Motors |
| FL Amps | 1.8-1.8/0.90 |
| FL Efficiency | 76 |
| Frame | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 1.80-1.80/0.90 |
| Full Load Amps @ 50Hz | Not Applicable |
| Gross Weight | 19 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| HP @ 50Hz | Not Applicable |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Motor,3PH,1/2HP,3600,20. |
| Item Number | T12S1D4 |
| Kilowatts | 0.4 kW |
| Length Less Shaft | 9 3/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P055BZM0902025B |
| Manufacturer Part Number | T12S1D4 |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P055BZM0902025B |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Blowers, Compressors, G. |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| Nameplate RPM | 3,450 |
| NEMA Design | B |
| NEMA Frame | 48 |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 76 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 10 11/16 in |
| Overload Protection | None |
| Part Number | T12S1D4 |
| Part Winding Start Capa. | Yes |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Removable Base | Permanently Lubricated . |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | Not Applicable |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 1/2 in |
| Ship Weight | 19 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Recog. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 208V, . |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 19 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467082 | 206.95 | 1 | In Stock | | US Motors | | 206.95 @ 1 |
 | Zoro | G1930620 | 220.27 | 1 | In Stock | | U.S. Motors | 19.0 | 220.27 @ 1 |
 | emotorpro.com | T12S1D4 | 226.11 | 1 | In Stock | | U.S. Motors | 19.0 | 226.11 @ 1 |
 | Galco | T12S1D4-USM | 230.95 | 1 | In Stock | | US Motors | 19.0 | 230.95 @ 1 |
 | motorsandcontrol.com | T12S1D4 | 230.95 | 1 | In Stock | | US Motors (Nidec) | 20.9 | 230.95 @ 1 |
 | National Supply Network | B467082 | 234.34 | 1 | In Stock | | US MOTORS | | 234.34 @ 1 |
 | bscsource.com | T12S1D4 | 375.39 | 1 | In Stock | | US Motors | | 375.39 @ 1 |
| motionindustries.com | 02899114 | 376.95 | 1 | In Stock | | US Motors (Nidec) | | 376.95 @ 1 |
 | Guardian | 04088654 | 403.02 | 1 | In Stock | | US Motors | | 403.02 @ 1 |
