- mpn22XX19
- brandname: WESTWARD
- manufacturername: WESTWARD

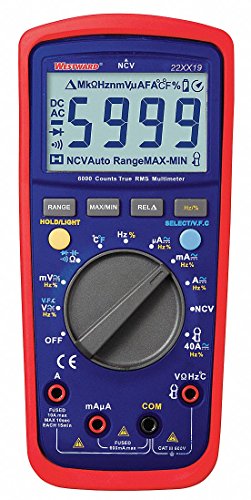

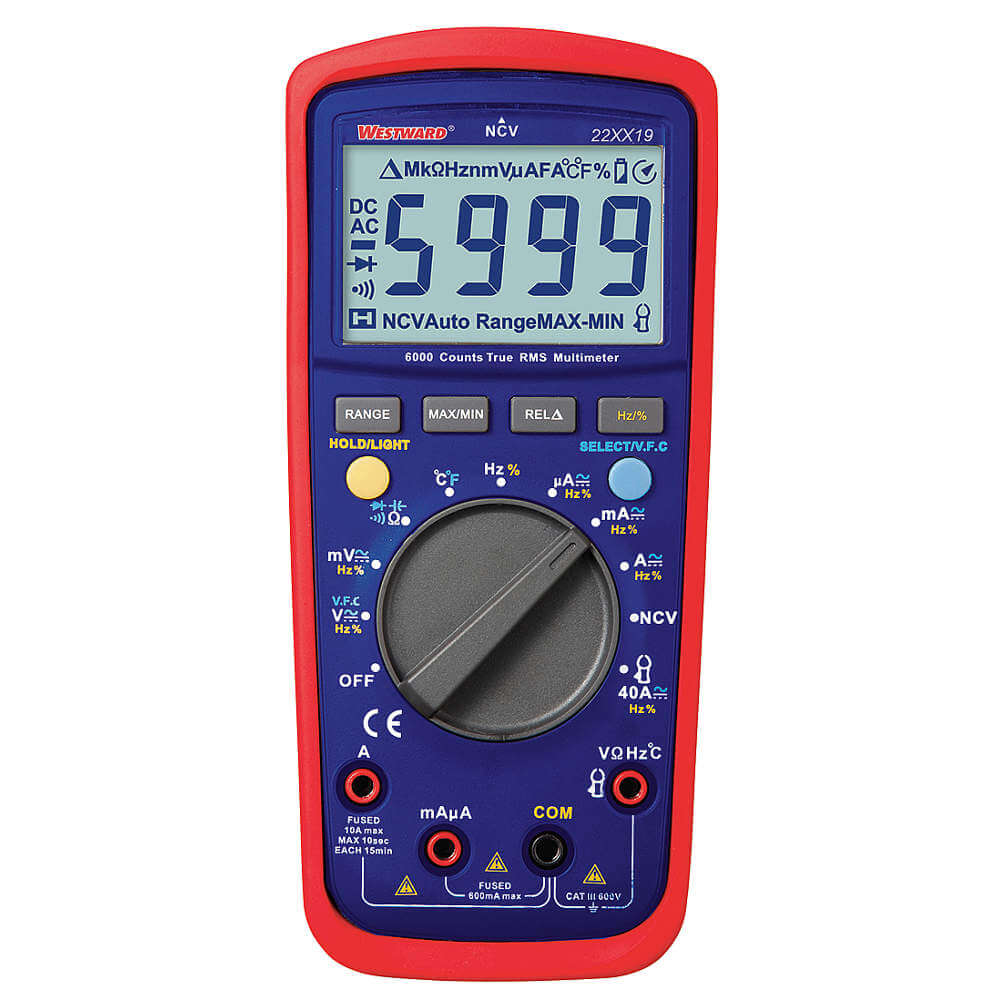

Digital Multimeters, 60 Ohms, 6000 Counts
- Brand: WestWard Tools
- PartNumber: 22XX19
- Model: 22XX19
- PackageQuantity: 1
- Manufacturer: WESTWARD
- Label: WESTWARD
Attributes
| Key | Value |
|---|
| AC Current Measurement . | Not Applicable |
| AC Response | TRMS |
| AC Response Calculation | TRMS |
| AC Voltage Measurement . | Not Applicable |
| Audible Continuity | Yes |
| Auto Power Off | Yes |
| Auto Ranging | Yes |
| Bar Graph | No |
| Bar Graph Included | No |
| Basic AC Current Accura. | Not Applicable |
| Basic AC Voltage Accura. | Not Applicable |
| Basic DC Accuracy | +/-0.50% of Reading +2 . |
| Basic DC Current Accura. | Not Applicable |
| Basic DC Voltage Accura. | +/-0.50% + 2 Digits |
| Batteries Included | Yes |
| Battery Access | Yes |
| Battery Size | AA |
| Battery Type | AA |
| Brand | Westward |
| Calibration Certificate. | No |
| Capacitance Measurement. | Not Applicable |
| Capacitance Measurement. | 9,999 pF |
| Capacitance Range | 9999 pF to 99,990 uF |
| Computer Interface Conn. | None |
| Current Stock | 42 |
| Data Hold | Yes |
| Data Logging | No |
| DC Current Measurement . | Not Applicable |
| DC Voltage Measurement . | Not Applicable |
| Diode Test | Yes |
| Display Type | Backlit LCD |
| Duty Cycle | Yes |
| Frequency Measurement A. | Not Applicable |
| Frequency Measurement R. | Not Applicable |
| Includes | Battery, Soft Carrying . |
| Instrument Counts | 6000, 6,000 |
| Instrument Safety Rating | CAT III 600V, CAT III 6. |
| International Shipping | No |
| Item | Digital Multimeter |
| Manufacturers Warranty . | 3 yr |
| Max. AC Amps | 10 |
| Max. AC Volts | 600 |
| Max. DC Amps | 10 |
| Max. DC Volts | 600 |
| Max. Ohms | 60 megohm |
| Maximum AC Current Meas. | 10 A |
| Maximum AC Voltage Meas. | 600 V |
| Maximum Capacitance Mea. | 99,990 uF |
| Maximum DC Current Meas. | 10 A |
| Maximum DC Voltage Meas. | 600 V |
| Maximum Frequency Measu. | 10 MHz |
| Maximum Resistance Meas. | 60 megaohm |
| Maximum Temperature Mea. | 1,832 Degrees F |
| Minimum Capacitance Mea. | 9,999 pF |
| Minimum Frequency Measu. | 0.001 Hz |
| Minimum Temperature Mea. | -40 Degrees F |
| Minimum/Maximum Memory | Yes |
| Mpn | 22XX19 |
| Multimeter Style | Full Size - Basic Featu. |
| Parameters Measured | AC Current, AC Voltage,. |
| Peak Hold | No |
| Resistance Measurement . | Not Applicable |
| Resistance Measurement . | Not Applicable |
| Series | WESTWARD (R) 22XX19 |
| SKU | ZO-G5730146 |
| Standards | cETLus IEC61010, cETLus. |
| SubCategory | Test Instruments |
| Temp. Range | -40 Degrees to 1832 De. |
| Temperature Measurement. | Not Applicable |
| UPC | 190735776193 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 22XX19 | 69.5 | 1 | 151 | 0 | WESTWARD | | 69.5 @ 1 |
| grainger.ca | WSW22XX19 | 84.54914094 | 1 | In Stock | | WESTWARD | 1.37 | 84.54914094 @ 1 |
 | Zoro | G5730146 | 101.99 | 1 | 170 | | Westward | 1.35 | 101.99 @ 1 |
 | sustainablesupply.com | C2949361 | 107.55 | 1 | In Stock | | Westward | 1.35 | 107.55 @ 1 |
 | simsupply.com | ZO-G5730146 | 118.41 | 1 | In Stock | | Westward | | 118.41 @ 1 |
 | Raptor Supplies | AB7GEH | 166.6974465 | 1 | In Stock | | WESTWARD | | 166.6974465 @ 1 |
