- mpnCDPT3306
- brandname: Baldor
- manufacturername: Baldor

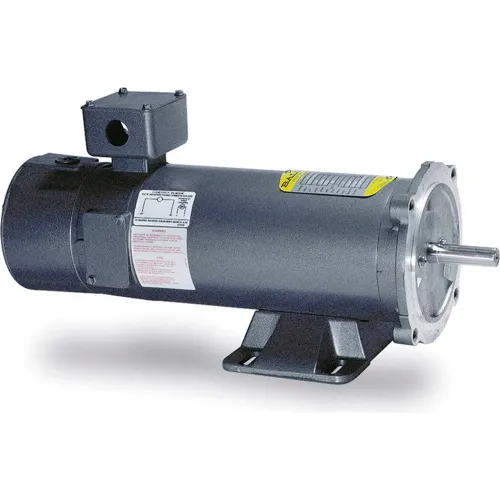

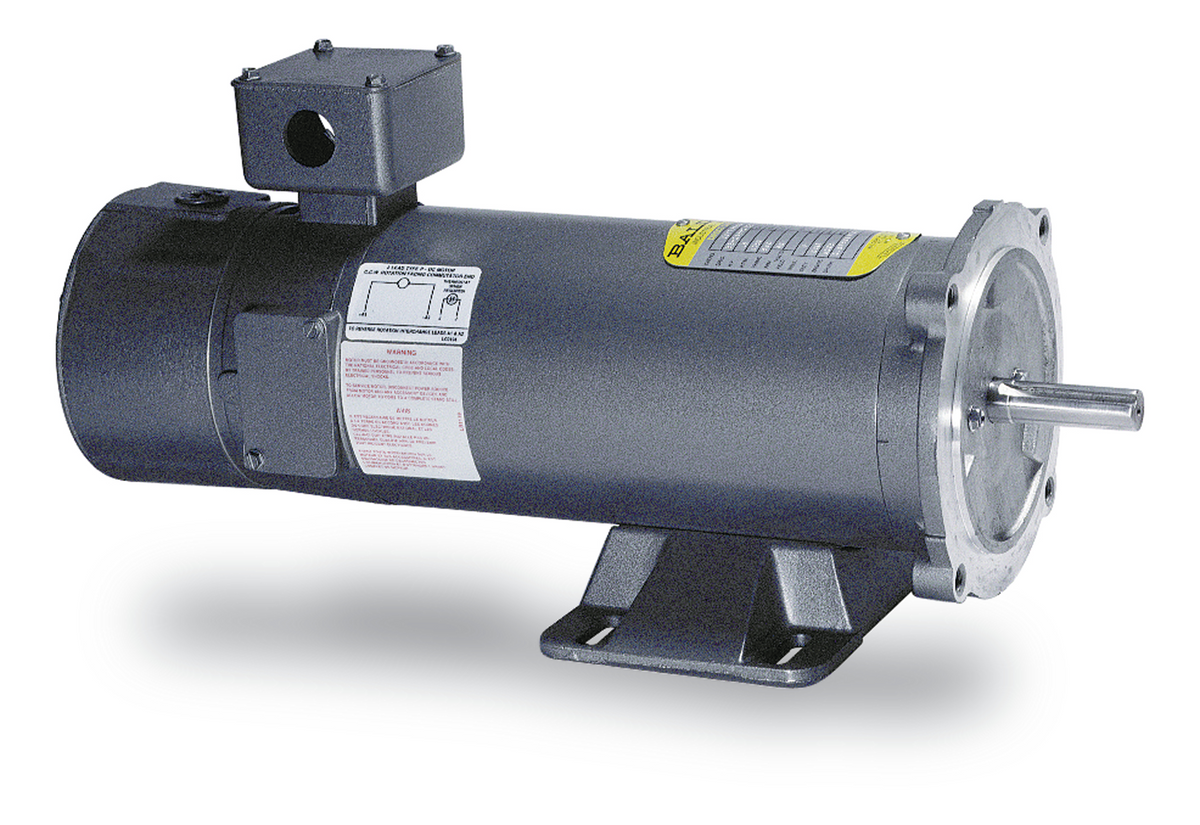

Baldor-Reliance CDPT3306 DC Electric Motor - Permanent Magnet, Brushed, 1/4 hp hp, 180 V, 1750 rpm, TENV (Totally Enclosed Non-Ventilated), 56C Frame
- Brand: Baldor-Reliance
- PartNumber: CDPT3306
- Manufacturer: Baldor-Reliance
- Label: Baldor-Reliance
Attributes
| Key | Value |
|---|
| Amps | 1.3 |
| Approvals | CSA, UL |
| Armature Current | 1.25 A, 1.3 |
| Armature Voltage | 180 V |
| Base RPM | 1,750 RPM |
| Bearings | Sealed |
| Comments | Integral 50VDC per 1000. |
| Country of Origin (subj. | United States |
| CT Speed Range | 20:1 |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | TENV |
| Enclosure Material | Steel |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 26.00 |
| Family Series | Baldor Motors, PERMANEN. |
| Frame | 56C |
| Gross Weight | 27 lbs |
| Horsepower | 1/4 hp |
| HP | 0.25, 1/4, .25 |
| Insulation Class | F |
| Item Number | CDPT3306 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 33-2657Z132G1 |
| Manufacturer Part Number | CDPT3306 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | C-Face With Base |
| Net Weight | 27 lbs |
| Overall Length | 14.05" |
| Part Number | CDPT3306 |
| Phase | DC |
| Product Series | PERMANENT MAGNET SCR |
| Product Type | DC, Integral Tachometer |
| Rotation | Reversible |
| RPM | 1700 - 1800, 1750 |
| Service Factor | 1.00 |
| Shaft Diameter | 0.625" |
| Ship Weight | 27 lbs. |
| Speed (RPM) | 1750 |
| Voltage | 180V, 180 |
| Volts | 180VDC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | CDPT3306 | 1914.44 | 1 | In Stock | | Baldor | 27.0 | 1914.44 @ 1 |
| factorysupplyoutlet.com | TO77RB | 2113.04 | 1 | In Stock | | Baldor-Reliance | | 2113.04 @ 1 |
 | Walker Industrial | CDPT3306 | 2118.33 | 1 | In Stock | | Baldor | | 2118.33 @ 1 |
 | Galco | CDPT3306-BLDR | 2118.33 | 1 | In Stock | | Baldor | 27.0 | 2118.33 @ 1 |
| motorsandcontrol.com | CDPT3306 | 2118.34 | 1 | In Stock | | Baldor Reliance | 26.0 | 2118.34 @ 1 |
 | Global Industrial | WBB388606 | 2119.0 | 1 | In Stock | | Baldor-Reliance | | 2119.0 @ 1 |
| us.rs-online.com | 72512522 | 2409.34 | 1 | In Stock | | Baldor-Reliance | | 2409.34 @ 1 |
 | pumpproducts.com | CDPT3306 | 2506.17 | 1 | In Stock | | Baldor | | 2506.17 @ 1 |
 | Zoro | G3291612 | 2546.25 | 1 | In Stock | 15 | Baldor-Reliance | | 2546.25 @ 1 |
| kirbyrisk.com | 2233609 | 2777.54 | 1 | In Stock | | Baldor | | 2777.54 @ 1 |
 | Raptor Supplies | AJ6PCQ | 6309.3737655 | 1 | In Stock | | BALDOR MOTOR | | 6309.3737655 @ 1 |
