Destaco 207-SB

B09KS7JT1B

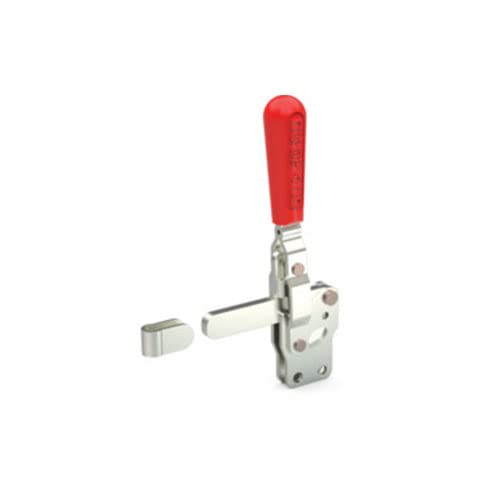

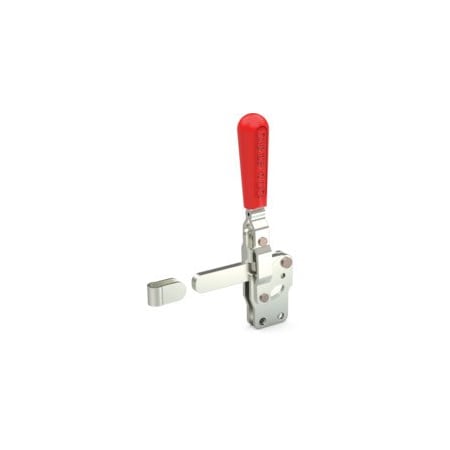

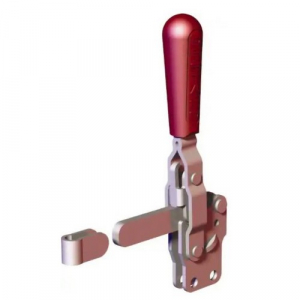

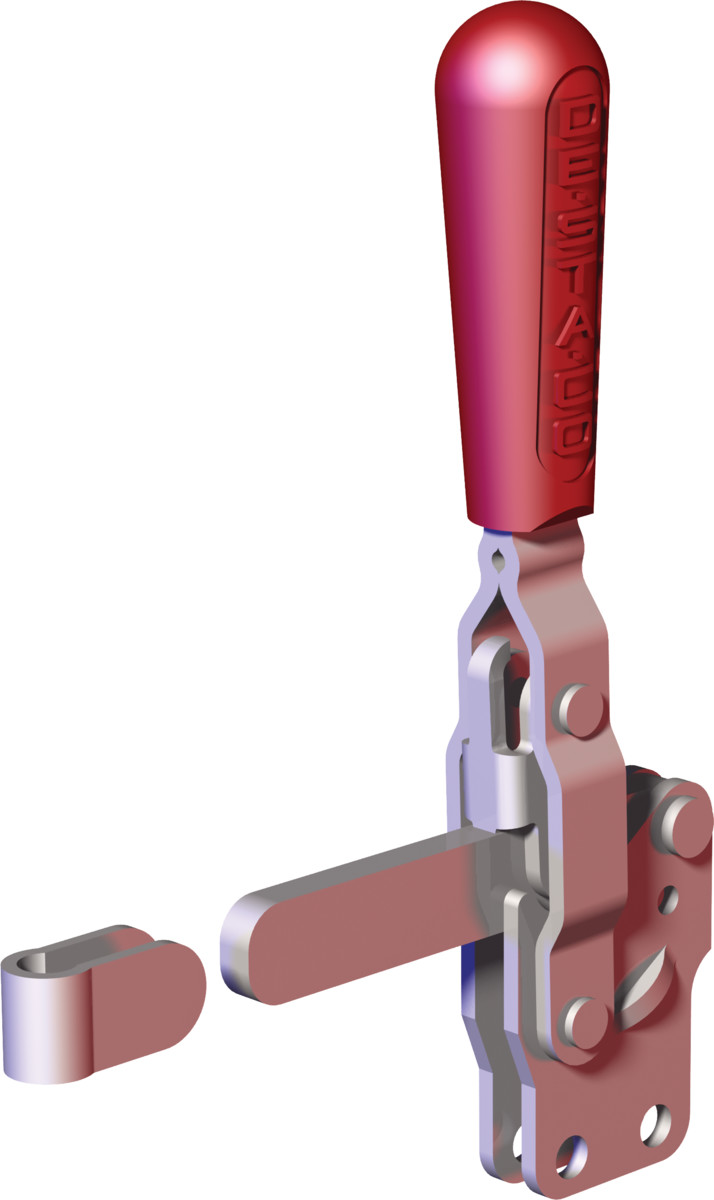

DESTACO 207-SB Series 207 Vertical Hold Down Clamp, Straight Base, Solid Bar

DESTACO 207-SB Series 207 Vertical Hold Down Clamp, Straight Base, Solid Barzoom

Attributes

Key Value
Accommodates Workpiece .No
Application - AssemblyExcellent/High
Application - Checking .Excellent/High
Application - ClosuresExcellent/High
Application - Food Proc.Fair/Medium
Application - MachiningPoor/Low
Application - WeldingPoor/Low
Application - Wood-Work.Excellent/High
Arm and Tip StyleSolid Bar with Steel Tip
Arm Length2.21 in
Arm StyleSolid Bar
AvailableYes
Bar Thickness (Decimal .0.2400
Base Mounting StyleStraight, Bar
Body MaterialSteel
Clamp Arm Length (in)2.220
Clamp Arm Opening Angle99 Degrees
Clamp Arm StyleSolid Bar
Clamp Bar Opening (+10?.99
Duty Cycle2
Fastener Thread Size1/4 in
HandleVertical
Handle DesignStandard Vertical Hand.
Handle Opening (+10?)57
Handle OrientationVertical
Height Under Arm1.55 in
Height Under Clamp Arm .1.560
Holding Capacity - Maxi.500 lbf
Includes Locking HandleNo
ItemClamp Hold-Down Action .
Locking Handle IncludedStandard
Max Arm Length2 - 3"
Max Height Under Arm1.51 - 2"
Maximum Holding Capacit.500
Mounting Holes Center t.0.75 in
Overall Depth7.48 in
Overall Length3.59 in
Overall Width0.48 in
Product FamilyManual Clamping
Product FunctionClamping
Product GroupHold Down Clamps
Product Series Descript.Vertical Clamp
Product TypeStandard, Clamp Hold-Do.
Service EnvironmentNormal
Spindle Thread SizeM8
Standard MaterialSteel
Tip MaterialNot Applicable
Toggle Lock PlusNo
Weight (lb)0.68

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB003D3MO6E9.771In StockDe-Sta-Co9.77 @ 1
thumbzoomkinequip.com207-SB22.89146Destaco22.89 @ 1
thumbzoomfreertool.comDE-STA-CO-207-SB24.041In StockDESTACO0.6824.04 @ 1
thumbzoomZoroG318960624.251In StockDe-Sta-Co0.824.25 @ 1
thumbzoomNational Supply Network4400367132.51In StockDe-Sta-Co32.5 @ 1
thumbzoomprimebuy.com207-SB39.741In StockDestaco39.74 @ 1
thumbzoomRaptor SuppliesAJ8AVK63.9347671In StockDESTACO63.934767 @ 1
