Dodge P2BSC100

B003ATAR7Y

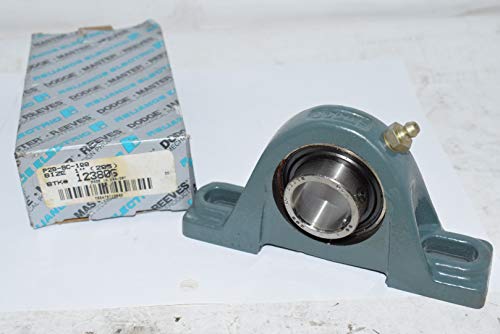

Mounted Units - Ball Brgs - DOD P2B-SC-100

Mounted Units - Ball Brgs - DOD P2B-SC-100zoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationGeneral Purpose
Ball bearing series205 series
base to bore centerline:1.4375 in
Base to center height1.4400 in, 36.576 mm
Base to Center Height1.438 Inch | 36.525 Mil.
base width:1.4 in
Bearing componentMounted Bearing
Bearing typeBall, ball
bolt center-to-center l.3.69 to 4-1/2 in
Bolt centerline range4 1/4 inch-4 1/2 inch
Bolt Diameter0.3750 in
Bolt Spacing Maximum4.5 Inch | 114.3Millime.
Bolt Spacing Minimum3.688 Inch | 93.675Mill.
Bolt to bolt max4.5000 in, 114.3 mm
Bolt to bolt min3.6900 in, 93.726 mm
Bore1 in
bore diameter:1.0000 in
Bore length1.3400 in, 34.036 mm
bore type:Round
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
duty type:Normal Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
expansion type:Non-Expansion Bearing (.
FinishPowder coated
finish/coating:Black Oxide
Global Part Number GPN522075
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
housing material:Cast Iron
Housing optionCast Iron
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.1 in
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-100
Insert typeBall Bearing
Length Thru Bore1.188 Inch | 30.17 Mill.
LockingSet Screw
locking device:Set Screw
Lubrication typeGrease
lubrication type:Lubrication Fitting
manufacturer catalog nu.123806
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max RPM7500 rpm
Max Speed4500 rpm
Measure systemImperial
Mounting Bolts3/8 Inch
Mounting MethodSet Screw
mounting:Two-Bolt Base
Nominal Bolt Center to .4.1 Inch | 105 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
overall height:2.7700 in
overall length:5.5000 in
overall width:1-11/32 in
price$ 68.59 / each
radial dynamic load cap.3146 lb
radial static load capa.1769 lb
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
seal type:Contact/Lip
SealsSingle Lip Contact
Sensor readyAdapter required
series:205
Shaft attachmentSetscrew
Shaft centerline height1 7/16 inch
Shaft diameter1.0000 in
standards met:UL, AFBMA, AGMA, ASMMA,.
Standoff housingNo
Static load capacity1769 lbf, 7868.904 N
Suitable for high tempe.No
Suitable for washdownNo
Take-up frame sizeLD-10, TS-100
titleP2B-SC-100
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm0.73
Weight / LBS1.6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingP2B-SC-10058.31In StockDODGE1.60658.3 @ 1
thumbzoomMRO Supply13169666.7913Dodge66.79 @ 1
thumbzoommotionindustries.com0055709896.491In StockDodge96.49 @ 1
