Dodge P2BSC103

B0038ATQWC

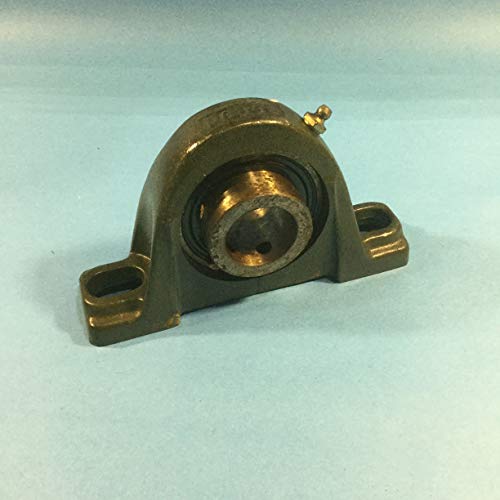

Pillow Block - 2 Bolt Pillow Block 1.188 Inch Bore Insert Type - Ball Bearing Cast Iron; P2B-SC-103

Pillow Block - 2 Bolt Pillow Block 1.188 Inch Bore Insert Type - Ball Bearing Cast Iron; P2B-SC-103zoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationGeneral Purpose
Ball bearing series206 series
Base to center height1.6300 in, 41.402 mm
Base to Center Height1.625 Inch | 41.275 Mil.
Bearing typeBall, ball
Bolt centerline range4 1/4 inch - 5 inch
Bolt Diameter0.5000 in
Bolt Spacing Maximum5 Inch | 127Millimeter
Bolt Spacing Minimum4.25 Inch | 107.95Milli.
Bolt to bolt max5.0000 in, 127.0 mm
Bolt to bolt min4.2500 in, 107.95 mm
Bore1 3/16 in
Bore length1.5200 in, 38.608 mm
BrandDODGE
CategoryPillow Block Bearings
Country of Origin (subj.United States
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
FinishPowder coated
Global Part Number GPN522068
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.1 3/16 inch
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-103
Insert typeBall Bearing
Length Thru Bore1.391 Inch | 35.331 Mil.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max RPM6500 rpm
Measure systemImperial
Mounting Bolts1/2 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .4.6 Inch | 118 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
price$ 81.11 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft centerline height1 5/8 inch
Shaft diameter1.1875 in
Standoff housingNo
Suitable for high tempe.No
Suitable for washdownNo
Take-up frame sizeLD-20,TS-250
titleP2B-SC-103
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm1.18
Weight / LBS2.6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingP2B-SC-10368.941In StockDODGE2.59668.94 @ 1
thumbzoomMRO Supply13174578.9619Dodge78.96 @ 1
thumbzoomPurvisP2B-SC-10397.941In StockDodge97.94 @ 1
motionindustries.com00557146123.651In StockDodge123.65 @ 1
thumbzoomZoroG900416892149.711In StockDodge149.71 @ 1
