Dodge P2B-SC-104

B081LG4M46

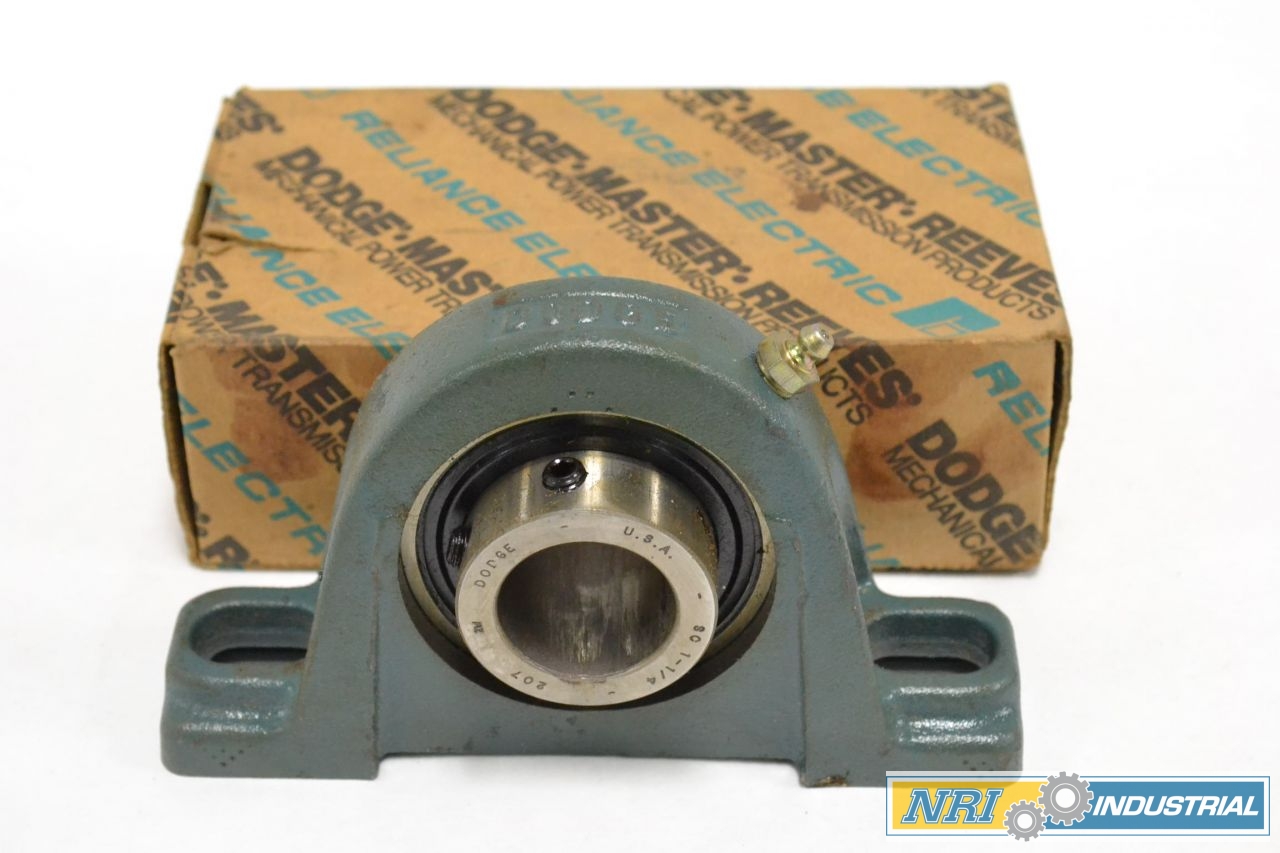

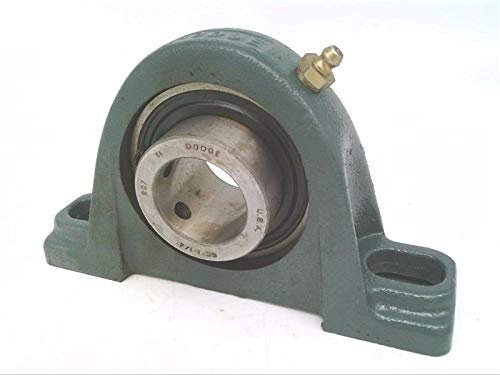

BALDOR DODGE P2B-SC-104 CAST Iron, Pillow Block Bearing, 2 Bolt Base, 1.25 INCH BORE

BALDOR DODGE P2B-SC-104 CAST Iron, Pillow Block Bearing, 2 Bolt Base, 1.25 INCH BOREzoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationGeneral Purpose
Ball bearing series207 series
Base to center height1.8800 in, 47.752 mm
Base to Center Height1.875 Inch | 47.63 Mill.
Bearing typeBall, ball
Bolt centerline range4 11/16 inch - 5 7/16 i.
Bolt Diameter0.5000 in
Bolt Spacing Maximum5.438 Inch | 138.125Mil.
Bolt Spacing Minimum4.688 Inch | 119.075Mil.
Bolt to bolt max5.4400 in, 138.176 mm
Bolt to bolt min4.6800 in, 118.872 mm
Bore1 1/4 in
Bore length1.7100 in, 43.434 mm
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
FinishPowder coated
Global Part Number GPN522064
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.1 1/4 in
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SC-104
Insert typeBall Bearing
Length Thru Bore1.531 Inch | 38.9 Milli.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
MaterialSteel
Max RPM5500 rpm
Max Speed3500 RPM
Measure systemImperial
Mounting Bolts1/2 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .5 Inch | 127 Millimeter
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
price$ 95.57 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
SealSingle lip
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft centerline height1 7/8 inch
Shaft diameter1.2500 in
Standoff housingNo
Static load capacity3461 lbf, 15395.295 N
Suitable for high tempe.No
Suitable for washdownNo
Take-up frame sizeLD-20,TS-250
titleP2B-SC-104
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm1.507
Weight / LBS4.5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialB29171554.641In StockDODGE54.64 @ 1
thumbzoomLily BearingP2B-SC-10481.231In StockDODGE3.315481.23 @ 1
thumbzoomMRO Supply13174693.031In StockDodge93.03 @ 1
