Dorian Tool CCGT-32.52-UEXL-DPC25UT

B00G2NMZ5C

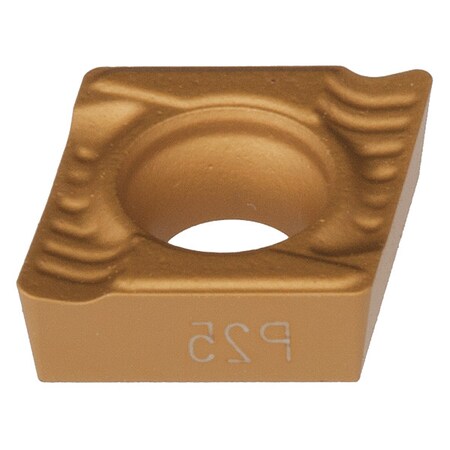

Dorian Tool HP-High Performance 7 Degrees ANSI Tungsten Carbide Precision Positive Ground Turning Insert, DPC25UT, CVD Multi Layer Coating, CCGT Style, UEXL Chipbreaker, CCGT-32.52-UEXL, 5/32" Thickness, 0.031" Nose Radius (Pack of 10)

Dorian Tool HP-High Performance 7 Degrees ANSI Tungsten Carbide Precision Positive Ground Turning Insert, DPC25UT, CVD Multi Layer Coating, CCGT Style, UEXL Chipbreaker, CCGT-32.52-UEXL, 5/32" Thickness, 0.031" Nose Radius (Pack of 10)zoom

Attributes

Key Value
ANSI CodeCCGT-32.52-UEXL
BrandDORIAN
Catalog PageN/A
Chip-BreakerYes
Chip-Breaker CodeUEX
Chip-Breaker StyleOn One Side
Clearance Angle7 Degrees, 7 ?
Coating ProcessCVD
Coolant FedCoolant Through
Corner Radius1/32 in
Country of OriginAustria
Country of Origin (subj.Austria
Cutting ApplicationUniversal Turning
Cutting DirectionLeft Hand
Cutting EdgeHoned
Cutting Edge Length9.00 mm
Depth of Cut0.0080 in to 0.1250 in
FeaturesFor Cutting Carbon and .
Finish - MachiningAl2O3+TiCN+Al2O3+TiCN
General ShapeDiamond
Hole Type40? to 60? Countersink .
Included Angle80 Degrees, 80 ?
Inscribed Circle3/8 in
Insert CodeCCGT332
Insert Holding Type40 Degrees to 60 Degre.
Insert ShapeDiamond
Insert StyleCCGT
ISO NumberCCGT-09T308-UEXL
ItemDiamond Turning Insert
Item?56MA90
Manufacturer GradeDPC25UT
Material - MachiningCarbide
Material Grade - Machin.C5-C6
Measurement SystemFractional Inch
Mfr. Model?CCGT-32.52-UEXL-DPC25UT
Number of Coolant Holes2
Number of Cutting Edges1
Primary Material Applic.Steel
Primary Material Applic.P25
RakePositive
Secondary Material Appl.Stainless Steel
Secondary Material Appl.M
ShapeRhombic
StandardsDIN 6499; JIS B 6339, D.
Thickness3/16 in
UNSPSC23171618

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG402410921.051011Dorian0.0621.0 @ 10
Grainger56MA9024.85110DORIAN24.85 @ 10
AmazonB00G2NMZ5C142.93110Dorian Tool International142.93 @ 10
