Dwyer DM-2003

B009PAME46

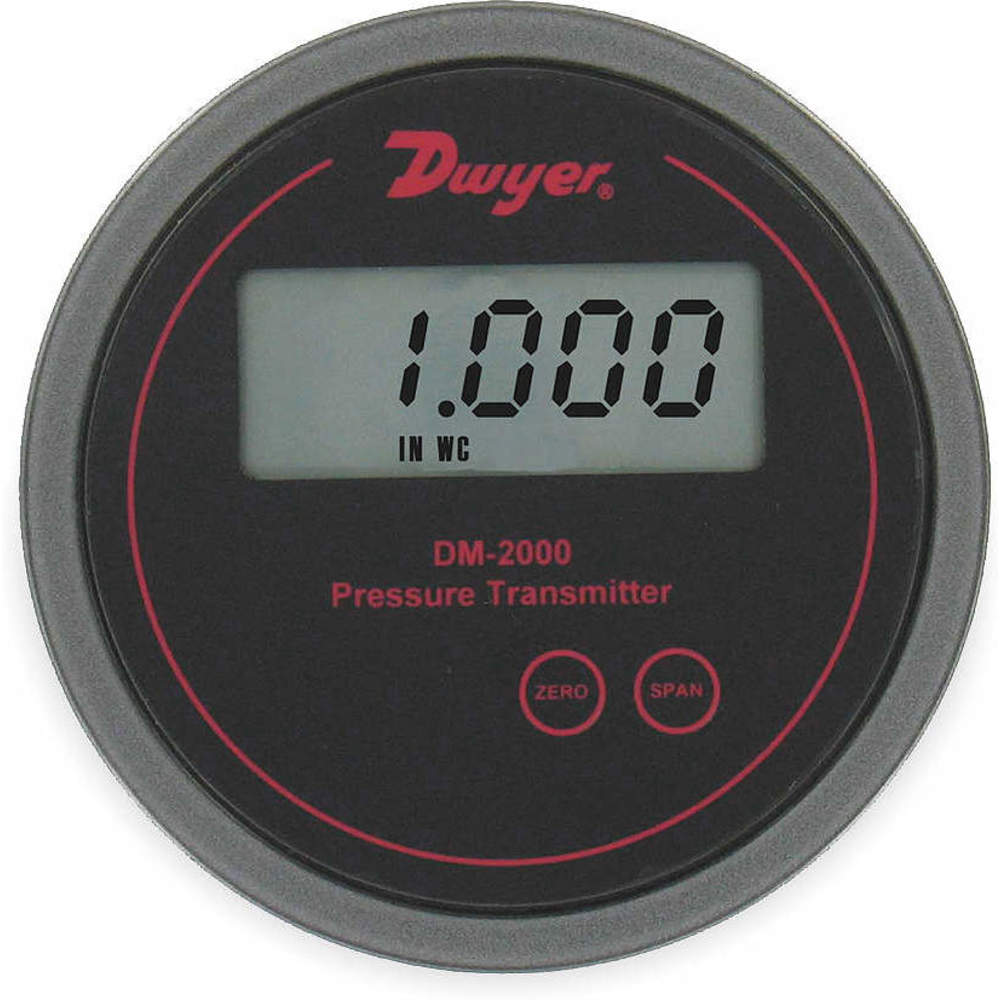

Dwyer Series DM-2000 Differential Pressure Transmitter, Black Background, 0-0.5"WC

Dwyer Series DM-2000 Differential Pressure Transmitter, Black Background, 0-0.5"WCzoom

Attributes

Key Value
Accuracy?1% F.S. at 70?F, 1 %
Accuracy - Transmitter+/-1.00% Full Scale
BrandDwyer
Connection1/8" Barbed Fitting
Current ConsumptionDC: 38 mA maximum
Display3.5 digit LCD, 0.7" hei.
Electrical ConnectionTerminal Block
Electrical ConnectionsScrew-type terminal blo.
Electrical Connections .Terminal Board
Family SeriesDwyer Instruments HVAC .
Gross Weight0 lbs
IncludesInstructions
International ShippingNo
ItemDifferential Transmitter
Item NumberDM-2003
Loop Resistance0 to 1250 ohms, DC: 0-1.
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-2003
Max Pressure10 psig
Mounting OrientationVertical
MpnDM-2003
Net Weight0.3 lbs
Operating Temp. - Trans.20 Degrees to 120 Degr.
Output4-20 mA
Output - Transmitter4 to 20mA DC
Output Accuracy+/-1% Full Scale
Output Signal4 to 20 mA
Overall Height1.812 in
Overall Length4.75 in
Overall Width4.75 in
Power Required - Transm.16 to 35V DC
Power Requirements10-35 VDC (2 wire)
Pressure Limits10 psig (0.69 bar)
Pressure Range0-0.5 in WC
Pressure Range (In. WC)0 to 0.5
Pressure Range Minor Di.0.01" WC
Process Connection1/8 in Tubing
Process Connection Size1/8 in
Process Connection Size.1/8 in
Process Connection Type.Hose Barb
Process Connections1/8" I.D. tubing
Product SeriesDM-2000
Range Units - Transmitt.in wc
Range Values - Transmit.0 to 0.50
Sensor StyleDifferential Transmitter
ServiceAir and non-combustible.
SKUZO-G0017385
Stability+1% F.S./yr
SubCategoryTest Instruments
Supply Voltage10-35 VDC
Temperature Limits20 to 120?F (-6.67 to 4.
Temperature Range20-120 ?F
Thermal Effect?0.055% F.S./?F (0.099%.
Thermal Error+/-0.055%
Transmitter TypeDifferential Transmitter
Weight4.8 oz (136 g)
Wetted MaterialsStainless Steel
Wetted Materials - Tran.Stainless Steel
Zero and Span Adjustmen.Digital push-button zer.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB009PAME46148.711In StockDwyer148.71 @ 1
thumbzoomusmegastore.comDM-2003152.91In StockDwyer0.3152.9 @ 1
thumbzoomheavydutydepot.comDM-2003152.91In StockDwyer Instruments152.9 @ 1
thumbzoomZoroG0017385153.991In StockDwyer1.14153.99 @ 1
thumbzoomindustrialzone.comDM-2003156.02In StockDwyer1.0156.0 @ 2
thumbzoomGalcoDM-2003-DWYR169.081In StockDwyer Instruments0.3169.08 @ 1
thumbzoomsimsupply.comZO-G0017385169.681In StockDwyer169.68 @ 1
thumbzoommidwestapplianceparts.comDM-2003-DW-P183.581In StockDwyer183.58 @ 1
thumbzoomRadwellDM-2003230.01In StockDWYER230.0 @ 1
thumbzoomRaptor SuppliesAC2CFU398.59226551In StockDWYER INSTRUMENTS398.5922655 @ 1
