Dwyer DM-2006

B009PAMG9E

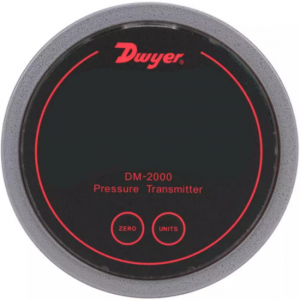

Dwyer Series DM-2000 Differential Pressure Transmitter, Black Background, 0-3"WC

Dwyer Series DM-2000 Differential Pressure Transmitter, Black Background, 0-3"WCzoom

Attributes

Key Value
Accuracy?1% F.S. at 70?F, 1 %
Accuracy - Transmitter+/-1.00% Full Scale
Best Sellers RankSee Top 100 in Industri.
Connection1/8" Barbed Fitting
Country of Origin (subj.United States
Current ConsumptionDC: 38 mA maximum
Date First AvailableOctober 11, 2012
Display3.5 digit LCD, 0.7" hei.
Electrical ConnectionTerminal Block
Electrical ConnectionsScrew Terminals, Screw-.
Electrical Connections .Terminal Board
Family SeriesDwyer Instruments HVAC .
Gross Weight0 lbs
GTIN094704491523
Housing MaterialPlastic
IncludesInstructions
ItemDifferential Transmitter
Item model numberDM-2006
Item NumberDM-2006
Loop Resistance0 to 1250 ohms, DC: 0-1.
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-2006
Max Pressure10 psig
Maximum Loop Resistance1250 Ohm
Maximum Operating Tempe.120 Degrees F
Maximum Pressure3 in wc
Minimum Operating Tempe.20 Degrees F
Minimum Pressure0 in wc
Mounting ApplicationFor Round Cutouts
Mounting OrientationVertical
Net Weight0.3 lbs
NIST Traceable Certific.No
Number of Wires2
Operating Temp. - Trans.20 Degrees to 120 Degr.
Output4-20 mA
Output - Transmitter4 to 20mA DC
Output Accuracy+/-1% Full Scale
Output Signal4 to 20 mA
Overall Height1.812 in
Overall Length4.75 in
Overall Width4.75 in
Overpressure10 psig
Package Dimensions5.9 x 5.4 x 3.1 inches;.
Power Required - Transm.16 to 35V DC
Power Requirements10-35 VDC (2 wire)
Pressure Limits10 psig (0.69 bar)
Pressure Range0-3 in WC
Pressure Range (In. WC)0 to 3
Pressure Range Minor Di.0.1" WC
Pressure Unitsin wc
Process Connection1/8 in Tubing, 1/8 in M.
Process Connection Gend.Male
Process Connection Size1/8 in
Process Connection Size.1/8 in
Process Connection TypeHose Barb
Process Connection Type.Hose Barb
Process Connections1/8" I.D. tubing
Product SeriesDM-2000
Product with faster shi.true
Range Units - Transmitt.in wc
Range Values - Transmit.0 to 3
Sensor StyleDifferential Transmitter
SeriesDM-2000
ServiceAir and non-combustible.
Shippingundefined (Fixed Shippi.
Stability+1% F.S./yr
Supply Voltage10-35 VDC
Temperature Limits20 to 120?F (-6.67 to 4.
Temperature Range20-120 ?F
Thermal Effect?0.055% F.S./?F (0.099%.
Thermal Error+/-0.055%
Transmitter TypeDifferential Transmitter
Weight4.8 oz (136 g), 4.8 oz
Wetted MaterialsStainless Steel
Wetted Materials - Tran.Stainless Steel
Zero and Span Adjustmen.Digital push-button zer.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomhomeessentialsdirect.comDM-200696.461In StockDwyer Instruments96.46 @ 1
thumbzoomindustrialstores.comDM-2006145.311In Stock10Dwyer145.31 @ 1
thumbzoomusmegastore.comDM-2006152.91In StockDwyer0.3152.9 @ 1
thumbzoomheavydutydepot.comDM-2006152.91In StockDwyer Instruments152.9 @ 1
us.rs-online.com72201778154.31In StockDwyer Instruments154.3 @ 1
TranscatDM-2006157.01In StockDWYER157.0 @ 1
thumbzoomGalcoDM-2006-DWYR169.081In StockDwyer Instruments0.3169.08 @ 1
ZoroG0017412191.971In Stock26Dwyer1.17191.97 @ 1
thumbzoomRadwellDM-2006230.01In StockDWYER230.0 @ 1
