Dwyer DM-2012

B007IAM4GS

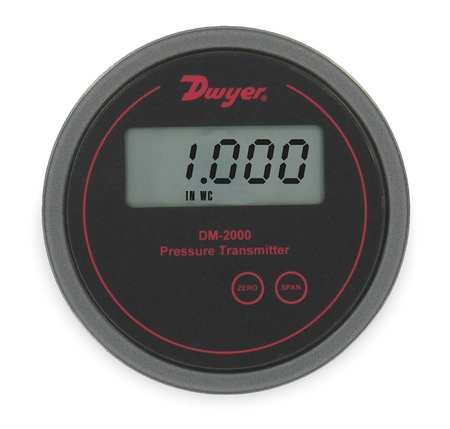

Pressure Transmitter, 0.25- 0- 0.25 In WC

Pressure Transmitter, 0.25- 0- 0.25 In WCzoom

Attributes

Key Value
Accuracy?1% F.S. at 70?F, 1 %
Accuracy - Transmitter+/-1.00% Full Scale
Connection1/8" Barbed Fitting
Country of Origin (subj.United States
Current ConsumptionDC: 38 mA maximum
Display3.5 digit LCD, 0.7" hei.
Electrical ConnectionTerminal Block
Electrical ConnectionsScrew Terminals, Screw-.
Electrical Connections .Terminal Board
Family SeriesDwyer Instruments HVAC .
Gross Weight0 lbs
Housing MaterialPlastic
IncludesInstructions
ItemDifferential Transmitter
Item NumberDM-2012
Loop Resistance0 to 1250 ohms, DC: 0-1.
ManufacturerDwyer Instruments
Manufacturer Part NumberDM-2012
Max Pressure10 psig
Maximum Loop Resistance1250 Ohm
Maximum Operating Tempe.120 Degrees F
Maximum Pressure0.25 in wc
Minimum Operating Tempe.20 Degrees F
Minimum Pressure-0.25 in wc
Mounting ApplicationFor Round Cutouts
Mounting OrientationVertical
Net Weight0.3 lbs
NIST Traceable Certific.No
Number of Wires2
Operating Temp. - Trans.20 Degrees to 120 Degr.
Output4-20 mA
Output - Transmitter4 to 20mA DC
Output Accuracy+/-1% Full Scale
Output Signal4 to 20 mA
Overall Height1.812 in
Overall Length4.75 in
Overall Width4.75 in
Overpressure10 psig
Power Required - Transm.16 to 35V DC
Power Requirements10-35 VDC (2 wire)
Pressure Limits10 psig (0.69 bar)
Pressure Range0-0.25 in WC
Pressure Range (In. WC)0.25 to 0 to 0.25
Pressure Range Minor Di.0.01" WC
Pressure Unitsin wc
Process Connection1/8 in Tubing, 1/8 in M.
Process Connection Gend.Male
Process Connection Size1/8 in
Process Connection Size.1/8 in
Process Connection TypeHose Barb
Process Connection Type.Hose Barb
Process Connections1/8" I.D. tubing
Product SeriesDM-2000
Range Units - Transmitt.in wc/in wc
Range Values - Transmit.-0.25 to 0 to 0.25
Sensor StyleDifferential Transmitter
SeriesDM-2000
ServiceAir and non-combustible.
Stability+1% F.S./yr
Supply Voltage10-35 VDC
Temperature Limits20 to 120?F (-6.67 to 4.
Temperature Range20-120 ?F
Thermal Effect?0.055% F.S./?F (0.099%.
Thermal Error+/-0.055%
Transmitter TypeCompound Transmitter
Weight4.8 oz (136 g), 4.8 oz
Wetted MaterialsStainless Steel
Wetted Materials - Tran.Stainless Steel
Zero and Span Adjustmen.Digital push-button zer.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comDM-2012159.81In StockDwyer0.3159.8 @ 1
thumbzoomheavydutydepot.comDM-2012159.81In StockDwyer Instruments159.8 @ 1
us.rs-online.com72201779161.171In StockDwyer Instruments161.17 @ 1
thumbzoomGalcoDM-2012-DWYR176.621In StockDwyer Instruments0.3176.62 @ 1
ZoroG0017437176.621In StockDwyer1.15176.62 @ 1
thumbzoommidwestapplianceparts.comDM-2012-DW-P191.761In StockDwyer191.76 @ 1
thumbzoomindustrialstores.comDM-2012205.361In Stock10Dwyer205.36 @ 1
thumbzoomRadwellDM-2012240.01In StockDWYER240.0 @ 1
Grainger2HLY9266.01In Stock15DWYER INSTRUMENTS266.0 @ 1
