E-Switch KAS2102ET

B0748MWJ3C

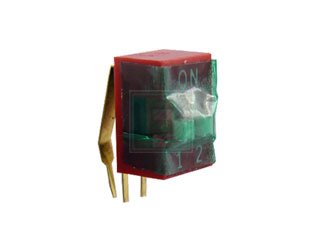

E-SWITCH KAS2102ET KAS Series SPST 2 Position Extended Actuator Right Angle Slide DIP Switch - 70 item(s)

E-SWITCH KAS2102ET KAS Series SPST 2 Position Extended Actuator Right Angle Slide DIP Switch - 70 item(s)zoom

Attributes

Key Value
Actuator LevelRaised
Actuator TypeSlide (Standard)
Base Product NumberKAS2102
Body MaterialPolybutylene Terephthal.
CategorySwitches
CircuitSPST
Contact FinishGold
Contact MaterialPhosphor Bronze
Current Rating (Amps)25mA
DescriptionSWITCH SLIDE DIP SPST 2.
Detailed DescriptionDip Switch SPST 2 Posit.
Digi-Key Part NumberEG4507-ND
Electrical Life2,000 Cycles
FeaturesTape Seal
Height Above Board0.390" (9.90mm)
Length0.254" (6.44mm)
ManufacturerE-Switch
Manufacturer Product Nu.KAS2102ET
Mechanical Life2,000 Cycles
MfrE-Switch
Mounting TypeThrough Hole, Right Ang.
Number of Positions2
Operating Temperature-40?C ~ 85?C
PackageTube
Part StatusActive
Pitch0.100" (2.54mm), Full
Product StatusActive
SeriesKAS
Termination StylePC Pin
Voltage Rating24VDC
WashableYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark15N76390.856105070E-SWITCH0.856 @ 1050
Hawk ElectronicsKAS2102ET0.934105070E-Switch0.934 @ 1050
TMEKAS2102ET1.11105070E-SWITCH1.11 @ 1050
thumbzoomDigi-Key16282441.80528127679E-Switch1.80528 @ 70
thumbzoomRadwellKAS2102ET2.25170E SWITCH2.25 @ 70
AmazonSCB0748MWJ3C102.13170E-Switch102.13 @ 70
