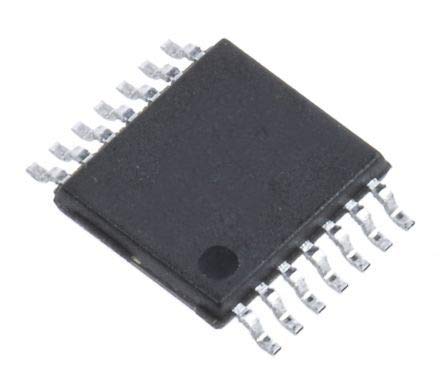

Fairchild Semiconductor 74ACT32MTC

B005T7NJYI

74ACT32MTC

74ACT32MTCzoom

Attributes

Key Value
Base Product Number74ACT32
BrandON Semiconductor
CategoryIntegrated Circuits (IC.
Current - Output High, .24mA, 24mA
Current - Quiescent (Ma.4 ?A
DimensionsDimensions
Features-
HeightHeight
Input TypeTTL
Length5.1mm
Logic FamilyACT
Logic FunctionLogic Function
Logic Level - High2V
Logic Level - Low0.8V
Logic TypeOR Gate
Max Propagation Delay @.9ns @ 5V, 50pF
Maximum High Level Outp.-24mA
Maximum Low Level Outpu.Maximum Low Level Outpu.
Maximum Operating Suppl.Maximum Operating Suppl.
Maximum Operating Tempe.+85 ?C
Maximum Propagation Del.10 ns @ 50 pF
Mfronsemi
Minimum Operating Suppl.4.5 V
Minimum Operating Tempe.-40 ?C
Mounting TypeSurface Mount
Number of Circuits4
Number Of Elements4
Number of Inputs2
Number of Inputs per Ga.2
Operating Temperature-40?C ~ 85?C
PackageTube
Package / Case14-TSSOP (0.173", 4.40m.
Package TypeTSSOP
Part StatusObsolete
Pin CountPin Count
Propagation Delay Test .50pF
Series74ACT
StockStock
Supplier Device Package14-TSSOP
Voltage - Supply4.5V ~ 5.5V
Width4.5mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Radwell74ACT32MTC0.252350400FAIRCHILD SEMICONDUCTOR0.25 @ 2350
thumbzoomRS Delivers186-82400.43825175ON Semiconductor0.438 @ 25
Newark74AK46170.4591310217ONSEMI0.459 @ 1000
Digi-Key9781480.839510001041onsemi0.8395 @ 1
AmazonSCB005T7NJYI64.661217Fairchild Semiconductor0.00062564.66 @ 1
