GRAINGER APPROVED 4FMX6

B007IBYOD8

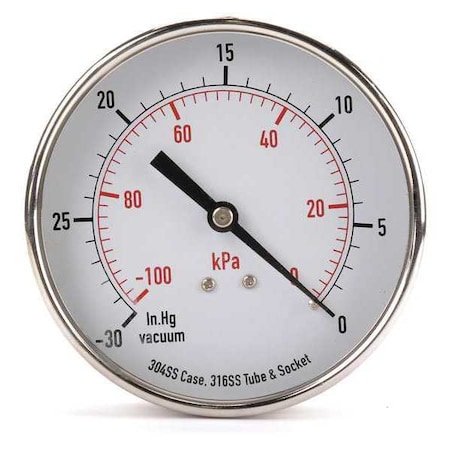

Vacuum Gauge, Test, 3-1/2 In

Vacuum Gauge, Test, 3-1/2 Inzoom

Attributes

Key Value
Accuracy+/-3-2-3%
Accuracy ScaleMid-Scale
Ambient Operating Tempe.-40 Degrees to 150 Deg.
ApplicationTest and Measurement
Basic Gauge Case Materi.Stainless Steel
Basic Gauge Lens Materi.Plastic
Basic Gauge Sensor Mate.Stainless Steel
Basic Gauge Socket Mate.Stainless Steel
Basic Gauge Wetted PartsStainless Steel
Bezel MaterialCrimped Stainless Steel
Blowout Safety BackNo
Calibration Certificate.No
Case ColorSilver
Case Material - GaugeStainless Steel
Cleaned for Oxygen Serv.No
Connection LocationBack
Connection Size1/4" NPT, 1/4 in NPT
Country of Origin (subj.China
Dial ColorWhite
Dry Dampening FeatureNone
Field FillableNo
Freeze Resistant Moveme.No
Gauge Accuracy+/-3-2-3%
Gauge ApplicationCorrosion-Resistant Cas.
Gauge Case ColorStainless Steel
Gauge Case LiquidNone
Gauge Case Material304 Stainless Steel
Gauge Connection Locati.Center Back
Gauge Connection Size1/4 in, 1/4"
Gauge Connection TypeMNPT
Gauge Lens MaterialAcrylic
Gauge Mounting MethodFront Flange
Gauge Nominal Dial Size3-1/2", 3 1/2 in
Gauge Panel MountableNo
Gauge Primary Range Sma.1
Gauge Primary Range Uni.In. Hg, in Hg
Gauge Primary Range Val.-30 - 0, -30 to 0
Gauge Secondary Range U.kPa
Gauge Secondary Range V.-100 to 0
Gauge Sensor Material316 Stainless Steel
Gauge Socket Material316 Stainless Steel
Gauge Wetted PartsStainless Steel
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
IP/NEMA RatingNot Rated
ItemVacuum Gauge, Commercia.
Lens MaterialAcrylic
Lens Material - GaugePlastic
Liquid FilledNo
Liquid-Filled CaseNo
Nominal Dial Size3 1/2 in
Non-SparkingNo
Operating Temp. Range-40 Degrees to 150 Deg.
Panel-MountableNo
Pressure and Vacuum Gau.Vacuum Gauge
Pressure Gauge TypeGeneral Purpose Dial Pr.
Pressure Range30 to 0 in Hg
Pressure Range TypeVacuum
Primary Graduations1
Primary Pressure Range30 to 0
Primary Scale Minor Gra.1
Primary Scale Unitsin Hg
Process Connection1/4 in NPT Male
Process Connection Gend.Male
Process Connection Loca.Center Back
Process Connection Size1/4 in
Process Connection TypeNPT
Range30 to 0" Hg Vac, -100 t.
Removable BezelNo
Scale TypeDual
Secondary Pressure Range-100 to 0
Secondary Range-100 to 0 kPa
Secondary Scale UnitskPa
Sensor Material316 Stainless Steel
Smallest Graduation1" Hg, 1 in Hg
Socket Material316 Stainless Steel
Vibration ResistanceNone

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG004205218.01In StockZoro Select0.418.0 @ 1
grainger.caGGF4FMX661.172310781In StockGRAINGER APPROVED0.461.17231078 @ 1
