Hubbell HBL7486N

B000LESA4S

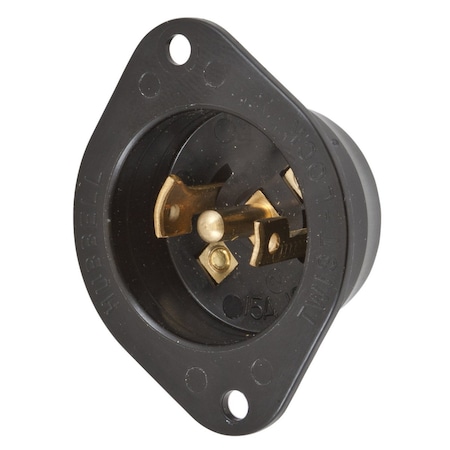

HUBBELL HBL7486N AC Flanged Inlet NEMA ML-3P Male Black Nylon

HUBBELL HBL7486N AC Flanged Inlet NEMA ML-3P Male Black Nylonzoom

Attributes

Key Value
Amperage15 A
Amperage Rating15A
Amps15A
ApplicationHeavy Duty Industrial
ApprovalsUL
AWG Range#18 AWG to #14 AWG
Body TypeStraight
BrandMidget Twist-Lock
ColorBlack
Color FamilyBlack
ConnectivityScrew terminals
Corrosion ResistantNo
Country of OriginUS - United States
Current / amperage rati.15 A
Current Rating15 A
Current rating15 A
Dielectric strengthWithstands 2,000V minim.
Dimensions2.06 in x 1.63 in x 0.9.
Display SizeMidget Locking
Display TypeMidget Locking
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
Flange MaterialBlack Nylon
GradeIndustrial
Gross Weight0.05 lbs
Height0.94 in., 0.94 in
InsulationInsulated Body
IP RatingIP20 Suitability
Isolated GroundNo
ItemFlanged Inlet
Item NumberHBL7486N
Length2.06 in, 2.06 in.
Lock TypeTwist-lock
ManufacturerHubbell
Manufacturer Part NumberHBL7486N
MaterialNylon, Nickel-plated Br.
Material - mounting har.Screw Mounting
NEMA ConfigurationML-3P
Nema RatingML-3P
Net Weight0.05 lbs
No. of Poles3
No. of Wires3
Number of poles3-Pole
Number of Poles3, 3-Pole
Number of wires3-Wire
Number of Wires3
Operating Temp.Maximum Continuous 75A .
Operating temperatureMaximum continuous 75C .
Phase1, Single Phase
Rated Voltage125/250V
Special FeaturesMolded In or Stamped On
StandardCertified to CSA C22.2 .
StandardsCertified for current i.
Temperature rating-40 C w/o impact, -25 w.
Terminal DesignationsTerminals identified in.
TypeFlanged Inlet
UNSPSC39121406
UPC Code783585237459
Voltage125/250 V, 125/250V AC
Voltage rating descript.125/250 V
WatertightNo
Weight (Lbs.)0.05
Width1.63 in., 1.63 in
Width (in)1.63
Wire size#18 AWG to #14 AWG
Wire Size15A #14 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL7486N14.71112HUBBELL14.71 @ 1
thumbzoomAmazonB00DJUHEO815.71In StockHubbell15.7 @ 1
thumbzoomZoroG70070246118.891In StockHubbell Wiring Device-Kellems0.0518.89 @ 1
Sager ElectronicsHBL7486N19.691In StockHubbell Wiring Device-Kellems19.69 @ 1
thumbzoomMRO Supply102537019.792In StockHubbell Wiring19.79 @ 2
thumbzoomGalcoHBL7486N-HBBL19.931In StockHubbell0.0519.93 @ 1
us.rs-online.com7114717824.721In StockHubbell Wiring Device-Kellems24.72 @ 1
thumbzoomCarlton Bates Company7835852374524.841In StockHUBBELL24.84 @ 1
LCOMP7835852374524.841In StockHubbell Wiring Device-Kellems24.84 @ 1
thumbzoomRadwellHBL7486N26.011HUBBELL KELLEMS26.0 @ 1
Graybar8812754326.7681In StockHubbell Wiring Device - Kellems26.768 @ 1
thumbzoomNewark14C569540.171In StockHUBBELL WIRING DEVICES40.17 @ 1
kirbyrisk.com180042741.661In StockHubbell41.66 @ 1
thumbzoomebay.com_plccenterHBL7486N122.991In StockHubbell122.99 @ 1
thumbzoomebay.com_zorotoolsHBL7486N125.491In StockHubbell125.49 @ 1
