Intermatic FM1D14-24U

B00I506Z10

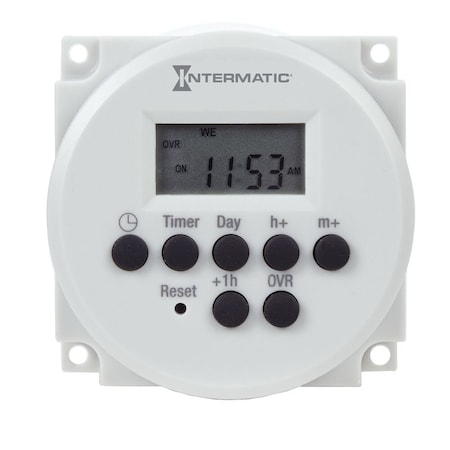

Grasslin by Intermatic FM1D14-24U Digital Timer, One-Circuit Panel Mount, 24VAC/VDC, 50/60Hz

Grasslin by Intermatic FM1D14-24U Digital Timer, One-Circuit Panel Mount, 24VAC/VDC, 50/60Hzzoom

Attributes

Key Value
Action1 x SPDT
Amperage Rating12 A
ApplicationPumps, Fans, Heaters, H.
ApprovalscURus
Batteries Required?No
Battery TypeRechargeable
Best Sellers Rank#810,640 in Tools & Hom.
BrandINTERMATIC
Catalog NumberFM1D14-24U
ColorColor
Connection1/4 IN Quick Connect
Contact Configuration1 NO/1 NC
Contact Form1NO-1NC, SPDT
Contact Rating15 AMP @ 277 VAC (Gener.
Country of OriginChina
Customer Reviews4.4 out of 5 stars3 rat.
Date First AvailableJanuary 30, 2014
Description:DGTL TMR,24V,14 SET
Dimensions60 mm H x 60 mm W x 32 .
Display TypeLCD
Electrical ConnectionsQuick-Connect
Family SeriesIntermatic Timers, FM1D.
Gross Weight0.27 lbs
Horsepower1/2, 1 hp
Included ComponentsFM1D14-24U
Indicator LightYes
ItemTime 24Hr7Day 24Vac/Dc .
Item Dimensions LxWxH1.26 x 2.36 x 2.36 inch.
Item model numberFM1D14-24U
Item NumberFM1D14-24U
Item Package Quantity1
Item TypeOne Circuit Electronic
Item Weight3.2 ounces
Made in USANo
ManufacturerINTERMATIC, Intermatic,.
Manufacturer Part NumberFM1D14-24U
Maximum Time Preset7 Days; 24 Hours
MemoryBattery Maintained
MFG Part #:FM1D14-24U
MountingSurface, Panel
Mounting TypePanel
Net Weight0.17 lbs
Nominal Voltage24 VAC, 24 VDC
Number of Handles1
Number of Poles1
Operating Temperature-40 to +131 DEG F, -40 .
Operating Voltage24 Volts, 24 VAC;24 VDC
Operation Mode24 hr/7 days
Output(1) SPDT
Part NumberFM1D14-24U
Plug Profile?Panel Mount
Product Dimensions1.26 x 2.36 x 2.36 inch.
Product SeriesFM1D14
Product with faster shi.true
SeriesFM1D14, FM1D14 Series
Shippingundefined (Fixed Shippi.
Size2.36 HEIGHT X 2.36 WIDT.
Special FeaturesFeatures: 14 Setpoint P.
StandardcULus Recognized E10694.
Sub BrandGrasslin
Supplier:INTERMATIC
Temperature Rating-40 to 131 deg F
TerminationQuick Connect
Time FormatDays;Hours;Minutes
Time Setting1 min to 24 hr/7 days
Timing ActivationPush Button
Timing Range1 MIN - 24 HR/7 DAYS
TypeTimer, 1-Channel Digital
UPC078275142794
UPC Code078275142794
UPC:078275142794
Voltage Rating24, 24 VAC/VDC
Warranty DescriptionSee Manf Description
Wattage1000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
westsidewholesale.comFM1D14-24U87.841In StockIntermatic87.84 @ 1
thumbzoomturtle.comINT FM1D14-24U94.241In StockIntermatic94.24 @ 1
thumbzoomgordonelectricsupply.comFM1D14-24U100.41In StockINTERMATIC100.4 @ 1
thumbzoombigfrogsupply.comFM1D14-24U103.241In StockIntermatic103.24 @ 1
Hawk ElectronicsFM1D14-24U104.91In StockIntermatic104.9 @ 1
hvacdiscountstore.comINT--FM1D14-24U121.481In StockINTERMATIC121.48 @ 1
steinerelectric.com761866123.681In StockIntermatic123.68 @ 1
kscdirect.comINT FM1D14-24U131.11In StockINTERMATIC131.1 @ 1
thumbzoomindustrialstores.comFM1D14-24U136.571In Stock26Intermatic136.57 @ 1
thumbzoomPlatt.com0125719136.671In StockIntermatic136.67 @ 1
thumbzoomVoomi SupplyFM1D14-24U137.681In StockIntermatic137.68 @ 1
thumbzoomhomeessentialsdirect.comFM1D14-24U138.661In StockIntermatic, Inc.0.2138.66 @ 1
us.rs-online.com70357204141.411In StockIntermatic141.41 @ 1
thumbzoommidwestapplianceparts.comFM1D14-24U-IN-P143.181In StockIntermatic143.18 @ 1
thumbzoomGalcoFM1D14-24U-TRMC145.681In StockIntermatic0.27145.68 @ 1
thumbzoomcrescentelectric.com71531150.351In StockIntermatic150.35 @ 1
thumbzoomZoroG3212568166.871In StockIntermatic1.0166.87 @ 1
thumbzoomimprovedepot.com989648175.81In StockIntermatic175.8 @ 1
