Johnson Controls T-4506-204

mpnT-4506-204
brandname: Johnson Controls
manufacturername: Johnson Controls

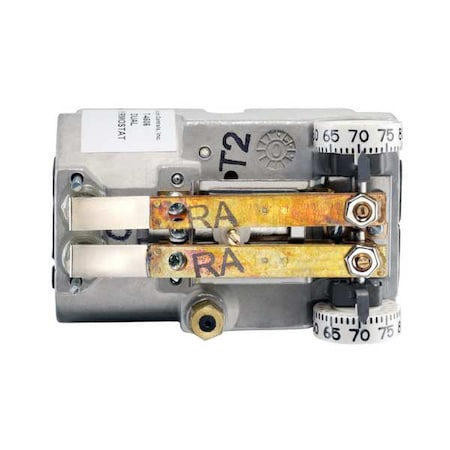

Pneumatic Thermostat,Dual Temperature,Heating and Cooling,2 Pipe

Brand: Johnson Controls
PartNumber: T-4506-204
Model: T-4506-204
Manufacturer: JOHNSON CONTROLS
Label: JOHNSON CONTROLS

Attributes

Key	Value
1 Pipe / 2 Pipe	2 Pipe
Action	Direct
Action Type - Pneumatic.	Direct Acting
Air Connection Outside .	1/8 in
Air Connections	5/32 in Barb
Air Consumption	20 scim
Air Flow Capacity	400 scim
Air Flow Output	High Volume
Application	Heat or Cool
Best Sellers Rank	See Top 100 in Industri.
Brand	Johnson Controls
Comments	Vertical Mounting
Control Air Pressure	3 to 15 psi
Control Air Pressure Se.	13 psig (Day)/ 25 psig .
Control Type	Exposed Dial
Cover Included	No
Current Stock	19
Date First Available	July 5, 2012
Depth	1 3/4 in
Differential Type	Adjustable
Family Series	Johnson Controls Thermo.
Fitting Connection	Barbed 5/32 in
Gross Weight	0.4 lbs
Heating / Cooling	Heating and Cooling
Height	2 3/32 in
Includes Cover	No
International Shipping	No
Is Discontinued By Manu.	No
Item	Pneumatic Thermostat
Item model number	T-4506-204
Item Number	T-4506-204
Key Features	Element Identification .
Manual Indexing Switch	No
Manufacturer	Johnson Controls, Johns.
Manufacturer Part Number	T-4506-204
Max. Air Pressure	25 psi
Max. Ambient Temp.	135 Degrees F
Maximum Air Pressure	25 psig
Maximum Control Tempera.	85 Degrees F
Minimum Control Tempera.	55 Degrees F
Mounting Direction	Vertical
Mounting Location	Wall
Mounting Style	Vertical
Mpn	T-4506-204
Net Weight	0.0624 lbs
No. of Pipes	2 Pipe
Number of Dials	Dual
Number of Pipes	2
Overall Depth	1 3/4 in
Overall Height	2 1/8 in
Overall Width	3 1/8 in
Pneumatic Thermostat Ty.	Day/Night
Product Series	T-4506 Dual Temperature.
Product with faster shi.	true
Reverse Acting / Direct.	Direct Acting
Sensor Type	Bi-Metallic Spring
Setpoints	Day/Night
Shipping	undefined (Fixed Shippi.
Single Temp. / Dual Tem.	Dual Temperature
SKU	ZO-G6935984
Temp Setting Range (F)	55-85 ?F
Temp. Control Range	55 Degrees to 85 Degre.
Temperature Output Sett.	Dual Temperature
Temperature Scale	Celsius/Fahrenheit
Temperature Sensitivity	0.75 to 4.0 psig/ Degre.
Temperature Settings	Dual Temperature
Thermostat Action	Direct - 15 psig (Day),.
Thermostat Application	Heating and Cooling
Throttling Range	1 to 5 psi
Weight	2.00, 0.40
Width	3 1/8 in
