Johnson Controls T-4506-209

mpnT-4506-209
brandname: JOHNSON CONTROLS
manufacturername: JOHNSON CONTROLS

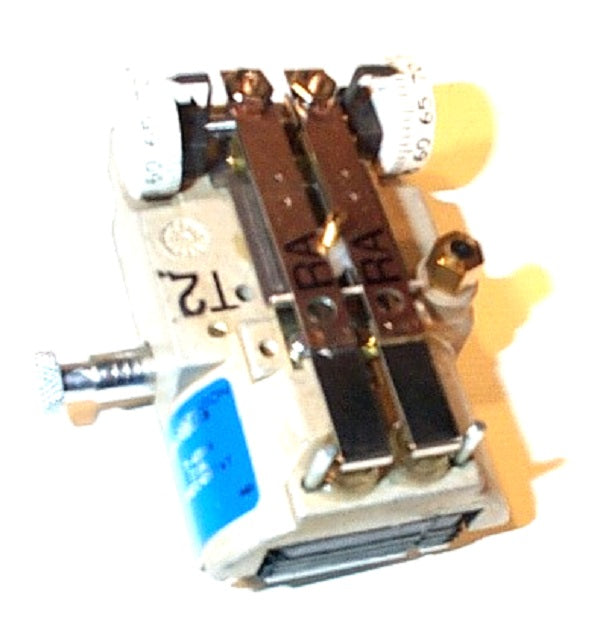

Johnson Controls T-4506-209 Series T-4506 Dual Temperature Thermostat with Indexing Switch, Switchover at 17 psig, Reverse Acting, Horizontal Mounting

Brand: Johnson Controls
PartNumber: T-4506-209
Model: T-4506-209
PackageQuantity: 1
Binding: Misc.
Manufacturer: Johnson Controls Inc
Label: Johnson Controls Inc

Attributes

Key	Value
Action	Reverse
Air Connection Outside .	1/8 in
Air Consumption	20 scim
Air Flow Capacity	400 scim
Air Flow Output	High Volume
Application	Heat or Cool
Brand	Johnson Controls
Comments	Horizontal Mounting
Control Air Pressure Se.	13 psig (Day)/ 25 psig .
Control Type	Dial, Exposed Dial
Country of Origin	USA
Cover Included	No
Date First Available	July 5, 2012
Differential Type	Adjustable
Family Series	Johnson Controls Thermo.
Fitting Connection	Barbed 5/32 in
Gross Weight	0 lbs
Includes Cover	No
Item	Pneumatic Thermostat
Item model number	T-4506-209
Item Number	T-4506-209
Item Weight	4 Pounds
Key Features	Element Identification .
Manual Indexing Switch	Yes
Manufacturer	Johnson Controls, Johns.
Manufacturer Part Number	T-4506-209
Maximum Air Pressure	25 psig
Maximum Control Tempera.	85 Degrees F
Minimum Control Tempera.	55 Degrees F
Mounting Direction	Horizontal
Mounting Direction/Incl.	Horizontal, No
Mounting Location	Wall
Net Weight	0 lbs
Number of Dials	Dual
Number of Pipes	2
Number of Pipes/Air Flo.	2 Pipes, High Volume
Overall Depth	2 3/4 in
Package Dimensions	4 x 4 x 4 inches; 0.01 .
Pneumatic Thermostat Ty.	Day/Night
Pneumatic Thermostat Ty.	Day/Night, With Manual .
Product Series	T-4506 Dual Temperature.
Product with faster shi.	true
Sensor Type	Bi-Metallic Spring
Setpoints	Day/Night
Shipping	undefined (Fixed Shippi.
Temp Setting Range (F)	55-85 ?F
Temperature Control Ran.	55 Degrees to 85 Degre.
Temperature Scale	Celsius/Fahrenheit
Temperature Sensitivity	0.75 to 4.0 psig/ Degre.
Temperature Settings	Dual Temperature
Thermostat Action	Reverse - 15 psig (Day).
Weight	0.50, 2.00
