Koyo B-86

mpnB-86
brandname: Koyo
manufacturername: Koyo

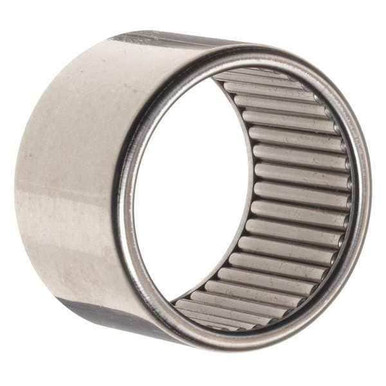

Koyo B-86 Needle Roller Bearing, Full Complement Drawn Cup, Open, Inch, 1/2" ID, 11/16" OD, 3/8" Width, 5500rpm Maximum Rotational Speed

Koyo B-86 Needle Roller Bearing, Full Complement Drawn Cup, Open, Inch, 1/2" ID, 11/16" OD, 3/8" Width, 5500rpm Maximum Rotational Speed

zoom

Brand: Koyo
PartNumber: B-86
Model: B-86
PackageQuantity: 1
Binding: Misc.
Manufacturer: Koyo Torrington
Label: Koyo Torrington

Attributes

Key	Value
Application	Automobile Field, Drive.
Bearing Industry Number	86
Bearing Type	Drawn Cup Needle
Bore	0.5 Inch \| 12.7 Millime.
Bore Dia. (In.)	0.5 in
Bore Dia. (mm)	12.7 mm
Bore Diameter	1/2 in
Brand	KOYO
Cage Material	Steel
Category	Needle Non Thrust Rolle.
Closed End	No
Closure	Open
Component	Roller Assembly with Ou.
Current Stock	22
Dynamic Load Capacity (.	1,540 lb
Dynamic Load Capacity (.	6.85 N
Dynamic Load Rating	6.87 kN
EAN	0605790185014
Enclosure	Open
Global Part Number GPN	591798
Harmonized Tariff Code	8482.40.00.00
Inch - Metric	Inch
Inner Diameter	0.5" (12.7mm)
International Shipping	No
Item	Needle Roller Bearing
Lead Time	Expected to ship in 1-2.
Manufacturer Name	KOYO
Material	Steel
Max. RPM	5,500 RPM
Mpn	B-86
Number of Rows	One
Number of Rows of Rolle.	Single Row
Outer Diameter	0.688" (17.5mm)
Outside Dia. (In.)	0.688 in
Outside Dia. (mm)	17.463 mm
Outside Diameter	0.688 Inch \| 17.475 Mil.
Overall Width	0.375" (9.5mm), 0.375 in
price	$ 4.77 / each
Retainer	No
Roller Material	Alloy Steel
RPM	5600
Seal Type	Open
Self Aligning	No
Separable	No
Series	Inch Series
SKU	ZO-G9141447
Special Features	Snap Ring
Static Load Capacity (L.	2,280 lb
Static Load Capacity (N)	10.1 N
Static Load Rating	10.2 kN
Static Radial Load Capa.	2,290 lbf
SubCategory	Power Transmission
Temp. Range (F)	-4 Degrees to +248 Deg.
Thrust Bearing	No
title	B-86
Type	Drawn Cup
UNSPSC	31171512
UPC Code	605790185014
Weight / kgm	0.007
Weight / LBS	0.014
Width	0.375 Inch \| 9.525 Mill.
Width (In.)	0.375 in
Width (mm)	9.53 mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Lily Bearing	B-86	4.05	1	24		KOYO	0.0154	4.05 @ 1
	us.rs-online.com	72061527	5.14	1	293		Koyo		5.14 @ 1
	Zoro	G9141447	5.89	1	40		Koyo	0.03	5.89 @ 1
	sustainablesupply.com	C1678766	8.37	1	In Stock		Koyo	0.03	8.37 @ 1
	factorysupplyoutlet.com	RK28MK	11.15	1	In Stock	25	KOYO		11.15 @ 1
	simsupply.com	ZO-G9141447	12.95	1	22		Koyo		12.95 @ 1
