Lcn 3131-STD LH AL

mpn3131-STD LH AL
brandname: LCN
manufacturername: LCN

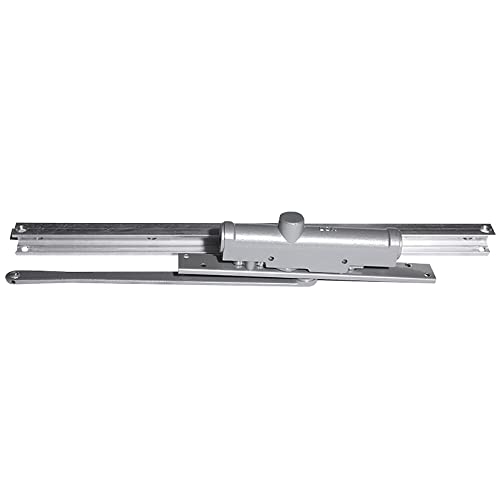

LCN 3131-STD LH AL Standard Track Door Closer Left Hand Aluminum

Brand: Lcn
PartNumber: 3131-STD LH AL
PackageQuantity: 1
Manufacturer: LCN
Label: LCN

Attributes

Key	Value
ADA Compliant	Yes
Alternate Part Number-1	178443
Automatic/Manual	Manual
BAA Qualified	Yes
Base Material	VARIES
Builders Hardware Produ.	Door Closer
Certifications and List.	ANSI Certified
Closer Action	Single Acting
Closer Arm Type	Standard Arm and Track
Closer Fluid	All Weather Fluid
Closer Hold-Open	false
Closer Mounting Style	Concealed Door
Closer Performance	Heavy Duty
Closer Piston Diameter	1-1/8 Inch
Closer Series	3130 Series Concealed C.
Closer Size	1
Closer Type	Standard Arm, Concealed.
Cold Weather Fluid	Yes
Color	Sprayed Aluminum, Alumi.
Color Code	689/US28
Commercial/Residential	Commercial
Country of Origin (subj.	United States
Degree Swing	140 Deg.
Dimension	11-3/4" x 1-3/8" x 3-1/.
Features	Full Complement Bearing.
Finish	Aluminum
Finish Description	Aluminum Painted
Finish Family	Aluminum
For Door Width	Exterior Door Width - S.
Function	STD-Standard Arm
Function Family	Hold Open Door Closer
General Color Family	Metallics
General Material	Steel
Grade	Grade 1
Hand	LH
Hand Orientation	LH
Handing	Left Hand
Hardware Finish Family	Metal
Hazardous Material	No
Hold Open	Without Hold Open
Hold-Open Type	100? Hold Open
Housing Depth	1-3/8"
Housing Height	3-1/4"
Housing Length	11-3/4"
Hydraulic/Pneumatic	Hydraulic
Included Components	Standard Cylinder; Stan.
Interior/Exterior	Interior
Item	Door Closer
Manufacturer Parent	Allegion
Manufacturer Warranty	15 Year Limited Warranty
Material	Cast Iron
Maximum Door Range (deg.	110
Maximum Door Weight	225 lbs.
Minimum Door Thickness	1-3/4 Inch
Mount	Concealed (In Door)
Mounting	Top Mount
Mounting Location	In Door
Pack Size	1
Package Qty	1
Package Volume	0
Product Depth (in.)	4
Product Height	1-3/8 Inch
Product Height (in.)	24
Product Length	8-3/4 Inch
Product Type	Door Closer/Holder/Stop
Product Width	3-1/4 Inch
Product Width (in.)	4.5
Spring Size	1
Standards	Grade 1 - ANSI A156.4; .
Sub-Series	DC_Concealed_Closers_lc.
Type	Concealed Door
UNSPSC	30171514
Warranty	15 Year Limited Warranty

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G9232398	508.0	1	In Stock	8	Lcn		508.0 @ 1
	DK Hardware	3131-STD LH AL	628.65	1	In Stock		LCN	225.0	628.65 @ 1
