Leeson 110042

B00BC94Z6S

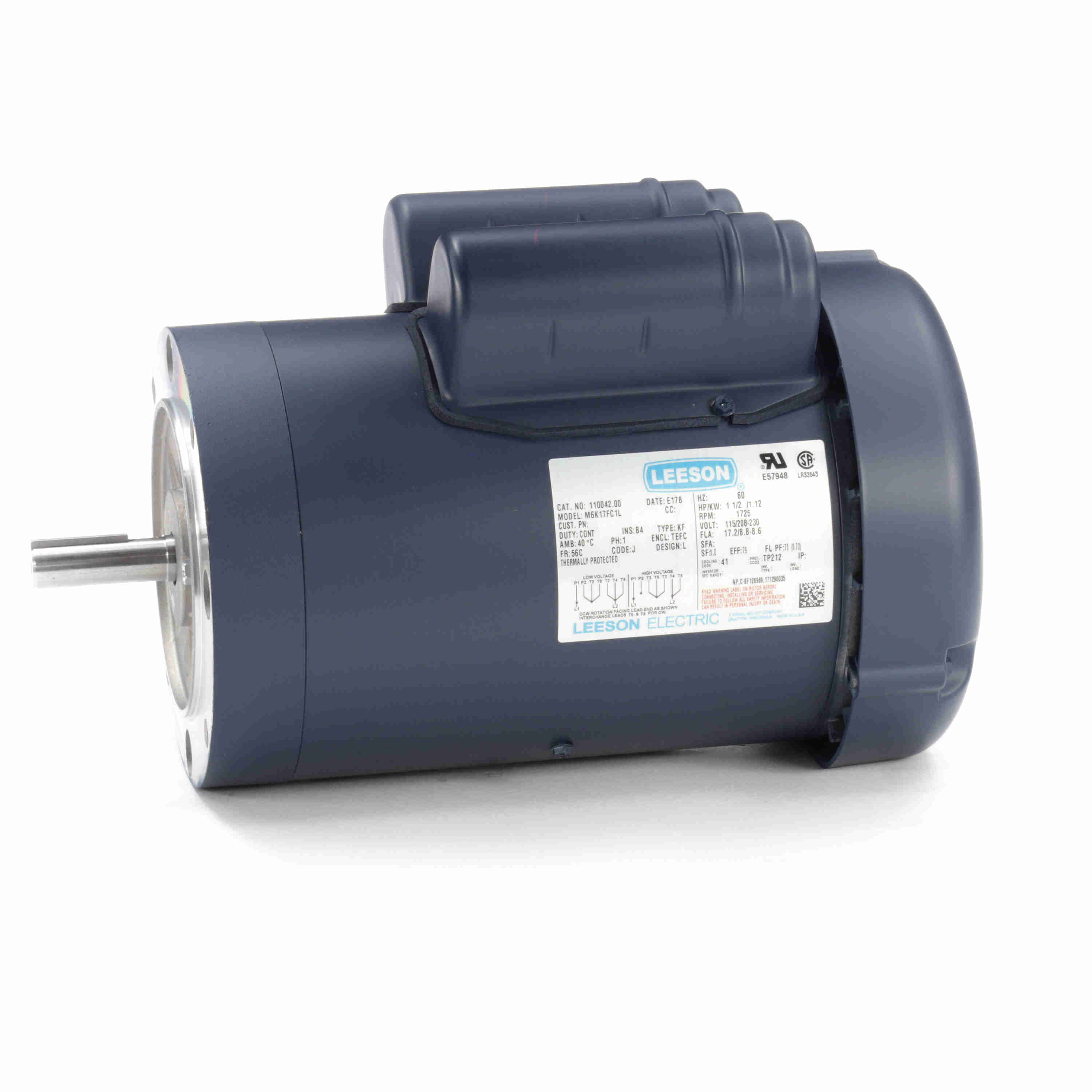

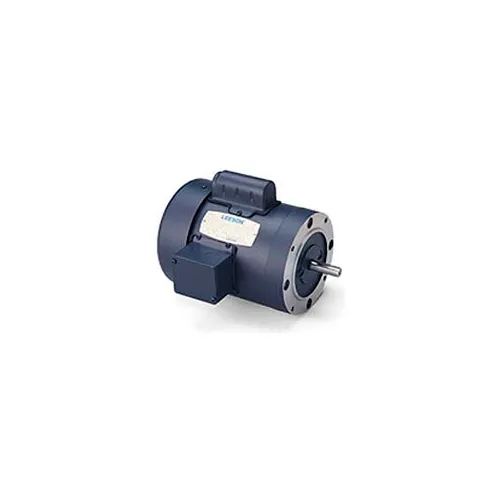

Leeson 110042.00 1 5HP 1725RPM 56 TEFC 115/208-230V 1PH 60HZ

Leeson 110042.00 1 5HP 1725RPM 56 TEFC 115/208-230V 1PH 60HZzoom

Attributes

Key Value
Amperage Rating17.2/8.8 to 8.6 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupM6K17FC1
CompositionSteel
ConstructionRolled Steel
Description:1.5HP..1725RPM.56.TEFC..
Dimensions12.99 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Efficiency79
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight40.00
Family SeriesLeeson Motors, General .
FL Amps17.2/8.8-8.6
FL Efficiency79
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60
Frequency Rating60 Hz
Full Load Current8.6 A
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp, 1.5 hp
HP1.5, 1.50
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number110042.00
KW1.1
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110042.00
MaterialRolled Steel
MFG Part #:110042.00
Model NumberM6K17FC1
Motor TypeCapacitor Start
MountingFOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
NEMA Frame56C
Net Weight40 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.81 "
Overload ProtectionManual
Part Number110042.00
Phase1, 1 ph
Product SeriesGeneral Purpose
Product TypeGeneral Purpose
RotationSelective CCW
RPM1,800 RPM, 1700 - 1800,.
Service Factor1
Shaft Diameter0.625, UL;CSA
Shaft Length1.88
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesCapacitor Start Motors
Speed (RPM)1725
Supplier:LEESON ELECTRIC CORPORA.
TypeGeneral Purpose
UPC:691720007617
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110042415.01In StockLEESON415.0 @ 1
AmazonTPB0773RBDHY543.791In Stock5Leeson Electric543.79 @ 1
thumbzoomMRO Supply2525409577.991In StockLeeson577.99 @ 1
thumbzoomDealers Electric110042.00745.821In StockLeeson43.0745.82 @ 1
thumbzoomGalco110042.00-LEES800.841In StockLeeson40.0800.84 @ 1
us.rs-online.com73397147803.751In StockLeeson803.75 @ 1
thumbzoommotorsandcontrol.comLE-110042.00819.24140Leeson Electric40.0819.24 @ 1
thumbzoomWalker Industrial110042-00928.471In Stock10Leeson928.47 @ 1
kscdirect.comLEE 110042.001005.991In StockLEESON ELECTRIC CORPORATION1005.99 @ 1
thumbzoomGlobal IndustrialWBB2217781026.01In StockLeeson1026.0 @ 1
thumbzoompumpproducts.com110042.001060.031In StockLeeson1060.03 @ 1
thumbzoomRaptor SuppliesAJ2PZV1130.9593231In StockLEESON1130.959323 @ 1
