Leeson 140680.00

mpn140680.00
brandname: Leeson
manufacturername: Leeson

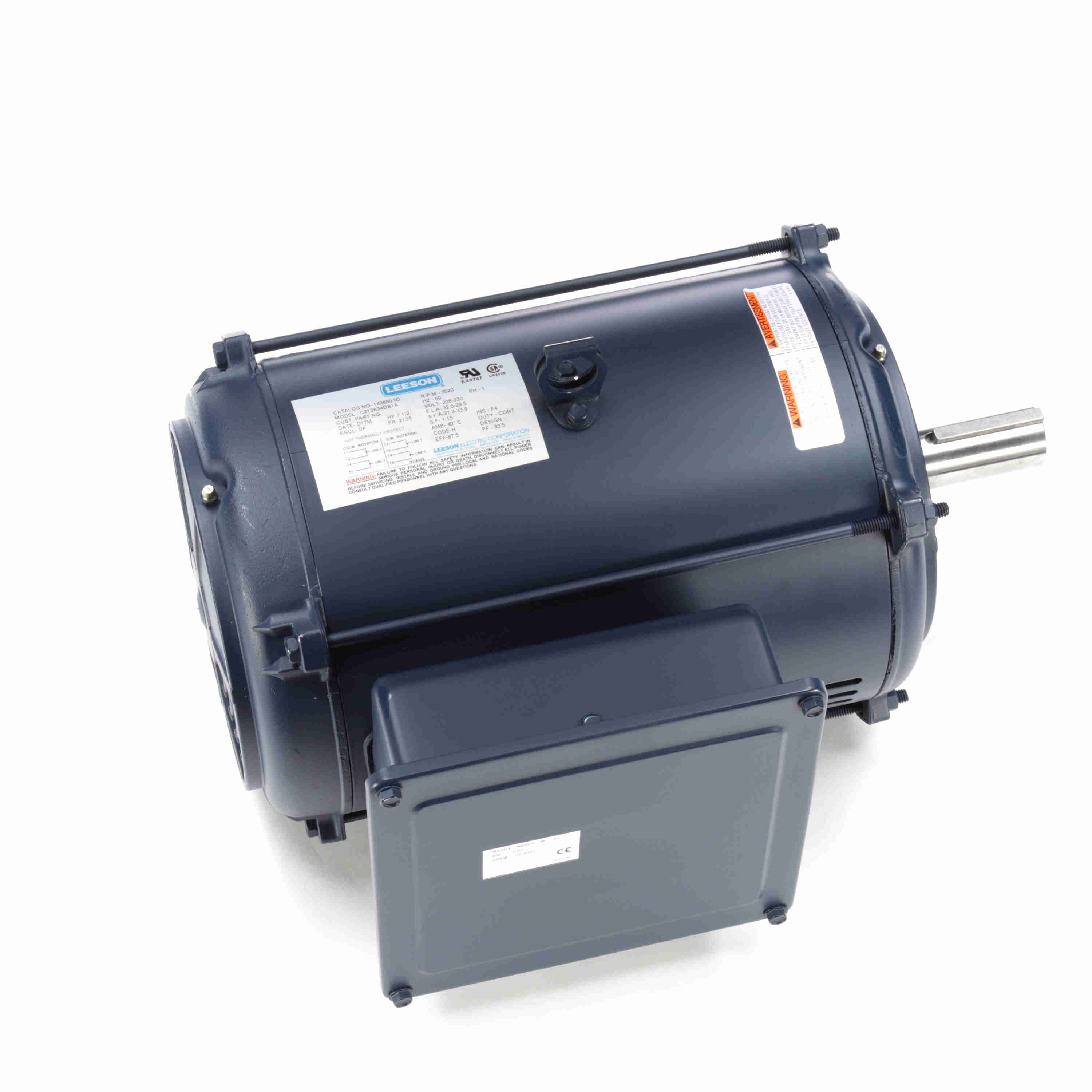

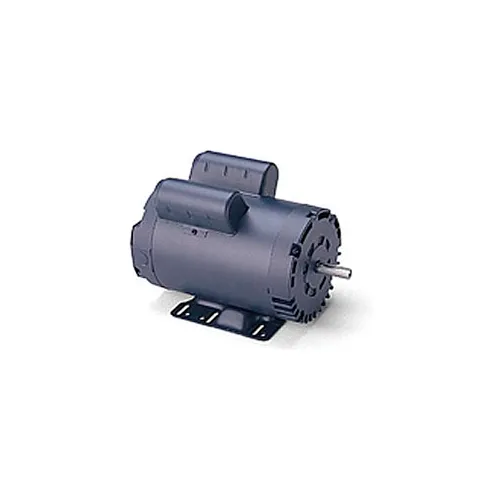

Leeson 140680.00 General Purpose ODP Motor, 1 Phase, 213T Frame, Rigid Mounting, 7 1/2HP, 3600 RPM, 208-230V Voltage, 60Hz Fequency

Brand: Leeson
PartNumber: 140680.00
Model: C213K34DB1A
Size: 1 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Amperage Rating	32.5 to 29.5 A
Amps	32.5-29.5
Application Type	Air Compressor Motors, .
Approvals	CSA, UL
Bearing Type	Ball
Bearings	Ball
Category	Electric Motor
Class/Group	C213K34DB1
Composition	Steel
Construction	Rolled Steel
Country of Origin (subj.	Mexico
Description:	..7 1/2HP..3520RPM.213T.
Dimensions	18.04 in L x 13.09 in W.
Drive End Bearing Size	307
Drive End Bearing Type	Ball
Drive End Flange Type	Standard
Duty Cycle	Continuous
Efficiency	87.5, 87.5%
Enclosure	ODP, Open, Drip Proof
Enclosure Material	Rolled Steel
Enclosure Type	DP (Dripproof), DP
Estimated Weight	112.00
Family Series	Leeson Motors, General .
FL Amps	32.5-29.5
FL Efficiency	87.5
Frame	213T
Frame Material	Rolled Steel
Frequency	60
Frequency Rating	60 Hz
Full Load Current	29.5 A
Gross Weight	0 lbs
Hertz	60
Horsepower	7-1/2 hp, 7.5 hp
HP	7.50, 7-1/2, 7.5
Hz	60
Insulation Class	Class F, F
Item Condition	FACTORY NEW
Item Number	140680.00
KW	5.6
Manufacturer	Leeson Electric, LEESON.
Manufacturer Part Number	140680.00
Material	Rolled Steel
Maximum Ambient Tempera.	40? C
MFG Part #:	140680.00
Model Number	C213K34DB1
Motor Shell Length	11.15"
Motor Type	Capacitor Start
Mounting	Foot Mount, Rigid Base
mounting	Rigid Base
Mounting Type	Foot Mount, Rigid, C-Fa.
NEMA Frame	213T
Net Weight	112 lbs
Nominal Voltage	208 VAC, 240 VAC
Number of Poles	2
Number of Speeds	1
Opp. Drive End Bearing .	206
Opp. Drive End Bearing .	Ball
Overall Length	16.55 ", 18.04"
Overload Protection	None
Part Number	140680.00
Phase	1, 1 ph
Product Series	General Purpose
Product Type	Capacitor Start/Capacit.
Rotation	Selective CCW, Reversib.
RPM	3600, 3400 - 3600, 3520.
Service Factor	1.15
Shaft Diameter	1.375", 1.375, UL;CSA
Shaft Length	3.38", 3.38
Shaft Size	1.38 in Dia x 3.38 in L
Ship Weight	115 lbs.
Special Features	Capacitor Start Motors
Speed (RPM)	3520
Supplier:	LEESON ELECTRIC CORPORA.
Type	General Purpose
UPC:	691720252246
Voltage	208-230, 208V, 230V
Volts	208-230, 208/230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
cshincorporated.com	140680.00	940.24	1	In Stock		Leeson	115.0	940.24 @ 1
electricmotorwholesale.com	140680	966.0	1	In Stock		LEESON		966.0 @ 1
Galco	140680.00-LEES	1050.27	1	In Stock		Leeson	112.0	1050.27 @ 1
motorsandcontrol.com	LE-140680.00	1065.87	1	2		Leeson Electric	112.0	1065.87 @ 1
emotorpro.com	140680.00	1081.91	1	In Stock		Leeson	115.0	1081.91 @ 1
us.rs-online.com	73397052	1082.59	1	In Stock		Leeson		1082.59 @ 1
kscdirect.com	LEE 140680.00	1117.01	1	In Stock		LEESON ELECTRIC CORPORATION		1117.01 @ 1
Dealers Electric	140680.00	1216.47	1	2		Leeson	150.0	1216.47 @ 1
AmazonTP	B0773R7XGY	1217.56	1	In Stock	3	Leeson Electric		1217.56 @ 1
Global Industrial	WBB217567	1229.0	1	In Stock	17	Leeson		1229.0 @ 1
Zoro	G2490799	1259.59	1	In Stock	26	Leeson		1259.59 @ 1
Walker Industrial	140680-00	1275.1	1	In Stock	10	Leeson		1275.1 @ 1
cbtcompany.com	140680.00	1289.36	1	In Stock		Leeson Electric		1289.36 @ 1
Raptor Supplies	AJ2RZU	1658.192094	1	In Stock		LEESON		1658.192094 @ 1
pumpproducts.com	140680.00	2241.6	1	In Stock		Leeson		2241.6 @ 1
