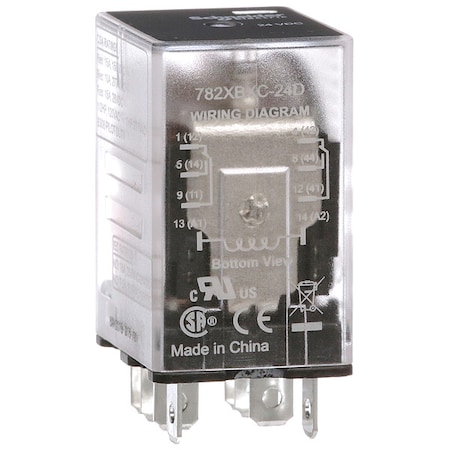

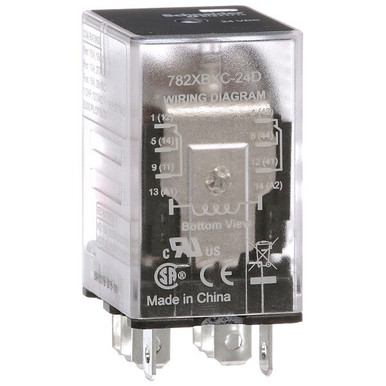

782XBXC-24D, Electromechanical Relay 24VDC 650Ohm 15A DPDT (27.9x21x42.9) mm Socket Power Relay (5 Items)

782XBXC-24D, Electromechanical Relay 24VDC 650Ohm 15A DPDT (27.9x21x42.9) mm Socket Power Relay (5 Items)zoom

Attributes

Key Value
AC Contact Rating - Rel.12A @ 277V, 15A @ 120V
Alternate Part No.528-7880-8
Base Type - Plug In Rel.Square
Body Depth1.54 in
Body Depth - Relay1.1 in
Body Height1.07 in
Body Height - Relay1.4 in
Body Width0.83 in
Body Width - Relay0.83 in
BrandMagnecraft / Schneider .
Coil Resistance650 Ohms
Coil TerminationQuick Connect Terminal,.
Coil TypeNon-Latching, DC
Coil Voltage24 V
Coil Volts24V DC
Contact Current Rating15 A
Contact FormDPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialGold Flashed Silver All.
Contact TerminationPlug
Current Stock397
DC Contact Rating - Rel.12A @ 28V
FeaturesGold Flashed Contacts
Flat Pin Width0.187 in
Gross Weight0.05 lbs
Height26.9 mm
HP @ 120V1/2 hp
HP @ 240V1 hp
In-stock688
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Length40.6 mm
ManufacturerSchneider Electric
Manufacturer Part No.782XBXC-24D
Mounting - RelayPlug In
Mounting StylePlug In, Solder, Socket
Mpn782XBXC-24D
Number of Pins - Relay8
Overall Depth2.1 in
Overall Height - Relay1.64 in
Power Consumption - Rel.1.2 W
ProductPower Relays
Product CategoriesRelays
Product CategoryGeneral Purpose Relays
RoHs StatusRohs
Series782X
SKUZO-G1636756
StandardsCE Certified, CSA Certi.
SubCategoryElectrical
Switching Voltage300 V
Termination StyleQuick Connect Terminal
TypeIce Cube Style Relay, C.
Width13.4 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
gordonelectricsupply.com782XBXC24D8.491In Stock10SQUARE D8.49 @ 1
Mouser528-7880-89.031898Schneider Electric9.03 @ 1
Onlinecomponents.com782XBXC-24D9.033293Schneider Electric9.03 @ 3
Grainger6CWA311.5211690SCHNEIDER ELECTRIC11.52 @ 1
thumbzoomsustainablesupply.comC120973213.031In StockSchneider Electric0.113.03 @ 1
thumbzoomswatee.com782XBXC-24D14.221531Schneider Electric14.22 @ 1
thumbzoomZoroG163675614.291450Schneider Electric0.114.29 @ 1
thumbzoomGalco782XBXC-24D-MGCR14.73115Schneider0.0514.73 @ 1
Future Electronics847589914.97610In StockSchneider Electric14.976 @ 10
AmazonTPB007ICQR3M16.781In Stock2SCHNEIDER ELECTRIC16.78 @ 1
thumbzoomNewark72J439917.71120SCHNEIDER ELECTRIC/LEGACY RELAY17.7 @ 1
thumbzoomRaptor SuppliesCD2KLQ19.5536251In StockSCHNEIDER ELECTRIC19.553625 @ 1
thumbzoomsimsupply.comZO-G163675622.891397Schneider Electric22.89 @ 1
us.rs-online.com7178052227.01352Schneider Electric27.0 @ 1
