Marathon Electric E485

B007ZQN9FK

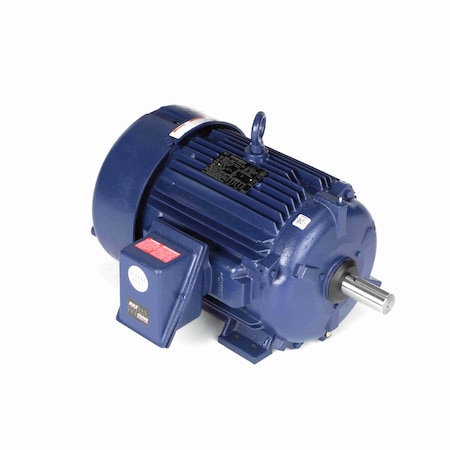

Marathon E485 256T Frame Totally Enclosed Fan Cooled 256TTFNA6529 Automotive Severe Duty Motor, 20 hp, 1800 RPM, 230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, Rigid Base

Marathon E485 256T Frame Totally Enclosed Fan Cooled 256TTFNA6529 Automotive Severe Duty Motor, 20 hp, 1800 RPM, 230/460 VAC, 3 Phase, 1 Speed, Ball Bearing, Rigid Basezoom

Attributes

Key Value
Amps48/24.1
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionCast Iron
Country of Origin (subj.United States
CT Speed Range20:1
duty / condition type:Automotive Duty, Marine.
Duty CycleContinuous
Efficiency0.93
Efficiency %93 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Family SeriesMarathon Electric Motor.
Frame256T
frame material:Cast Iron
frame size:256T
frequency rating:60 Hz
full load current:48.20 / 24.10 A
full load efficiency:93.00 %
Gross Weight0 lbs
Horsepower20 hp
HP20
Hz60
Insulation ClassF
insulation class:F
Inverter DutyYes
ip rating:54
Item NumberE485
ManufacturerMarathon Electric
Manufacturer Model #256TTFNA6529
Manufacturer Part Number256TTFNA6529
Maximum Ambient Tempera.40? C
Model Number256TTFNA6529
motor category:General Severe Duty Mot.
motor horsepower:20 hp, 20.0 hp
motor phase:3 ph
Motor Shell Length12.25"
motor supply voltage:230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid
mounting type:Rigid Base
NEMA Frame256T
Net Weight363 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length25.4", 25.27 "
overall length (c-dimen.25.27 in
Overload ProtectionNone
Phase3
Product SeriesNEMA PREMIUM SEVERE DUTY
Product TypeThree Phase
RotationReversible
RPM1775, 1,800 RPM, 1700 -.
Service Factor1.15
service factor:1.15
Shaft Diameter1-5/8"
shaft diameter:1.63 in
Shaft Length4.2"
Ship Weight425 lbs.
standards met:UL, CSA
synchronous rpm:1800 rpm
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460
weight:363 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comE4851341.01In StockMARATHON1341.0 @ 1
thumbzoomMRO Supply22699121606.521In StockMarathon Electric1606.52 @ 1
AmazonB007ZQN9FK1684.791In Stock42Marathon Electric1684.79 @ 1
thumbzoomemotorpro.comE4851926.561In StockMarathon425.01926.56 @ 1
thumbzoomGalcoE485-MARA2069.01In StockMarathon Electric363.02069.0 @ 1
thumbzoomZoroG25335692156.71In StockMarathon2156.7 @ 1
thumbzoomNational Supply NetworkB8698262213.981In StockMARATHON MOTORS2213.98 @ 1
thumbzoomGlobal IndustrialWBB8698262215.01In Stock17Marathon Motors2215.0 @ 1
thumbzoommotionindustries.com028532182298.861In StockMarathon Electric2298.86 @ 1
kirbyrisk.com17936742754.211In StockMarathon2754.21 @ 1
