Marathon Y585

mpnY585
brandname: Marathon
manufacturername: Marathon

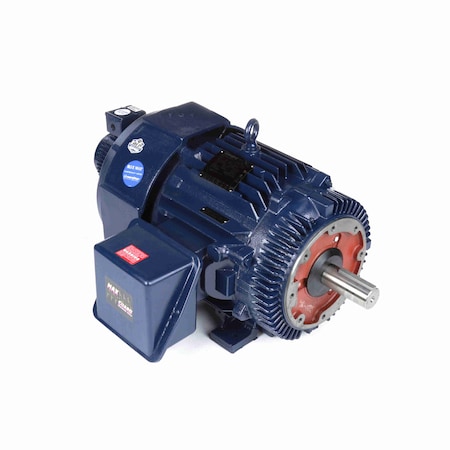

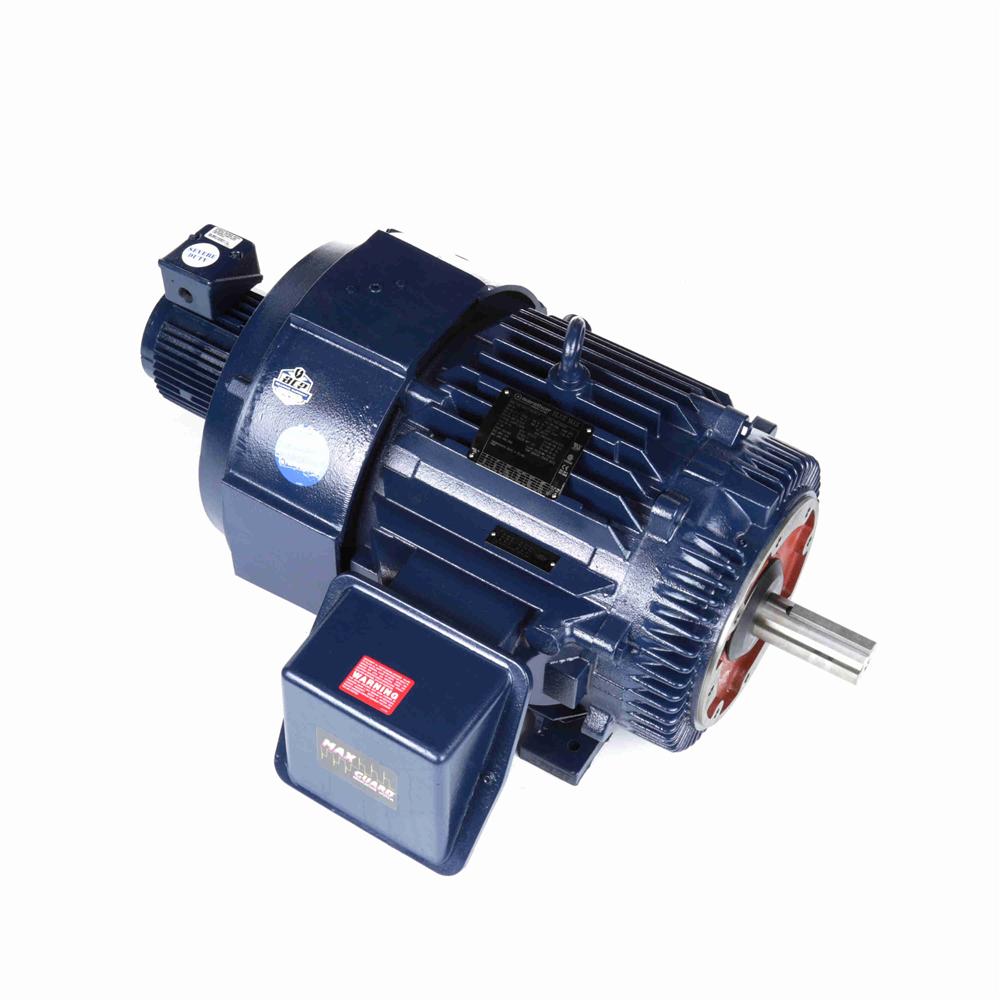

Marathon Y585 Inverter Duty Motor

Marathon Y585 Inverter Duty Motor

zoom

Brand: Marathon
PartNumber: Y585
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Alternate Mfr Part Numb.	364THFS8391
Amps	107/53.5
Approvals	CE, CSA, UL
Bearing Type	Ball
Bearings	Ball
Comments	Separate power supply r.
Composition	Cast Iron
Country of Origin (subj.	United States
CT Speed Range	2000:1
Duty Cycle	Continuous
Efficiency	0.91
Enclosure	Totally Enclosed Blower.
Enclosure Material	Iron
Enclosure Type	TEBC (Totally Enclosed .
Family Series	Marathon Electric Motor.
Frame	364TC
Gross Weight	0 lbs
Horsepower	40 hp
HP	40
Hz	60
Insulation Class	H
Inverter Duty	Yes
Item Number	Y585
Manufacturer	Marathon Electric
Manufacturer Model #	364THFS8391
Manufacturer Part Number	364THFS8391
Maximum Ambient Tempera.	40? C
Model Number	364THFS8391
Motor Shell Length	13.5"
Mounting	Base
Mounting Orientation	Horizontal
Mounting Type	C-Face Footed
Net Weight	1011 lbs
Number of Speeds	1
Overall Length	42.67 ", 42.67"
Overload Protection	Thermostat
Phase	3
Product Series	HIGH PERFORMANCE INVERT.
Product Type	Three Phase
Rotation	Reversible
RPM	1,200 RPM, 1200, 1180
Service Factor	1
Shaft Diameter	2-3/8"
Shaft Length	5.62"
Ship Weight	1011 lbs.
Voltage	230/460
Voltage (AC)	230 VAC, 460 VAC
Volts	230, 460
