Marathon Industries 284TSTFNA6502

B0042G9DM4

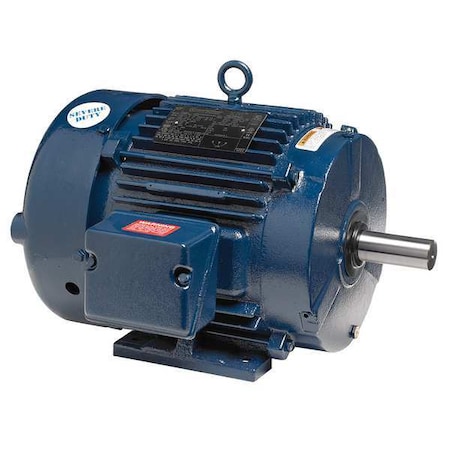

Severe Duty Mtr 3-Ph TEFC 25 HP

Severe Duty Mtr 3-Ph TEFC 25 HPzoom

Attributes

Key Value
CC NumberCC003A
ClassificationBlue Chip Severe Duty A.
CompositionCast Iron
Country of Origin (subj.United States
DutyContinuous
Efficiency %93 %
EnclosureTEFC, Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame284TS
Frame MaterialCast Iron
Frame RemarksRigid
Full Load Amps23.1
Gross Weight0 lbs
Horsepower25 hp
HP25
Hz60
IncludesMax Guard Insulation
Ins. ClassF
ItemSevere Duty Motor
Item ConditionFactory New
Item Number284TSTFNA6502
Kilowatts18.7 kW
Length Less Shaft21-1/2"
ManufacturerMarathon Electric
Manufacturer Part NumberE660
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeFooted
Nameplate RPM3550
NEMA Frame284TS
Net Weight653 lbs
No. of Speeds1
Nominal Efficiency94.5%
Nominal Voltage575 VAC
Overall Length25"
Phase3
RPM3600, 3,558 RPM
RPM Group3001-3600
RPM Range3001-3600
Service Factor1.15
Shaft Dia.1-5/8"
Shaft Length3-7/16"
StandardsUL (E49747), CSA (LR202.
Voltage575
Voltage (AC)575 VAC
Voltage Compatibility575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG19957822285.191In Stock25Marathon Motors2285.19 @ 1
thumbzoomGalco284TSTFNA6502-MARA2435.081In StockMarathon Electric653.02435.08 @ 1
thumbzoomDealers Electric284TSTFNA65023096.021In StockMarathon Electric653.03096.02 @ 1
thumbzoompumpproducts.com284TSTFNA65023845.321In StockMarathon3845.32 @ 1
