Martin Sprocket 1 C 105 SF

B00BC7R6JI

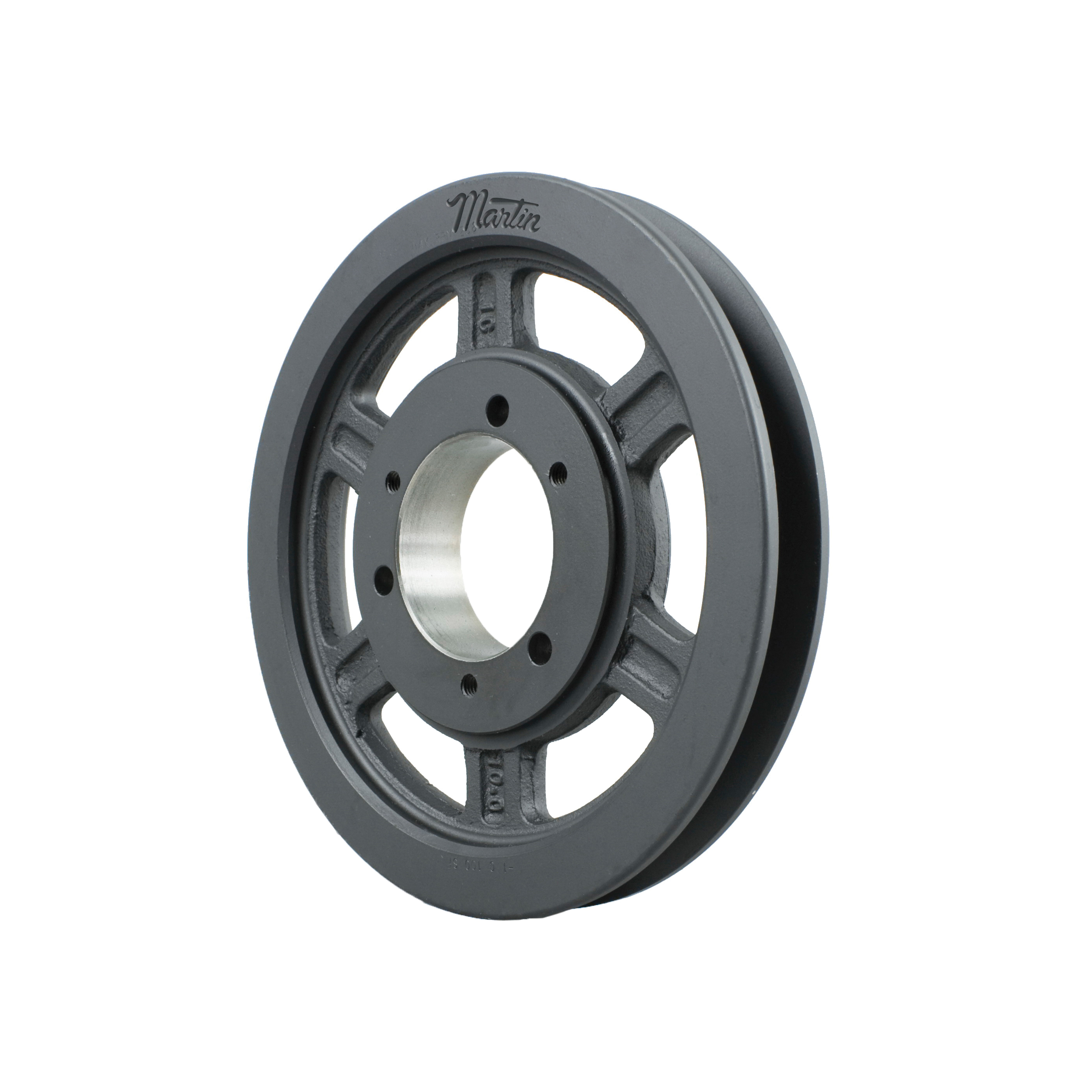

Martin Sprocket 1 C 105 SF CONVENTIONAL QD SHEAVE

Martin Sprocket 1 C 105 SF CONVENTIONAL QD SHEAVEzoom

Attributes

Key Value
Belt Cross SectionC
belt section size:C
Bore TypeBushed
bore type:QD Bushed
Bushed ForSF
bushing bore range:0.5000 to 2.9375 in
Bushing Maximum Bore Si.2.3125
Bushing MountStandard ; Reverse
bushing series:SF
Bushing StyleQD
Length Through Bore2.0625 "
manufacturer upc number:697950084879
MaterialCast Iron
material:Cast Iron
mounting type:Reversible, STD
Number of Grooves1
Outer Diameter10.9 in
Outside Dia10.900"
overall width:1-3/8 in
Package Quantity1
Pitch Diameter10.5 "
pitch diameter:10.5000 in
pulley construction:Arm / Spoke
Sheave ConstructionArm / Spoke
sheave drawing type:C
Sheave Face Width1.375 "
Sheave TypeConventional
storage dimension heigh.1.875 in
storage dimension lengt.11.9375 in
storage dimension width:11.9375 in
UPC Code697950084879
Weight14.6 lbs
weight:14.6 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com72478931233.061In StockMartin Sprocket & Gear14.6233.06 @ 1
thumbzoommotionindustries.com00714844236.141In StockMartin236.14 @ 1
thumbzoomMRO Supply253718243.311In StockMartin Sprocket243.31 @ 1
thumbzoomPurvis1 C 105 SF254.141In StockMartin254.14 @ 1
thumbzoomZoroG3323359300.991In StockMartin Sprocket & Gear300.99 @ 1
