MARTIN D100S60

B00452UIYM

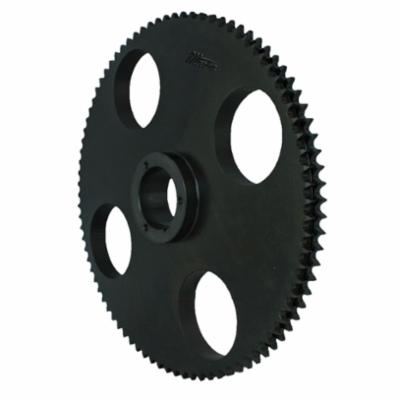

Martin Roller Chain Sprocket, Split Taper Bushed, Type B Hub, Double Strand, 100 Chain Size, For S2 Bushing, 1.25" Pitch, 60 Teeth, 4.1875" Max Bore Dia., 24.6" OD, 6.375" Hub Dia., 0.669" Width

Martin Roller Chain Sprocket, Split Taper Bushed, Type B Hub, Double Strand, 100 Chain Size, For S2 Bushing, 1.25" Pitch, 60 Teeth, 4.1875" Max Bore Dia., 24.6" OD, 6.375" Hub Dia., 0.669" Widthzoom

Attributes

Key Value
bore type:Bushed
bushing bore range:1-11/16 to 4-1/4 in
bushing size:S1
bushing type:Split Taper
caliper diameter:23.1342 in
chain / sprocket type:Standard Roller Chain
chain number & pitch:100 / 1-1/4 in
hardened teeth:Non-Hardened Teeth
length through bore:3.3125 in
manufacturer upc number:697950209197
MaterialSteel
material:Steel
number of hubs:1
number of strands acros.2
Number Of Teeth60
number of teeth:60
Outside Dia24.601"
outside diameter:24.6010 in
overall width:4-3/4 in
Pitch1.250 in.
pitch diameter:23.8842 in
pitch type:Single
storage dimension heigh.3.3125 in
storage dimension lengt.24.6010 in
storage dimension width:24.6010 in
surface treatment:Protective Coating
tooth width:0.669 in
weight:125 lbs
width across tooth sets:2.077 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB00452UIYM1481.011In StockMartin1481.01 @ 1
thumbzoomMRO Supply2561322122.491In StockMartin Sprocket2122.49 @ 1
thumbzoomindustrialzone.comD100S602159.381In StockMartin1.02159.38 @ 1
thumbzoommotionindustries.com021683532631.181In StockMartin2631.18 @ 1
thumbzoomPurvisD100S602643.81In StockMartin2643.8 @ 1
